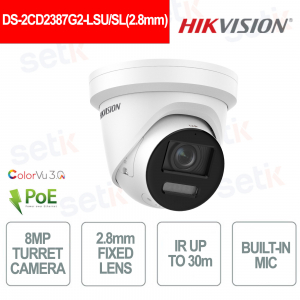

DS-2CD2387G2-LSU/SL2.8mm) – 2.8mm 8MP FIXED LENS TURRET CAMERA - COLORVU - ARTIFICIAL INTELLIGENCE
The Hikvision DS-2CD2387G2-LSU/SL(2.8mm) is an 8MP IP camera with ColorVu technology, designed to offer clear, color images 24/7 even in low light conditions. Thanks to the F1.0 aperture, 130 dB WDR and 1/1.2” CMOS sensor, it guarantees superior image quality and clear vision in any situation. Equipped with a strobe light, built-in acoustic warning and AI video analytics for the recognition of people and vehicles, it ensures active and intelligent protection, ideal for residential and professional contexts.
Main features:
- 8 MP resolution (3840 × 2160) with 1/1.2” CMOS sensor
- 2.8mm fixed optics with 102° horizontal field of view
- 24/7 color vision with ColorVu technology and F1.0 aperture
- WDR 130 dB for clear images against strong backlighting
- AI detection of people and vehicles based on deep learning
- Two-way audio and integrated light/sound alarm
- IP67 resistance against dust and water
Further details
Equipped with a 2.8mm fixed lens, it guarantees a 102° horizontal field of view, perfect for monitoring large areas with a single device. The F1.0 aperture allows for more light to be captured, improving image quality even in the dark.
With a 1/1.2” Progressive Scan CMOS sensor and 8 MP (3840×2160) resolution, this camera offers ultra-high definition images, supporting H.265+ video compression for optimal savings in bandwidth and storage space.
ColorVu technology ensures 24/7 color images, even in low light, thanks to the supplementary white light up to 30 meters and the sensor with a minimum sensitivity of 0.0005 Lux. Every detail remains visible naturally, without video noise or distortion.
The artificial intelligence (AI) feature enables automatic recognition of people and vehicles , improving alarm accuracy and reducing false positives. It also includes facial detection and advanced analytics such as line crossing, intrusion, and scene changes.
It features a 10/100M RJ45 Ethernet interface, a microSD slot up to 512GB , audio and alarm output , and a built-in microphone and speaker for two-way communication. The IP67-rated metal body is water and dust resistant, making it suitable for both indoor and outdoor installations.
The two-way audio system with ambient noise reduction provides clear and immediate communication. It supports multiple formats (G.711, AAC, MP3) and integrates a 95 dB audible siren to warn of intrusion attempts.
Compatible with major network protocols ( TCP/IP, HTTP, HTTPS, RTSP, FTP, SNMP, ONVIF ), it supports up to 6 simultaneous streams and management via Hikvision platforms such as iVMS-4200, Hik-Connect and Hik-Central . It includes advanced security features such as HTTPS encryption, IP control and TLS authentication .
%20dimensioni.jpg)
Technical data sheet
| DS-2CD2387G2-LSU/SL(2.8mm) | |
| Room | |
| Image Sensor | 1/1.2″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color：0.0005 Lux @ (F1.0, AGC ON)，0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 Color imaging |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8mm |
| Focal Length & FOV | horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° |
| Lens Mount | M mount |
| Iris Type | Fixed |
| Openings | F1.0 |
| Depth of Field | 4 m to ∞ |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50Hz: 25fps (1280×720, 640×480, 640×360) |
| Third Stream |
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | |
| Simultaneous Live View |
Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser |
Plug-in required live view: IE 10, IE 11 |
| Image | |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR | ≥ 52 dB |
| Privacy Mask |
8 programmable polygon privacy masks |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Yes |
| Built-in Speaker | 1.5 W, 10 cm: 95 dB |
| Audio | 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection |
| Linkage | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power |
12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, |
| Material |
Cover: Metal, main body: Metal |

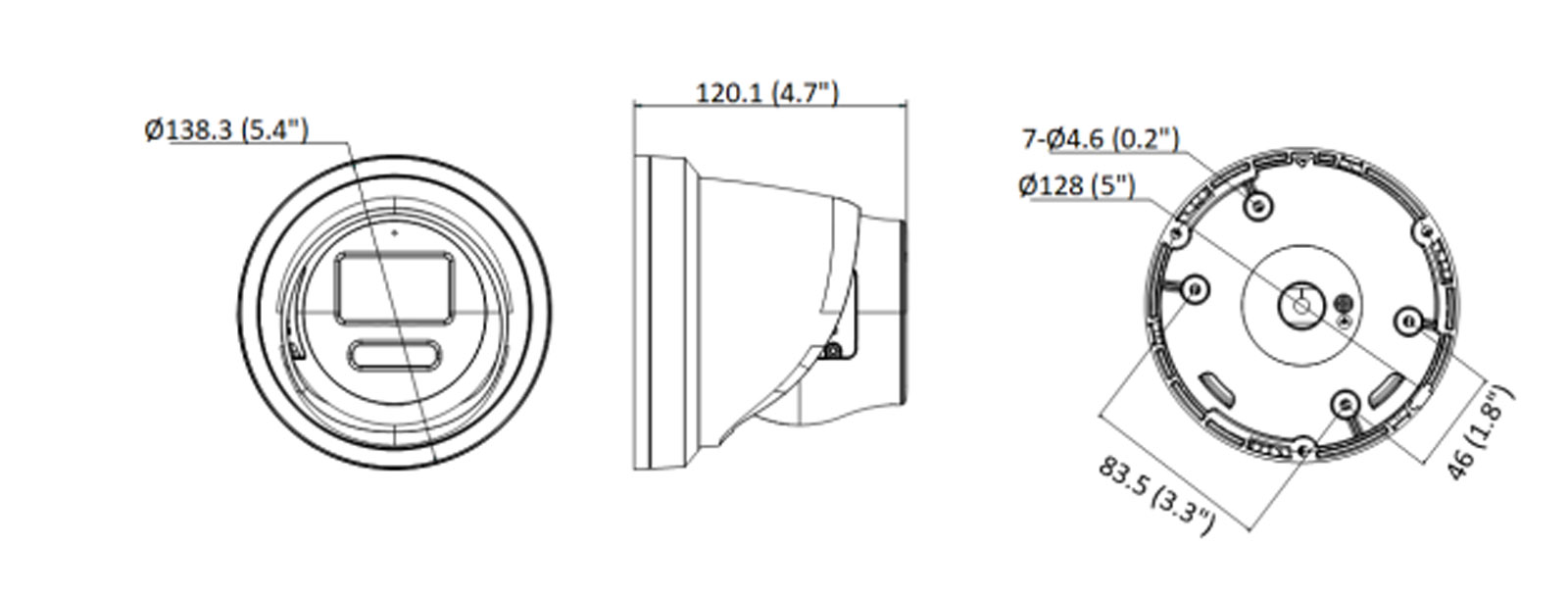

| Dimension |
Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7") |
| Package Dimension |
170mm × 170mm × 150mm (6.7" × 6.7" × 5.9") |
| Weight |
Approx. 900 g (2 lb.) |
| With Package Weight |
Approx. 1190 g (2.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages |
| General Function |
Anti-flicker, heartbeat, mirror, password reset via email, pixel counter |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC (KN32: 2015, KN35: 2015) |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013 |
