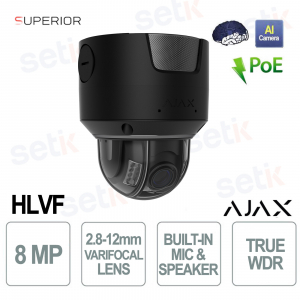

Ajax HLVF 8MP Dome Camera Black – AI Security with IR and P-Iris - Ajax

Ajax HLVF 8MP Dome Camera Black – AI Security with IR and P-Iris - Ajax

 
Optic calculation
ANUNCIOS nuevo

126286.214.BL1 # 126286 | Ajax Superior DomeCam HLVF 8MP black is a professional dome camera with a 2.8–12 mm P-Iris motorized lens and autofocus, designed to deliver sharp images thanks to the CMOS sensor and True WDR that guarantees high quality in any lighting conditions. Hybrid IR and white light illumination allows clear footage up to 40 m at night, while the integrated artificial intelligence accurately recognizes people, vehicles, and animals. Equipped with a dual microphone, speaker, alarm inputs/outputs, and ONVIF/RTSP support, it ensures full integration with professional systems and ultra-smooth streaming via JetSparrow technology. Ideal for indoor/outdoor installations, it offers advanced security with TLS encryption, mTLS authentication, and anti-sabotage protection. Ajax

Technical Data Sheet

referencia : 126286.214.BL1

brand : Ajax Systems

EAN: 4823114073236

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126286.214.BL1 | AI WIRED IP SECURITY CAMERA, 2.8-12mm VARIFOCAL LENS WITH P-IRIS, HYBRID LIGHTING, TRUE WDR, BUILT-IN MICROPHONE AND SPEAKER, AUDIO AND ALARM INPUTS/OUTPUTS, AND POE/12V.


Ajax

The Ajax Superior DomeCam HLVF, 126286.214.BL1, 8MP black is a professional dome camera designed to ensure extremely clear images thanks to the 2.8–12 mm varifocal motorized lens with P-Iris system and True WDR, which ensures high quality even in difficult lighting conditions. The high-resolution CMOS sensor allows recordings up to 2880×1520 px, while the hybrid IR and white light illumination guarantees night visibility up to 40 m. The camera integrates advanced AI for the recognition of people, vehicles and animals, as well as microphones and speakers for two-way communication. Compatible with ONVIF/RTSP, it offers fast and secure streaming thanks to JetSparrow technology, ensuring a reliable system for indoor and outdoor installations.

Main specifications:

- 8 MP resolution up to 3840 × 2160 px

- 2.8–12 mm motorized lens with autofocus and P-Iris

- IR illumination up to 40 m and white light up to 25 m

- AI for recognition of people, vehicles and animals

- Integrated audio: 2 microphones + speaker

- ONVIF/RTSP support and JetSparrow technology for fast streaming

- Advanced security with TLS, mTLS encryption and sabotage protection

Further details

✅ Advanced Optics :
Motorized varifocal 2.8–12 mm lens with P-Iris system and autofocus, designed to maintain maximum sharpness, contrast and depth even in difficult lighting conditions.
✅ 8MP Resolution:
High-quality CMOS sensor with output up to 3840 × 2160 px , True WDR and always detailed footage both indoors and outdoors.
✅ Built-in microphones:
Dual microphones with noise reduction and echo cancellation for clear audio capture, useful for real-time identification and verification.
✅ Built-in speaker :
Speaker for two-way communication, audible alerts and automatic activation in case of detection or programmed scenarios.
✅ AI Motion Detection:
Intelligent motion detection thanks to an AI system that can instantly identify changes in the scene.
✅ AI Object Detection:
Artificial intelligence distinguishes between people, vehicles, and animals, ensuring more accurate alerts and drastically reducing false positives.
✅ Professional network:
ONVIF/RTSP support, TLS encrypted streaming, PoE , stable connection up to 100 Mbps full-duplex and integration with Ajax and third-party VMS.
✅ Built-in alarm:
Alarm inputs and outputs to activate sirens, automations or external systems, with video verification of events and synchronization with security mode.
✅ JetSparrow:
Proprietary Ajax technology for ultra-fast streaming, low latency, smooth archive navigation and instant access to recordings.
✅ Anti-sabotage protection:
Advanced security with mTLS authentication, TLS encryption, session controls, tamper protection, and NDAA-compliant components.

Technical data sheet

126286.214.BL1
Room Image sensor
8 MP CMOS, 1/1.8" type
Lens focal length
2.8–12.0 mm
Maximum openings
f/1.4–2.3
Lens iris type
P-Iris
Lens focal type
Varifocal
Field of view
horizontal: 47°–110°
vertical: 26°–56°
diagonal: 54°–135°
Maximum illumination distance
  • white LED: up to 25 m
  • IR LED: up to 40 m
  • white LED: up to 82 ft
  • IR LED: up to 131 ft
Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances, both near and far, in low-light conditions.
Video Resolution
  • 8 MP (3840 × 2160)
  • 6 MP (3072 × 1728)
  • 5 MP (2944 × 1656)
  • 5 MP (2880 × 1620)
  • 5 MP (2592 × 1944)
  • 4 MP (2688 × 1520)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 25 fps
Image rotation
0°, 90°, 180°, 270°
Video codec
H.265, H.264, MJPEG
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
2
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G.711 µ-law, G.711 A-law, G.726, G.722
Speaker Built-in speaker
The camera supports two-way communication.
Output speaker power
3 W
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Line crossing
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Alarm port Lines for third-party devices
2
Alarm IN type
NO, NC
Configured in Ajax apps.
Alarm IN max voltage
5 V⎓
Alarm OUT operating range
48 V⎓, 300 mA
Audio port Lines for third-party devices
2
Audio IN type
external microphone input
Supports active microphones with a built-in preamplifier.
Audio IN settings
gain
enable/disable
Configured in Ajax apps.
Audio OUT type
speaker output
Supports connection of an external speaker (min. 3 W, ≥ 4 Ω). When an external speaker is connected, the internal one is disabled.
Key features Video transmission
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Focal length change
autofocus
manual focus control
Configured in Ajax apps.
Visual verification of system alarms
Ajax systems allow users to configure a scenario in which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop Ajax PRO app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS
Encrypted connection for data protection
Authentication
via Ajax Cloud
Secure Boot
Protection against firmware spoofing
OTA signature verification
Secure automatic firmware update
Accelerometer
Alerts on attempts to move or dismount the camera
Power supply Standard PoE
802.3at/af (Class 4)
External power connector type
screw terminal connector (2 pin)
PoE power consumption
  • maximum: up to TBC W
  • average: up to TBC W
Power supply unit
12 V⎓ ± 20%, 1.9 A
Enclosures

Dimensions:
136 × 165 × 136 mm
5.35″ × 6.48″ × 5.35″
Weight
TBC g
TBC lb
Operating temperature range
from −40 °C to +60 °C
from −40 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65, IK10
Colors Black
Complete set Superior DomeCam HLVF (8 Mp)
Installation template
Installation kit
3 screw terminal connectors
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
