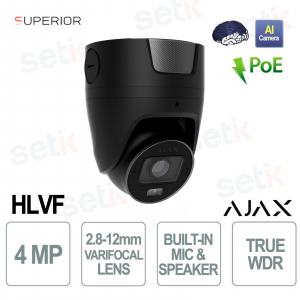

Ajax HLVF 4MP Turret Camera – AI Security with Motorized Lens

Ajax HLVF 4MP Turret Camera – AI Security with Motorized Lens

 
Optic calculation
ANUNCIOS nuevo

126280.197.BL1 126280 | Ajax Superior TurretCam HLVF 4MP black is a professional security camera equipped with a 2.8–12 mm varifocal motorized lens with P-Iris system and autofocus, designed to ensure extremely clear images even in complex lighting conditions thanks to True WDR and a high-resolution CMOS sensor. Hybrid illumination with infrared up to 60 m and white light up to 40 m ensures excellent night visibility, while the integrated artificial intelligence recognizes people, vehicles, and animals for more precise security. The presence of a dual microphone, speaker, alarm inputs/outputs, and ONVIF/RTSP support makes integration with professional systems simple and complete. With JetSparrow technology for fast streaming and advanced protections such as TLS and mTLS, this camera is ideal for indoor and outdoor installations that require maximum reliability. Ajax

Technical Data Sheet

referencia : 126280.197.BL1

brand : Ajax Systems

EAN: 4823114073175

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126280.197.BL1 | AI WIRED IP SECURITY CAMERA, 2.8-12mm VARIFOCAL LENS WITH P-IRIS, HYBRID LIGHTING, TRUE WDR, BUILT-IN MICROPHONE AND SPEAKER, AUDIO AND ALARM IN/OUTPUT, AND POE/12V.


Ajax

The Ajax Superior TurretCam HLVF, 126280.197.BL1, 4MP black is a professional security camera designed to deliver extremely detailed images thanks to the 2.8–12 mm motorized varifocal lens with P-Iris system and autofocus, supported by True WDR for impeccable quality even in difficult lighting conditions. The 4MP CMOS sensor guarantees clear footage up to 2880×1520 px, while the hybrid IR and white light illumination ensures night visibility up to 60 m. Equipped with advanced AI for the recognition of people, vehicles and animals, it integrates dual microphones, speakers, alarm inputs/outputs and ONVIF/RTSP support for full compatibility with professional systems. JetSparrow technology allows fast and smooth streaming, while anti-sabotage protection with TLS/mTLS encryption guarantees the highest security in every indoor/outdoor installation.

Main specifications:

- 4MP resolution with CMOS sensor and True WDR

- 2.8–12 mm motorized lens with P-Iris and autofocus

- IR illumination up to 60 m and white light up to 40 m

- Dual microphone and integrated speaker

- AI for people, vehicle and animal recognition

- ONVIF/RTSP support and JetSparrow streaming

- Anti-tamper protection with TLS, mTLS and anti-tamper system

Further details

✅ Advanced Optics :
2.8–12mm motorized varifocal lens with P-Iris system and autofocus, designed to ensure maximum sharpness, depth control and precision even in complex scenes.
✅ 4MP Resolution:
High definition CMOS sensor with quality up to 2688 × 1520 px and True WDR technology, for clear and balanced images both in strong backlight and in dark environments.
✅ Built-in microphones:
Dual microphones with noise reduction and echo cancellation for clear, usable audio in audits, communications, and security scenarios.
✅ Built-in speaker :
Speaker for two-way communication, audible alerts and automatic activation in case of detection or programmed scenarios.
✅ AI Motion Detection:
High-precision motion detection based on intelligent algorithms that dramatically reduce false alarms, improving system reliability.
✅ AI Object Detection:
Advanced artificial intelligence capable of distinguishing people, vehicles, and animals, providing targeted notifications and increasing surveillance effectiveness.
✅ Professional network:
ONVIF/RTSP support, TLS encrypted streaming, PoE , stable connection up to 100 Mbps full-duplex and integration with Ajax and third-party VMS.
✅ Built-in alarm:
Dedicated inputs and outputs for connecting sirens, external devices or automations, with the possibility of immediate video verification of detected events.
✅ JetSparrow:
Proprietary Ajax technology for ultra-fast streaming, low latency, smooth archive navigation and instant access to recordings.
✅ Anti-sabotage protection:
Advanced security with mTLS, TLS encryption, session control, NDAA-compliant components, and built-in tamper protection.

Technical data sheet

126280.197.BL1
Room Image sensor
4 MP CMOS, 1/1.8" type
Lens focal length
2.8–12.0 mm
Maximum openings
f/1.4–2.3
Lens iris type
P-Iris
Lens focal type
Varifocal
Field of view
horizontal: 47°–110°
vertical: 26°–56°
diagonal: 54°–135°
Maximum illumination distance
  • white LED: up to 40 m
  • IR LED: up to 60 m
  • white LED: up to 131 ft
  • IR LED: up to 196 ft
Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances, both near and far, in low-light conditions.
Video Resolution
  • 4 MP (2688 × 1520)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 25 fps
Image rotation
0°, 90°, 180°, 270°
Video codec
H.265, H.264, MJPEG
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
2
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G.711 µ-law, G.711 A-law, G.726, G.722
Speaker Built-in speaker
The camera supports two-way communication.
Output speaker power
3 W
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Line crossing
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Alarm port Lines for third-party devices
2
Alarm IN type
NO, NC
Configured in Ajax apps.
Alarm IN max voltage
5 V⎓
Alarm OUT operating range
48 V⎓, 300 mA
Audio port Lines for third-party devices
2
Audio IN type
external microphone input
Supports active microphones with a built-in preamplifier.
Audio IN settings
gain
enable/disable
Configured in Ajax apps.
Audio OUT type
speaker output
Supports connection of an external speaker (min. 3 W, ≥ 4 Ω). When an external speaker is connected, the internal one is disabled.
Key features Video transmission
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Focal length change
autofocus
manual focus control
Configured in Ajax apps.
Visual verification of system alarms
Ajax systems allow users to configure a scenario in which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop Ajax PRO app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS
Encrypted connection for data protection
Authentication
via Ajax Cloud
Secure Boot
Protection against firmware spoofing
OTA signature verification
Secure automatic firmware update
Accelerometer
Alerts on attempts to move or dismount the camera
Power supply Standard PoE
802.3at/af (Class 4)
External power connector type
screw terminal connector (2 pin)
PoE power consumption
  • maximum: up to 12 W
  • average: up to 6 W
Power supply unit
12 V⎓ ± 20%, 1.5 A
Enclosures

Dimensions:
136 × 162 × 136 mm
5.35″ × 6.38″ × 5.35″
Weight
1,300 g
2,866 lb
Operating temperature range
from −40 °C to +60 °C
from −40 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65, IK10
Colors Black
Complete set Superior TurretCam HLVF (4 Mp)
Installation template
Installation kit
3 screw terminal connectors
Quick start guide
Warranty 24 months
