HAC-HFW1500RM-IL-A-S3 | 5MP 2.8mm FIXED LENS CAMERA - SMART DUAL LIGHT

The Dahua HFW1500RM-IL-A-S3 2.8mm is a 5MP bullet camera designed to ensure sharp, detailed images thanks to its wide 113° viewing angle and Starlight technology, which ensures excellent performance even in low-light conditions. The Smart Dual Light system intelligently switches between white light and infrared, ensuring clear footage up to 30 meters without generating light pollution. The built-in microphone provides clear audio transmission via coaxial cable, while 3DNR processing and the Super Adapt algorithm automatically optimize video quality. The IP67- certified metal body makes it ideal for reliable and durable outdoor installations.
Main specifications:
- 2.8mm optics with wide viewing angle: 113.3°
- 5MP resolution (2880×1620) with Starlight technology
- Built-in microphone with audio transmission over coaxial cable
- Smart Dual Light system with IR illumination and white light up to 30 m
- IP67 protection for outdoor use
- 3DNR technology and Super Adapt algorithm for optimized images
Further details

Technical data sheet
| HAC-HFW1500RM-IL-A-S3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
5 MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.01 lux@F1.6 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>65 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
IR: 30 m (98.43 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Car |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (Multi-core light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Focus |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Openings |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 113.3°; V: 62.1°; D: 134.3° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.8 m (2.62 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
CVI: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
BLC; HLC; DWDR; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto; White balance area |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Car |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Mode |
Smart IR&WL; WL Mode; IR Mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pick-up Distance |
8 m (26.25 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in Mic | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Camera | CVI; TVI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC ± 30% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max 4.3 W (12 VDC, WLED on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +55 °C (–40 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +55 °C (–40 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

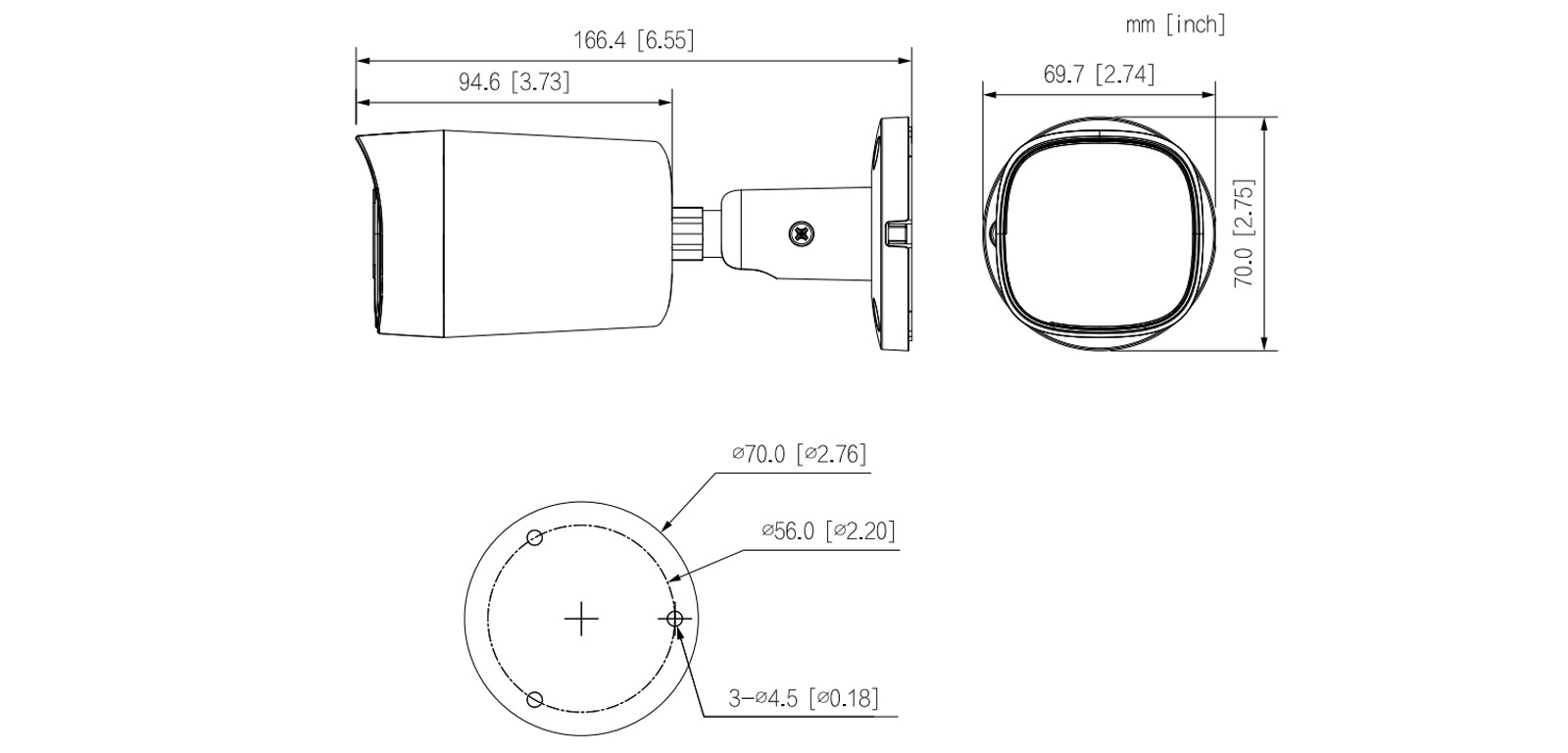

Product Dimensions |
166.4 mm × 69.7 mm × 70.0 mm (6.55" × 2.74" × 2.75") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.35 kg (0.77 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.45 kg (0.99 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
