IPC-HFW5459E1-ZE-IL - is a WizMind 4MP bullet camera designed for advanced video surveillance, equipped with a 1/1.8" CMOS sensor and 2.7–12 mm motorized varifocal lens that allows maximum framing flexibility. Thanks to Smart Dual Light technology with IR and warm light up to 60 m , it guarantees clear and color images even at night, supported by real WDR 140 dB and AI-ISP Starlight . It integrates powerful AI Deep Learning functions such as Perimeter Protection, AcuPick, Face Detection and People Counting , with AI H.265+ compression , audio with integrated microphone , I/O alarms , PoE+/ePoE power supply and robust IP67 and IK10 protection, ideal for professional outdoor installations. Dahua
BUSQUE INSTALADOR
IPC-HFW5459E1-ZE-IL | 4MP IP BULLET CAMERA WITH 2.7-12mm VARIFOCAL LENS - PERIMETER PROTECTION - PEOPLE COUNTING - POE
The Dahua IPC-HFW5459E1-ZE-IL is a WizMind 4MP bullet camera designed for advanced professional video surveillance, equipped with a 1/1.8" CMOS sensor and 2.7–12 mm motorized varifocal lens for flexible framing. Thanks to Smart Dual Light technology with IR and warm light up to 60 m , it ensures detailed and color images even at night, supported by 140 dB real WDR and AI-ISP Starlight . The integrated AI Deep Learning functions allow accurate intelligent analysis, false alarm reduction and bandwidth and storage optimization via AI H.265+ , with audio, I/O alarms, PoE+/ePoE and IP67 and IK10 protections for critical outdoor environments.
Main specifications:
- 4MP resolution (2688×1520), 1/1.8" Starlight CMOS sensor
- Motorized varifocal lens 2.7–12mm
- Smart Dual Light with IR and warm light up to 60 m
- Real WDR 140 dB
- AI WizMind with Perimeter Protection, AcuPick and People Counting
- AI H.265+ / Smart H.265+ compression
- Built-in microphone and audio I/O
- Alarm Inputs/Outputs
- PoE+ and ePoE power supply
- IP67 and IK10 protection
Further details
✅ Varifocal optics :
The camera integrates a 2.7–12mm motorized varifocal lens with F1.8 aperture , which allows precise adjustment of the field of view from wide angle to telephoto , perfectly adapting to different installation scenarios and shooting distances.
✅ Resolution:
It offers 4MP (2688×1520) resolution with frame rate up to 25/30 fps , ensuring high definition images, rich in detail and ideal for advanced video analysis and accurate subject identification.
✅ Starlight :
Thanks to the 1/1.8" ultra-low-light CMOS sensor and AI-ISP technology, it ensures excellent performance in minimum light conditions, with clear and defined images even in near darkness.✅ Smart Dual Light :
Smart Dual Light technology combines IR and warm light up to 60m , automatically turning on white light when detecting a target to achieve color nighttime videos while reducing light pollution.✅ Xinghan Large-Scale AI Models-Vision:
The Xinghan AI Models-Vision platform leverages edge AI and NPU to enhance object, person, and vehicle recognition, improving scene adaptation, analytical accuracy, and nighttime performance .✅ Artificial Intelligence :
WizMind deep learning- based AI features include Perimeter Protection, Face Detection, Video Metadata, and People Counting , enabling advanced intelligent analytics and dramatically reducing false alarms.✅ AcuPick :
AcuPick technology uses front-end and back-end intelligence to quickly and accurately search recorded video, allowing you to locate specific people, vehicles, and targets in large video archives.✅ Alarm :
It has 2 inputs and 1 alarm output , supporting numerous intelligent events such as intrusion, tripwire, crowds and people counting, for complete integration with external security systems.✅ Microphone:
It is equipped with a built-in microphone with audio I/O , allowing for ambient audio recording and support for video surveillance functions with audio analysis .✅ Network protocol:
It supports a wide range of network protocols including IPv4/IPv6, RTSP, HTTP, TCP/UDP, FTP, SMTP, ONVIF Profile S/G/T/M , ensuring maximum compatibility and integration with VMS and NVR systems.
✅ PoE :
Compatible with PoE+ (802.3at) and ePoE , it allows power and data transmission over a single Ethernet cable , simplifying installation even over long distances and reducing cabling costs.
Technical data sheet
| MODEL | IPC-HFW5459E1-ZE-IL |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0007 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Openings | F1.8 |
| Field of View | H: 115°–47°; V: 62°–27°; D: 137°–54° |
| Iris Control | Car |
| Iris Control Type | DC-Iris |
| Close Focus Distance | 0.13 m (0.43 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 3.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU+ |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7W (12VDC); 5W (PoE) Max. 12.9W (12VDC); 16.1 W (PoE) (IR on + WDR + intelligence on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |

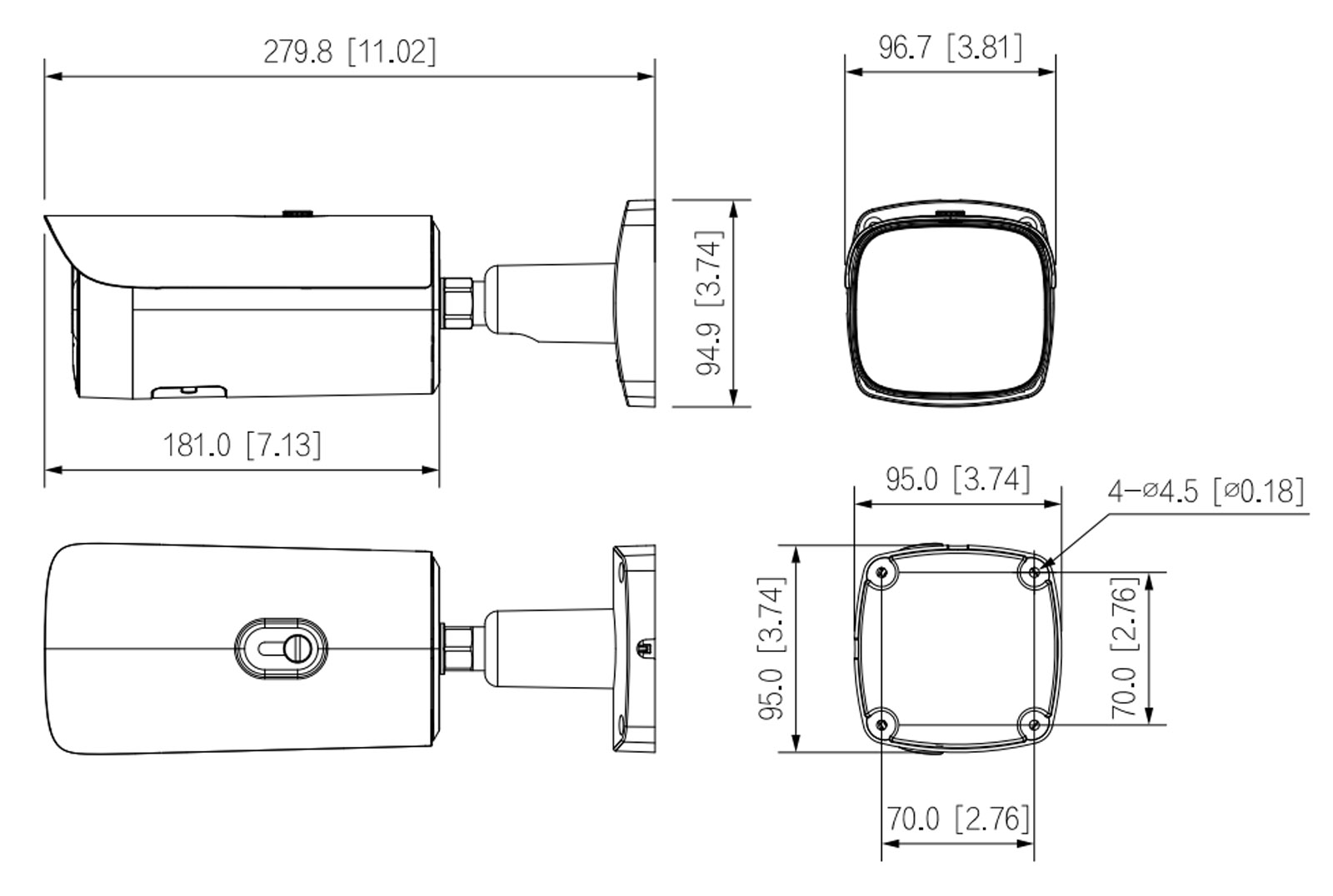

| Product Dimensions | 279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L × W × H) |
| Net Weight | 1.09 kg (2.40 lb) |
| Gross Weight | 1.39 kg (3.06 lb) |
