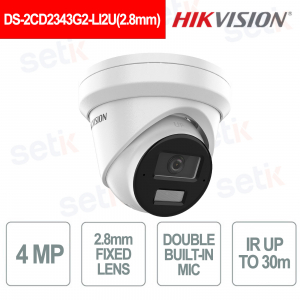

DS-2CD2343G2-LI2U(2.8mm) - is an outdoor IP turret camera designed for advanced and intelligent video surveillance, ideal for residential and professional contexts.
Thanks to the high-resolution 4 MP sensor and the 2.8mm wide-angle fixed lens with a viewing angle of up to 104° , it guarantees detailed images over large areas.
AcuSense technology with deep learning-based person and vehicle classification reduces false alarms, improving control effectiveness.
The Smart Hybrid Light system with IR and white light up to 30 m ensures optimal visibility even in total darkness.
Equipped with a built-in dual microphone , 120 dB real WDR , H.265+ compression and IP67 protection , it is reliable in any environmental conditions. Hikvision
BUSQUE INSTALADOR
DS-2CD2343G2-LI2U(2.8mm) – TURRET CAMERA FIXED LENS 2.8mm 2MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION
The Hikvision DS-2CD2343G2-LI2U(2.8mm) is a 4MP IP turret camera designed for intelligent and reliable indoor and outdoor video surveillance.
The 2.8mm wide-angle fixed lens allows for wide and detailed coverage, ideal for monitoring large areas.
AcuSense technology with deep learning distinguishes people from vehicles, reducing false alarms.
The Smart Hybrid Light system combines infrared and white light for clear images even at night.
The product is completed by integrated audio , real WDR 120 dB and IP67 protection for high performance in all conditions.
Main features:
- Resolution 4 MP (2688×1520)
- 2.8mm wide-angle fixed lens
- AcuSense with people and vehicle classification
- Smart Hybrid Light with IR and white light up to 30 m
- Built-in dual microphone
- WDR 120 dB and H.265+ compression
- IP67 protection for outdoor use
Further details
Equipped with a 2.8mm fixed wide-angle lens , it guarantees a wide field of view up to 104° , ideal for covering large areas with a high level of detail.
4 MP (2688×1520) sensor that ensures sharp and defined images , optimised for the precise identification of people and vehicles.
Hikvision AcuSense AI- based technology, designed to reduce false alarms by focusing only on real events.
Intelligent vehicle detection system, ideal for residential, commercial and parking environments, with greater accuracy in events.
Intelligent motion detection with AI filters that enable reliable notifications only when significant motion is detected.
Integrated deep learning algorithms for perimeter protection , line crossing and intrusion detection with accurate target classification.
Full support for major network protocols such as ONVIF, TCP/IP, HTTPS, RTSP , ensuring maximum compatibility and integration with video surveillance systems.
%20dimensioni.jpg)
Technical data sheet
| DS-2CD2343G2-LI2U(2.8mm) | |
| Room | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Openings | F1.6 |
| Depth of Field | 1.4 m to ∞ |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850mm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50Hz: 25fps (1280×720, 640×480, 640×360) |
| Third Stream |
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Target Cropping |
Yes |
| Audio | |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| User/Host |
Up to 32 users. |
| Client |
iVMS-4200,Hik-Connect,Hik-Central |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
| Web Browser |
Plug-in required live view: IE 11, |
| Image | |
| Image Parameters Switch |
Yes |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Settings |
Rotate mode |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask |
8 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Built-in Microphone: Arrayed dual-microphone |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Face detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power |
12 VDC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection, |
| Material |
Metal |
| Dimension |
Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
| Weight |
Approx. 515 g (1.1 lb.) |
| With Package Weight |
Approx. 755 g (1.7 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013 |
