DS-2CD2643G2-LIZS2U/SRB(2.8-12mm) - is a professional IP bullet camera designed for active and intelligent video surveillance of outdoor environments. It guarantees extremely detailed images thanks to 4 MP resolution and true 120 dB WDR technology , ideal even in strong backlighting. It is equipped with a 2.8–12 mm motorized varifocal lens , which allows precise remote adjustment of the field of view to adapt to any scenario. AcuSense technology with artificial intelligence and deep learning allows advanced detection of people and vehicles, reducing false alarms. The Smart Hybrid Light system with IR, white light, red/blue strobe and acoustic warning performs a powerful deterrent function. Robust structure with IP67 and IK10 protection for maximum outdoor reliability. Hikvision

Technical Data Sheet

referencia : DS-2CD2643G2-LIZS2U/SRB(2.8-12mm

brand : Hikvision

EAN: 6942160485393

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

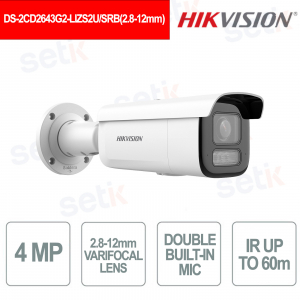

DS-2CD2643G2-LIZS2U/SRB(2.8-12mm) – VARIFOCAL LENS BULLET CAMERA 2.8-12mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION

Hikvision

The Hikvision DS-2CD2643G2-LIZS2U/SRB is a professional IP bullet camera designed for active and intelligent video surveillance of outdoor environments. It ensures extremely detailed images thanks to 4 MP resolution and true 120 dB WDR technology , ideal even in the presence of strong light contrasts. It is equipped with a 2.8–12 mm motorized varifocal lens , which allows precise remote adjustment of the field of view to adapt to any installation scenario. AcuSense technology with artificial intelligence and deep learning allows accurate detection of people and vehicles, reducing false alarms. The Smart Hybrid Light system with IR, white light, red/blue strobe and acoustic warning performs a powerful active deterrent function. Robust construction with IP67 and IK10 protection for maximum outdoor reliability.

Main features:

- Resolution 4 MP (2688×1520)

- Motorized varifocal optics 2.8–12 mm

- AcuSense technology with deep learning

- Intelligent detection of people and vehicles

- Smart Hybrid Light with IR, white light and red/blue strobe

- Integrated acoustic warning with speaker

- Real WDR 120 dB

- Built-in dual microphone

- H.265+ video compression

- IP67 and IK10 outdoor protection

Further details

✅ Varifocal optics :
 2.8–12 mm motorized varifocal lens allows precise and remote adjustment of the field of view , adapting the shooting to different distances and installation scenarios for flexible and professional surveillance.
✅ Resolution:
 4 MP The 2688×1520 Progressive Scan CMOS sensor delivers high-definition images , ideal for accurately identifying people, vehicles and relevant details.
✅ Acusense :
AcuSense AI technology uses deep learning algorithms to focus on real events, improving efficiency and dramatically reducing false alarms.
✅ Smart Hybrid Light :
The Smart Hybrid Light system integrates IR and white light with intelligent modes and red/blue strobe , ensuring advanced night visibility and a powerful deterrent function.
✅ Human Detection:
Intelligent person detection allows targeted alarms to be triggered only in the presence of real human subjects, dramatically reducing false alarms.
✅ Vehicle Detection :
 Intelligent motion detection is optimized by AI to only report relevant events, increasing operational efficiency.
✅ Motion Detection :
 Intelligent motion detection is optimized by AI to distinguish significant from insignificant movements.
✅ Face Detection :
Facial detection enhances video analytics and supports advanced security and visual verification applications.
✅ Deep Learning Function :
 Deep learning features include perimeter protection with line crossing and intrusion detection, with targeted classification of people and vehicles.
✅ Microphone :
The dual-microphone array enables high-quality audio recording in real time , offering a complete level of audio-video security.
✅  Network Protocol:
 Support for the main network protocols (ONVIF Profile S/G, TCP/IP, HTTPS, RTSP, IPv4/IPv6) guarantees maximum compatibility and integration with IP video surveillance systems.
DS-2CD2643G2-LIZS2U-SRB(2.8-12mm) dimensions

Technical data sheet

DS-2CD2383G2-LI2U/SRB(2.8mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 102.4° to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1° to 35.8°
Lens Mount Ø14
Iris Type Fixed
Openings F1.6
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 60 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 8 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Target Cropping

Yes
Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering

Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Client

iVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser

Plug-in required live view: IE 11,
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch

Yes
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

8 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Built-in Speaker 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Audio Built-in Microphone: Arrayed dual-microphone
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Face detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing
Deep Learning Function
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 4, max. 18W
Material

Metal
Dimension

298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
Package Dimension

385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight

Approx. 1531 g (3.4 lb.)
With Package Weight

Approx. 2000 g (4.4 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Flashing Light

SRB models: Red and Blue Light
Other models: White Light
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
LOA: IEC/EN 60950-1
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006
Protection

IP67: IEC 60529-2013
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
