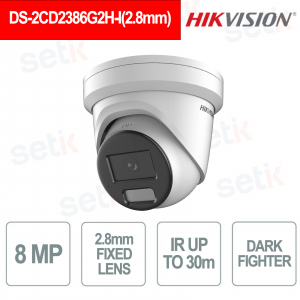

DS-2CD2386G2H-I(2.8mm) - is an IP turret camera with 8 MP (3840 × 2160) resolution and 1/1.8" Progressive Scan CMOS sensor, designed for high definition video surveillance. Equipped with a 2.8mm fixed lens with 108.8° horizontal FOV and F1.0 aperture, it guarantees wide coverage and bright images up to 0.001 Lux thanks to Powered-by-DarkFighter technology. WDR 120 dB ensures clarity even in strong backlighting, while AcuSense technology with deep learning allows intelligent classification of people and vehicles. It supports H.265+ compression , IR up to 30 m , integrated microphone in the -U version and IP67 protection, ideal for professional outdoor installations. Hikvision

Technical Data Sheet

referencia : DS-2CD2386G2H-I(2.8mm)

brand : Hikvision

EAN: 6942160432649

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2CD2386G2H-I(2.8mm) – FIXED LENS TURRET CAMERA 2.8mm 8MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - DARKFIGHTER

Hikvision

The Hikvision DS-2CD2386G2H-I 2.8mm is an IP turret camera with 8 MP (3840 × 2160) resolution and 1/1.8" Progressive Scan CMOS sensor , designed for high-definition video surveillance. Equipped with a 2.8mm fixed lens with 108.8° horizontal FOV and F1.0 aperture , it guarantees wide coverage and bright images up to 0.0008 Lux thanks to Powered-by-DarkFighter technology . The 120 dB WDR ensures clear footage even in strong backlighting, while AcuSense technology with deep learning allows for intelligent classification of people and vehicles. It supports H.265+ compression , IR up to 30 m , microSD slot up to 512 GB and IP67 protection , making it ideal for professional outdoor installations.

Main features:

- Resolution 8 MP 3840 × 2160

- Fixed lens 2.8mm FOV 108.8° F1.0

- DarkFighter Technology 0.0008 Lux

- Real WDR 120 dB

- AcuSense Human & Vehicle Detection

- IR up to 30 m and IP67 protection

Further details

✅ Fixed optics :
 2.8mm wide-angle lens with 108.8° horizontal FOV , F1.0 aperture and 3.3m to infinity depth of field, ideal for wide coverage of indoor and outdoor environments with a high level of detail.
✅ Resolution:
 8 MP ( 3840 × 2160 ) 1/1.8" Progressive Scan CMOS sensor for high-definition images, higher pixel density and better identification of people and objects.
✅ DarkFighter Technology :
Advanced low light technology down to 0.0008 Lux , ensuring clear and bright images even in night scenes.
✅ Human Detection:
Intelligent person detection via AcuSense with deep learning , with alarm filtering to reduce false positives.
✅ Vehicle Detection :
 Targeted vehicle identification thanks to dedicated AI algorithms , ideal for car parks, entrances and perimeter areas.
✅ Motion Detection :
 Advanced motion detection system with alarm triggering based on specific targets (people and vehicles).
✅ Deep Learning Function :
 Smart features such as Face Capture and Perimeter Protection (line crossing, intrusion, region entrance/exit) for intelligent video analytics and proactive security.
✅  Network Protocol:
 Full compatibility with TCP/IP, HTTP, HTTPS, RTSP, ONVIF (Profile S, G, T), IPv4/IPv6 , SSL/TLS and SNMP, for easy integration into professional IP video surveillance systems.

Technical data sheet

DS-2CD2386G2H-I(2.8mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
Lens Mount M16
Iris Type Fixed
Openings F1.0
Depth of Field 3.3 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 16 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Client

iVMS-4200, Hik-Connect, Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Web Browser

Plug-in required live view: IE 11,
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch

Yes
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8W
Material

Cover: Metal, main body: Metal
Dimension

Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension

170mm × 170mm × 160mm (6.7" × 6.7" × 6.3")
Weight

Approx. 775 g (1.7 lb.)
With Package Weight

Approx. 1231 g (2.7 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32:2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection

IP67: IEC 60529-2013
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
