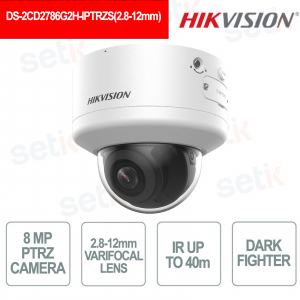

DS-2CD2786G2H-IPTRZS(2.8-12mm) - is an 8 MP (3840 × 2160) IP dome camera with 1/1.8" Progressive Scan CMOS sensor, designed for high-performance professional video surveillance. It integrates a 2.8-12 mm motorized varifocal lens with motorized PTRZ (Pan, Tilt, Rotate, Zoom) and F1.2 aperture, offering a horizontal viewing angle from 112.3° to 41.2° and remote adjustment up to 1,000 cycles. AcuSense technology with Deep Learning allows intelligent classification of people and vehicles , with advanced perimeter protection and Face Capture. It guarantees clear images even in critical conditions thanks to DarkFighter 0.0008 Lux , WDR 120 dB and IR up to 40 m , with H.265+ compression to optimize bandwidth and storage. The metal structure IP66 and IK10 certified, with integrated audio and alarm I/O, it ensures reliability in indoor and outdoor environments. Hikvision

Technical Data Sheet

referencia : DS-2CD2786G2H-IPTRZS(2.8-12mm)

brand : Hikvision

EAN: 6942160487861

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2CD2786G2H-IPTRZS(2.8-12mm) – PTRZ DOME CAMERA VARIFOCAL LENS 2.8-12mm 8MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - DARKFIGHTER

Hikvision

The Hikvision DS-2CD2786G2H-IPTRZS is an 8MP (3840×2160) IP dome camera with a 1/1.8" Progressive Scan CMOS sensor, designed for high-precision professional video surveillance. It integrates a 2.8-12 mm motorized varifocal lens with remote PTRZ (Pan, Tilt, Rotate, Zoom) up to 1,000 cycles, F1.2 aperture and a horizontal viewing angle from 112.3° to 41.2° , ensuring maximum installation flexibility. AcuSense technology with Deep Learning enables intelligent classification of people and vehicles , Face Capture and advanced perimeter protection. Superior performance in critical conditions thanks to DarkFighter 0.0008 Lux, WDR 120 dB , IR up to 40 m and H.265+ compression to optimize bandwidth and storage. The IP66 and IK10 certified metal structure, with built-in audio and alarm I/O, it ensures reliability in indoor and outdoor environments.

Main features:

- Resolution 8 MP (3840 × 2160)

- 2.8-12 mm F1.2 motorized varifocal lens with remote PTRZ

- AcuSense technology with Deep Learning and Face Capture

- DarkFighter 0.0008 Lux and WDR 120 dB

- IR up to 40m with H.265+

- IP66 and IK10 protection with integrated audio and alarm

Further details

✅ Varifocal optics :
 2.8–12 mm F1.2 : motorized varifocal lens with a horizontal viewing angle of 112.3° to 41.2° , precise framing adjustment and depth of field from 1 m to infinity, ideal for professional installations.
✅ Resolution:
 8MP 3840 × 2160 1/1.8" Progressive Scan CMOS sensor for high-definition images, advanced details and smooth recording up to 30 fps with H.265+ compression to optimize bandwidth and storage.
✅ Motorized PTRZ (Pan, Tilt, Rotate, Zoom):
 Remote adjustment with rotation up to 350° pan and rotate and 85° tilt , up to 1,000 cycles, for quick and precise setup without manual intervention.
✅ DarkFighter Technology 0.0008 Lux :
Excellent low-light performance, with IR up to 40m and Smart Supplement Light for professional night-time video surveillance.
✅ Human Detection:
AcuSense Deep Learning- based intelligent people classification system reduces false alarms and improves the accuracy of security events.
✅ Vehicle Detection:
Accurate vehicle identification with targeted alarm activation, ideal for access control, parking and sensitive perimeters.
✅ Motion Detection :
 Motion detection with filtering for specific targets (human/vehicle), integration with line crossing, intrusion, region entrance and region exiting for complete perimeter protection.
✅ Deep Learning Function :
 Smart features like Face Capture and Intelligent Perimeter Protection, designed for advanced video analytics in professional environments.
✅ I/O Alarm :
Presence of 1 alarm input and 1 alarm output (24VDC/24VAC, 1A) with notifications via email, FTP/NAS, recording activation and acoustic signaling.
✅  Network Protocol:
 Compatibility with TCP/IP, HTTPS, RTSP, ONVIF (Profile S, G, T), IPv4/IPv6 , TLS 1.1/1.2/1.3 encryption and 802.1X authentication for secure integration into VMS systems.

Technical data sheet

DS-2CD2786G2H-IPTRZS(2.8-12mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Remote adjustment (Max. 1,000 cycles)
Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°
Lens Mount Integrated
Iris Type Fixed
Openings F1.2
Depth of Field 1 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream

50 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 16 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Type

Mono sound
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering

Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Client

iVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser

Plug-in required live view: IE 11,
Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch

Yes
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output, audible warning
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 1.05 A, max. 12.6 W, reverse polarity protection, two-core terminal block
PoE: IEEE 802.3af, Class 4, max. 15W
Material

Metal
Dimension

Ø155 mm × 140.4 mm (Ø6.10" × 5.53")
Package Dimension

203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")
Weight

Approx. 840 g (1.9 lb.)
With Package Weight

Approx. 1450 g (3.2 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32:2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006
Protection

IK10: IEC 62262:2002,IP66: IEC 60529-2013
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
