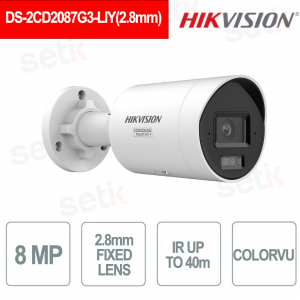

DS-2CD2087G3-LIY(2.8mm) - is an 8 MP (3840 × 2160) IP bullet camera with 1/1.8" Progressive Scan CMOS sensor and ColorVu technology, designed for 24/7 color images even in low light conditions. The 2.8 mm F1.0 fixed lens offers a wide horizontal FOV of 108.8°, ensuring high brightness up to 0.0005 Lux and sharp details thanks to the 130 dB WDR. It integrates Smart Hybrid Light (IR + White Light) up to 40 m , H.265+ compression and HikAI-ISP for advanced noise reduction. Deep Learning functions with people and vehicle classification , IP67 protection and NEMA 4X anti-corrosion resistance make it ideal for professional indoor and outdoor installations. Hikvision

Technical Data Sheet

referencia : DS-2CD2087G3-LIY(2.8mm)

brand : Hikvision

EAN: 6936422107734

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

¡ENVÍO GRATIS! ×

FREE SHIPPING ON
THE ENTIRE CATALOGUE!
Code: FREE-WEEK-E
Only until 10:00 a.m. on 16/02

DS-2CD2087G3-LIY(2.8mm) – FIXED LENS BULLET CAMERA 2.8mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - COLORVU

Hikvision

The Hikvision DS-2CD2047G3-LIY (2.8mm) is an 8MP (3840×2160) IP bullet camera with 1/1.8" Progressive Scan CMOS sensor and ColorVu technology, designed for 24/7 color images even with brightness up to 0.0005 Lux. The 2.8 mm F1.0 fixed lens guarantees a wide horizontal FOV of 108.8° and maximum brightness, supported by WDR 130 dB for high-contrast scenes. It integrates Smart Hybrid Light (IR + White Light) up to 40 m , H.265+ compression and HikAI-ISP processor for advanced noise reduction. Deep Learning functions with people and vehicle classification , IP67 protection and NEMA 4X resistance ensure reliability in professional indoor and outdoor environments.

Main features:

- 8MP 3840 × 2160 resolution

- Fixed 2.8 mm F1.0 lens with FOV 108.8°,

- ColorVu 24/7 color technology 0.0005 Lux

- WDR 130 dB and HikAI-ISP

- Smart Hybrid Light up to 40m (IR + White Light)

- Deep Learning Human & Vehicle Detection

- Built-in dual array microphone

- IP67 and NEMA 4X protection

Further details

✅ Fixed optics :
 Fixed focal 2.8mm lens with F1.0 aperture and 108.8° horizontal FOV , designed to ensure wide coverage and maximum brightness, with a depth of field from 3.3 m to infinity and optimized performance in low-light environments.
✅ Resolution:
 8MP 3840 × 2160 1/1.8" Progressive Scan CMOS sensor for high-definition images, fine details and recording up to 30 fps with H.265/H.265+ compression for reduced bandwidth and storage.
✅ 24/7 Colorful Imaging ColorVu:
 ColorVu technology with sensitivity up to 0.0005 Lux that ensures color images 24/7 , supported by Smart Hybrid Light (IR + White Light) up to 40 m for continuous video surveillance.
✅ Human Detection:
Deep Learning-based people detection system with alarm triggering on specific targets, ideal for perimeter protection and reduction of false positives.
✅ Vehicle Detection:
Accurate vehicle identification with intelligent classification, perfect for access control, parking and sensitive areas
✅ Motion Detection :
 Motion detection with support for line crossing, intrusion, region entrance and region exiting , with notifications via email, FTP/NAS and automatic recording activation.
✅ Deep Learning Function :
 Smart features like Face Capture and intelligent perimeter protection with target type filtering (human/vehicle) for professional video analytics.
✅  Network Protocol:
 Compatibility with TCP/IP, HTTPS, RTSP, ONVIF (Profile S, G, T) , IPv4/IPv6 support, TLS 1.1/1.2/1.3 encryption, 802.1X authentication and integration with major VMS.

Technical data sheet

DS-2CD2087G3-LIY(2.8mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
Lens Mount M16
Iris Type Fixed
Openings F1.0
Depth of Field 3.3 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 16 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Client

iVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser

Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch

Yes
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

130 dB
SNR ≥ 52 dB
Image Stabilization EIS
Privacy Mask

4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max.7W
Material

Front cover: metal, body: metal, bracket: metal
Dimension

Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
Package Dimension

234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Weight

Approx. 530 g (1.2 lb.)
With Package Weight

Approx. 810 g (1.8 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32:2015
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
Protection

IP67: IEC 60529-2013
Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
