DS-2CD2346G2H-IU 2.8mm 4MP AcuSense DarkFighter IP67 with WDR 120dB and IR 30m - Hikvision

DS-2CD2346G2H-IU 2.8mm 4MP AcuSense DarkFighter IP67 with WDR 120dB and IR 30m - Hikvision
ANUNCIOS -35% nuevo

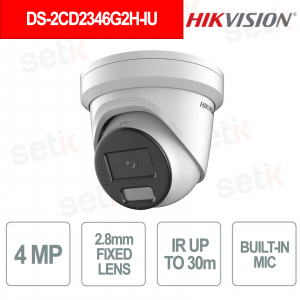

DS-2CD2346G2H-IU - with 2.8mm fixed lens is a 4MP (2688×1520) turret IP camera with 1/3" Progressive Scan CMOS sensor and Powered-by-DarkFighter technology for excellent low-light performance, even at 0.001 Lux. The 2.8mm F1.0 lens with 100.2° horizontal FOV guarantees wide coverage and sharpness, supported by 120 dB WDR for clear images in strong backlighting. It integrates AcuSense with deep learning for human and vehicle classification , IR up to 30 m , H.265+ compression and integrated microphone for real-time audio security, with IP67 protection ideal for professional outdoor installations. Hikvision

Technical Data Sheet

referencia : DS-2CD2346G2H-IU

brand : Hikvision

Disponibilità: 2

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DS-2CD2346G2H-IU – TURRET CAMERA FIXED LENS 2.8mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - DARKFIGHTER - MICROPHONE

Hikvision

The Hikvision DS-2CD2346G2H-IU with 2.8mm fixed lens is a 4MP (2688×1520) turret IP camera with 1/3" Progressive Scan CMOS sensor and Powered-by-DarkFighter technology, designed to ensure clear images even in low light conditions (0.001 Lux). The 2.8mm F1.0 lens with FOV 100.2° offers wide coverage, supported by 120 dB WDR for effective backlight management and IR up to 30 m for advanced night vision. It integrates AcuSense with deep learning for human and vehicle classification, H.265+ compression, integrated microphone and IP67 protection, making it ideal for professional indoor and outdoor video surveillance systems.

Main features:

- Resolution 4 MP 2688×1520

- Fixed 2.8mm FOV 100.2° lens

- Powered by DarkFighter for low light

- Real WDR 120 dB

- IR up to 30m

- AcuSense with human/vehicle classification

- H.265+ compression

- Built-in microphone

- IP67 protection


Further details

Fixed optics :
2.8mm
wide-angle lens with 100.2° horizontal FOV , F1.0 aperture and optimized performance for outdoor and indoor environments, ideal for wide and detailed coverage in IP video surveillance.
Resolution:
4 MP (2688×1520)
1/3" Progressive Scan CMOS sensor with high definition images and 120 dB WDR support , perfect for scenarios with strong light contrast.
Built-in microphone :
Built-in mono audio system for real-time recording and monitoring , compatible with professional codecs for NVR integration.
AcuSense:
Intelligent technology based on deep learning algorithms that optimizes alarm filtering by focusing on human and vehicle targets.
DarkFighter Technology :
Powered-by-DarkFighter technology with sensitivity down to 0.001 Lux , designed to ensure clear images in low-light conditions.
Human Detection:
Advanced person detection with intelligent classification that reduces false alarms in residential and commercial environments.
Vehicle Detection :
Accurate vehicle identification for parking, gate, and industrial applications thanks to integrated AI classification.
Motion Detection :
Intelligent motion detection function with event triggering on specific targets (human/vehicle), improving the efficiency of the security system.
Deep Learning Function :
Includes perimeter protection , line crossing, intrusion, region entrance/exit and Face Capture , for advanced video analysis based on artificial intelligence.
 Network Protocol:
Full support for TCP/IP, HTTP, HTTPS, RTSP, ONVIF (Profile S/G/T), IPv4/IPv6, SSL/TLS , ensuring secure integration and professional compatibility with IP video surveillance systems.

Technical data sheet

DS-2CD2346G2H-IU
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
Lens Mount M12
Iris Type Fixed
Openings F1.0
Depth of Field 1.9 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio
Audio Type mono sound
Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHz/48kHz

Environment Noise Filtering

Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Web Browser

Plug-in required live view: IE 11,
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9W

Material

Cover: Metal, main body: Metal

Dimension

Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

Package Dimension

170mm × 170mm × 160mm (6.7" × 6.7" × 6.3")

Weight

Approx. 550 g (1.2 lb.)

With Package Weight

Approx. 800 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
