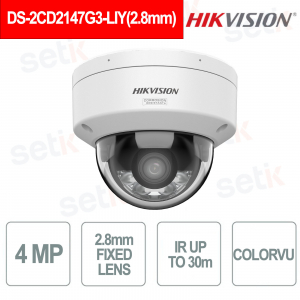

DS-2CD2147G3-LIY(2.8mm) – DOME CAMERA FIXED LENS 2.8mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - COLORVU - SMART HYBRID LIGHT
Hikvision DS-2CD2147G3-LIY with 2.8mm fixed lens is a 4MP (2688×1520) IP dome camera with ColorVu 24/7 technology and F1.0 aperture, designed for color images even in minimum light conditions. The 2.8mm lens guarantees a wide 111.1° viewing angle , while the Smart Hybrid Light system with IR and white light up to 30 m ensures optimal visibility day and night. It integrates 130 dB WDR , H.265+/H.264+ compression, deep learning with person and vehicle classification and advanced perimeter protection. Aluminum alloy structure with IP67, IK10 and NEMA 4X protection, 12V DC or PoE power supply and microSD slot up to 512GB for reliable local recording.
Main features:
- 4MP 2688×1520 resolution with ColorVu 24/7
- 2.8 mm fixed optics with FOV 111.1°
- Smart Hybrid Light IR + white light up to 30 m
- WDR 130 dB and H.265+ compression
- IP67, IK10 and NEMA 4X protection
Further details
2.8mm : wide-angle lens with 111.1° horizontal field of view , F1.0 aperture and 2.5m to infinity depth of field, ideal for covering large areas with high brightness even in night scenes.
1/1.8" Progressive Scan CMOS sensor with maximum resolution of 4MP 2688×1520 , support for up to 30 fps and H.265+/H.264+ compression for detailed images and optimized bandwidth.
ColorVu technology that ensures color images 24 hours a day thanks to the super F1.0 aperture and high light sensitivity (0.0001 Lux).
Intelligent lighting system with integrated IR and white light , range up to 30 meters and adaptive modes to ensure clear visibility in all conditions
Intelligent motion detection system with alarm activation on specific targets (human or vehicle) and video tampering functions.
Integrated AI features such as Face Capture and Perimeter Protection (line crossing, intrusion, region entrance/exit) for proactive and professional security.
Wide compatibility with TCP/IP, HTTP/HTTPS, RTSP, ONVIF Profile S/G/T, IPv4/IPv6, SSL/TLS protocols, ensuring flexible integration into advanced IP video surveillance systems.
Technical data sheet
| DS-2CD2147G3-LIY(2.8mm) | |
| Room | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8mm |
| Focal Length & FOV | horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Openings | F1.0 |
| Depth of Field | 2.5 m to ∞ |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850mm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688×1520, 1920×1080, 1280×720) |
| Sub-Stream |
50Hz: 25fps (1280×720, 640×480, 640×360) |
| Third Stream |
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View |
Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| User/Host |
Up to 32 users. |
| Client |
iVMS-4200,Hik-Connect,Hik-Central |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Web Browser |
Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, |
| Image | |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power |
12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, |
| Material |
Front cover: metal, body: metal, bracket: metal |
| Dimension |
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84") |
| Package Dimension |
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") |
| Weight |
Approx. 600 g (1.3 lb.) |
| With Package Weight |
Approx. 825 g (1.8 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32:2015 KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Anti-Corrosion Protection |
NEMA 4X (NEMA 250-2018) |
