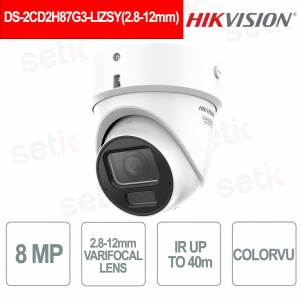

DS-2CD2H87G3-LIZSY 8MP Varifocal 2.8-12mm ColorVu IP67 IK10 Smart Hybrid Light - Hikvision

DS-2CD2H87G3-LIZSY 8MP Varifocal 2.8-12mm ColorVu IP67 IK10 Smart Hybrid Light - Hikvision

 
Optic calculation
BEST SELLER -35% nuevo

DS-2CD2H87G3-LIZSY(2.8-12mm) - is an IP dome camera with 2.8-12mm motorized varifocal lens is an 8 MP (3840 × 2160) IP turret camera with 24/7 ColorVu technology and F1.2 aperture, designed for high-brightness color images even in critical conditions. The motorized lens allows remote adjustment of the field of view from 112.3° to 41.2° , adapting to flexible indoor and outdoor installations. It integrates Smart Hybrid Light with IR and white light up to 40 m , WDR 130 dB and H.265+/H.264+ compression for maximum quality and bandwidth optimization. Thanks to deep learning with person and vehicle classification , perimeter protection and Face Capture, it offers advanced security. Metal enclosure with IP67, IK10, and NEMA 4X protection, 12V DC or PoE power supply, and microSD slot up to 512GB for reliable local recording. Hikvision

Technical Data Sheet

referencia : DS-2CD2H87G3-LIZSY(2.8-12mm)

brand : Hikvision

EAN: 6936422159016

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2CD2H87G3-LIZSY(2.8-12mm) – DOME CAMERA VARIFOCAL LENS 2.8-12mm 8MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - COLORVU

Hikvision

Hikvision DS-2CD2H87G3-LIZSY with 2.8-12mm motorized varifocal lens is an 8MP (3840×2160) IP turret camera with 24/7 ColorVu technology and F1.2 aperture, designed for clear color images even in low light conditions. The remotely adjustable lens offers a field of view from 112.3° to 41.2° , ensuring maximum installation flexibility. It integrates Smart Hybrid Light with IR and white light up to 40 m, WDR 130 dB and H.265+/H.264+ compression for high quality and bandwidth optimization. Thanks to deep learning with person and vehicle classification , perimeter protection and Face Capture, it ensures intelligent event analysis. Metal structure with IP67, IK10 and NEMA 4X protection, 12V DC or PoE power supply and microSD slot up to 512GB for reliable local recording

Main features:

- 8MP 3840 × 2160 resolution with ColorVu 24/7

- 2.8-12mm motorized varifocal lens with FOV 112.3°–41.2°

- Smart Hybrid Light IR + white light up to 40 m

- WDR 130 dB and H.265+ compression

- IP67, IK10 and NEMA 4X for professional outdoor use

Further details

✅ Varifocal optics :
 2.8–12mm remotely adjustable lens with 112.3° to 41.2° field of view , F1.2 aperture and precise adjustment to adapt framing to retail, industrial and perimeter contexts.
✅ Resolution:
 8MP 1/1.8" Progressive Scan CMOS sensor with maximum resolution of 3840 × 2160 , up to 30 fps and H.265+/H.264+ compression for high definition images and bandwidth optimization.
✅ Smart Hybrid Light :
Intelligent illumination with integrated IR and white light up to 40 m , additional automatic and adaptive modes to ensure optimal visibility in any conditions.
✅ 24/7 Colorful Imaging :
ColorVu technology with high light sensitivity (0.001 Lux) for 24/7 color images , even in low-light scenarios.
✅ Human Detection:
Deep learning-based person classification video analytics, reducing false alarms and improving the accuracy of security events.
✅ Vehicle Detection :
 Intelligent vehicle recognition for access control and perimeter protection applications with targeted alarm activation.
✅ Motion Detection :
 Advanced motion detection system with filter for specific targets (human and vehicle) and video tampering alarm.
✅ Deep Learning Function :
 Integrated AI functions such as Perimeter Protection (line crossing, intrusion, region entrance/exit) and Face Capture , for predictive and professional security.
✅ I/O Alarm :
Interface with 1 input and 1 alarm output (max 24V AC/DC, 1A) for integration with external systems and security automations.
✅  Network Protocol:
 Extended compatibility with TCP/IP, HTTP/HTTPS, RTSP, ONVIF Profile S/T/G, IPv4/IPv6, SSL/TLS, 802.1X protocols, for professional integration into advanced IP networks.

Technical data sheet

DS-2CD2H47G3-LIZSY(2.8-12mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens Mount Integrated
Iris Type Fixed
Openings Max. F1.2
Depth of Field 1 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range IR: up to 40 m
White Light: up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 16 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Audio
Audio Type

Mono sound
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering

Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Client

iVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser

Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch

Yes
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

130 dB
SNR ≥ 52 dB
Image Stabilization EIS
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask

4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.9 A, max. 10.8 W,2-core terminal block,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.95W
Material

Base: Metal, cover: Metal
Dimension

Ø143.5 mm × 142.7 mm (Ø5.7" × 5.6")
Package Dimension

170 mm × 170 mm × 225 mm (6.7" × 6.7" × 8.9")
Weight

Approx. 1245 g (2.7 lb.)
With Package Weight

Approx. 1520 g (3.4 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
Safety CB: IEC 62368-1: 2014+A11,
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006
NEMA 4X (NEMA 250-2018)
Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
