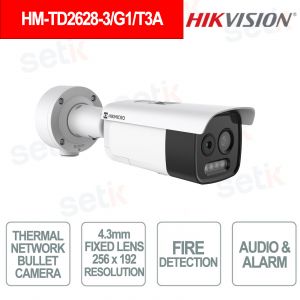

Hikvision HM-TD2628-3/G1/T3A 5MP AI Bi-Spectrum Thermal Camera with Fire Detection and Temperature Measurement IP67

Hikvision HM-TD2628-3/G1/T3A 5MP AI Bi-Spectrum Thermal Camera with Fire Detection and Temperature Measurement IP67

 
Optic calculation
EN PROMOCIÓN -35% nuevo

HM-TD2628-3/G1/T3A - is a bi-spectrum thermal and optical camera with a 256×192 VOx sensor, NETD ≤25 mK and a 5MP 2688×1944 optical module, ideal for perimeter protection and advanced analytics. It integrates AI GUANLAN Large-Scale Model for precise detection of people and vehicles with very low false alarms, as well as temperature measurement -20°C/+150°C with anomaly alarm. It supports fire detection up to 10 points , smoking detection and VCA functions such as line crossing and intrusion. Bi-spectrum image fusion technology, WDR 120 dB and hybrid IR/White Light illumination up to 30 m guarantee detailed images in any scenario. IP67, IK10 structure, PoE 802.3at and storage up to 512GB make it perfect for industrial contexts and critical environments. Hikvision

Technical Data Sheet

referencia : HM-TD2628-3/G1/T3A

brand : Hikvision

EAN: 6974004647766

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HM-TD2628-3/G1/T3A – THERMAL & OPTICAL BI-SPECTRUM NETWORK BULLET CAMERA

Hikvision

The HIKMICRO HM-TD2628-3/G1/T3A is a bi-spectrum thermal and optical camera designed for perimeter protection and industrial monitoring, with a 256×192 NETD ≤25 mK VOx sensor and a 5MP 2688×1944 optical module with 120 dB WDR. It integrates AI GUANLAN Large-Scale Model for advanced people and vehicle detection with false alarm reduction, as well as temperature measurement -20°C/+150°C ±8°C with anomaly alarm. It supports fire detection up to 10 points, smoking detection , VCA with line crossing and intrusion, and hybrid IR/White Light illumination up to 30 m. Bi-spectrum image fusion technology, H.265/H.264 compression, IP67 IK10 protection and PoE 802.3at guarantee reliability in critical environments.

Main features:

- Thermal sensor VOx 256×192, NETD ≤25 mK

- 5MP 2688×1944 optical module with WDR 120 dB

- AI GUANLAN with advanced Human/Vehicle Detection

- Temperature measurement -20°C/+150°C with alarm

- Fire Detection (up to 10 points) and Smoking Detection

- Hybrid IR/White Light illumination 30 m

- IP67, IK10 protection and 802.3at PoE power supply

Further details

✅ Thermal optics :
 3.6mm F1.0 and 4.3mm F1.6 lens with 12μm 256×192 VOx sensor and 1/2.7” 5MP CMOS , designed to ensure precise thermal analysis and detailed optical images with 120dB WDR .
✅ Thermal resolution:
 256×192 NETD ≤25 mK and 5MP 2688×1944 optical resolution , with H.265/H.264 compression for high video quality and bandwidth and storage optimization.
✅ Thermal & Optical Bi-spectrum :
With Image Fusion and Picture in Picture , which combines thermal and visible channels for professional video surveillance in any environmental conditions .
✅ Human Detection :
Advanced with AI GUANLAN for perimeter protection, detection up to 36m (VCA) and DORI distances up to 150m in detection .
✅ Vehicle Detection :
 Intelligent with accurate classification and range up to 90 m (VAC) and 460 m in DORI detection , ideal for car parks and industrial sites.
✅ Alarm :
Integrated visual and audio with white light up to 30 m , customizable audio alarm and notifications for VCA and temperature anomalies (-20°C/+150°C) .
✅ Two-way audio :
With professional compression (G.711, G.722.1, G.726) and Mic/Line-in interface for integration into advanced security systems .
✅ Detection Range Table :
Detailed with temperature measurement up to 58.3 m (1×1 m object) , fire detection up to 25.8 m and smoking detection up to 5.4 m
✅ Smart Function Range :
With 4 VCA rules and 21 temperature measurement rules , including line crossing, intrusion and point/area/line monitoring .
✅  Network:
 Professional IPv4/IPv6 with ONVIF Profile S/G/T/M , MicroSD storage up to 512GB , NAS, HTTPS, 802.1x and multi-user management up to 32 users for complete integration into IP systems.

Technical data sheet

HM-TD2628-3/G1/T3A
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD ≤25 mK (25°C, F1.0)
IFOV 3.33mrad
Field of View 50° × 37.3° (H × V)
Minimum Focusing Distance 0.3 m
Openings F1.0
Digital Zoom ×2, ×4
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 5MP, 2688 × 1944
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Focal Length 4.3 mm
Field of View 84.0° × 43.1° (H × V)
Aperture (Range) F1.6
WDR 120 dB
Image Effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
Illuminator
Light Supplement Hybrid (IR, White light or Smart mode)
IR Distance Up to 30m
Audible and Visual Alarm
White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ±8°C (±14.4°F)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Video and Audio
Main Stream Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1944, 2688×1520, 1920×1080, 1280×720)
Sub-Stream

Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50Hz: 25fps (704×576, 352×288)
60Hz: 30fps (704×480, 352×240)
Video Compression

Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression

G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Video and Image
Color Palettes

17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Network
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
Network Storage

MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
Simultaneous Live View

Up to 20 channels
User/Host

Up to 32 users. 3 user levels: administrator, operator, and user
Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client

iVMS-4200, Hik-Connect
Web Browser

Live view (plug-in allowed): Internet Explorer 11
Live view (free plug-in): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0+, Firefox 52.0+
Interface
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5mm Mic in/Line in interface
Line input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
Power Output 12 VDC, max 1W
General
Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply

12 VDC ± 25%, two-core terminal block
PoE (802.3at, class 4)
Power Consumption

12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W
PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
Working Temperature/Humidity

Temperatures: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Protection Level

IP67 Standard, IK10
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimension

349.1 mm × 113 mm × 105 mm
Weight

1710 g
Detection Range Table/Smart Function Range
VCA Range for Humans

36 m
VCA Range for Vehicles

90 m
Approval
EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
KC (KSC9832: 2019; KSC9835: 2019)
Safety

CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
LOA: SANS/IEC 60950-1
Environment

CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
Protection

IP67: IEC 60529-2013
IK10: IEC 62262-2002
