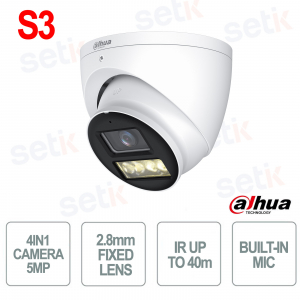

HAC-HDW1500T-IL-A S3 5MP HDCVI 2.8mm Smart Dual Light Camera with Built-in Microphone IP67 40m IR - Dahua
The HAC-HDW1500T-IL-A-S3 - with 2.8mm lens is an HDCVI Eyeball camera designed for high-definition video surveillance, equipped with a 5MP CMOS sensor with 2880×1620 resolution and Smart Dual Light technology with illumination up to 40 m , capable of automatically switching between IR light and white light for clear images even at night. It integrates a built-in microphone , Starlight technology and 3DNR noise reduction to improve video quality in low-light conditions. The 2.8 mm fixed lens with a field of view of up to 113° guarantees wide coverage of the monitored area. The IP67 water and dust resistant structure makes it ideal for outdoor installations, with CVI / TVI / AHD / CVBS compatibility for maximum flexibility of integration into video surveillance systems. Dahua
HAC-HDW1500T-IL-A-S3 | 5MP 4-IN-1 DOME CAMERA WITH 2.8mm FIXED LENS - BUILT-IN MICROPHONE

The Dahua HAC-HDW1500T-IL-A S3 with 2.8 mm lens is an HDCVI video surveillance camera designed to offer high-definition images and reliable performance in residential and professional contexts. Thanks to the 5MP CMOS sensor with 2880×1620 resolution , it guarantees clear and detailed videos up to 25 fps , while the Smart Dual Light technology with a range of up to 40 m allows you to obtain clear images with both IR illumination and intelligent white light. The 2.8 mm fixed lens with a wide field of view of up to 113° allows you to monitor large areas with precision. The presence of a built-in microphone , Starlight technology and 3DNR noise reduction improves audio and video quality even in low light conditions. The IP67 dust and water resistant structure and CVI/TVI/AHD/CVBS compatibility make this camera versatile and ideal for indoor and outdoor installations.
Main specifications:
- 5MP (2880 × 1620) resolution with high-performance CMOS sensor
- 2.8 mm fixed optics with field of view up to 113°
- Smart Dual Light technology with IR illumination and white light up to 40 m
- Built-in microphone for audio recording over coaxial cable
- Starlight technology and 3DNR noise reduction for clear images even at night
- IP67 water and dust resistant protection for outdoor installations
- CVI / TVI / AHD / CVBS video compatibility for integration with various DVRs
Further details
Technical data sheet
| MODEL | HAC-HDW1500T-IL-A-S3 |
| Room | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 65 dB |
| Illumination Distance | IR: 40 m (131.23 ft) Warm Light: 40 m (131.23 ft) |
| Illuminator On/Off Control | Car |
| Illuminator Number | 4 (Multi-core light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 2°–74.8° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View | H: 113.3°; V: 62.1°; D: 134.3° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 5M@25fps; 5M@12.5fps; 4M@25fps; 1080p@25fps NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto; White balance area |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | Yes |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Pick-up Distance | 8 m (26.25 ft) |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: EN 55032; EN 55035; |
| Audio | |
| Built-in MIC | Yes |
| Audio Camera | CVI; TVI |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 6.5 W (12 VDC, WLED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | Φ106.0 mm × 96.9 mm (Φ4.17" × 3.81") |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 0.64 kg (1.41 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
