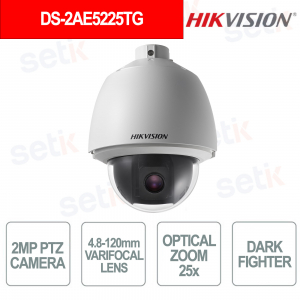

DS-2AE5225TG 2MP Full HD PTZ Camera DarkFighter 25x Zoom 4.8-120mm Lens WDR 120dB - Hikvision

DS-2AE5225TG 2MP Full HD PTZ Camera DarkFighter 25x Zoom 4.8-120mm Lens WDR 120dB - Hikvision

 
Optic calculation
-35% nuevo

DS-2AE5225TG - The PTZ camera represents an advanced solution for professional video surveillance, equipped with a 1/2.8" CMOS sensor and Full HD 2 MP 1920×1080 resolution, capable of ensuring clear and detailed images even in difficult conditions. Thanks to DarkFighter technology and 120 dB WDR , it offers excellent performance in low-light and high-contrast environments. The 4.8–120 mm varifocal lens with 25x optical zoom allows precise monitoring over long distances, while the PTZ movement with continuous 360° rotation ensures total area coverage. The presence of advanced image enhancement and intelligent control functions makes this device ideal for advanced security systems. Hikvision

Technical Data Sheet

referencia : DS-2AE5225TG

brand : Hikvision

EAN: 6936422190477

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2AE5225TG – PTZ CAMERA - 4.8-120mm 2MP VARIFOCAL LENS - 25x OPTICAL ZOOM - 16x DIGITAL ZOOM

Hikvision

The Hikvision DS-2AE5225TG PTZ camera is designed for professional video surveillance, offering high-quality images thanks to the 1/2.8" CMOS sensor and Full HD 1920×1080 resolution. The 4.8–120 mm varifocal lens with 25x optical zoom allows for detailed monitoring over long distances, while DarkFighter technology guarantees excellent performance in low-light conditions. The 120 dB WDR system ensures clear images even in strong backlighting and the PTZ movement with continuous 360° rotation allows for complete control of the area. The advanced image enhancement functions and compatibility with various video standards make this solution ideal for advanced security systems.

Main features:

- Full HD resolution 1920×1080

- 25x optical zoom + 16x digital zoom

- 4.8–120 mm F1.6–F3.5 lens

- WDR 120 dB for backlight

- DarkFighter technology for low light

- 360° PTZ with presets and intelligent functions

Further details

✅ Optics :
 Equipped with a 4.8–120mm varifocal lens with F1.6–F3.5 aperture , it offers wide framing flexibility and high performance in any scenario, ensuring a perfect balance between wide-angle viewing and long-distance detail .
✅ Resolution:
 The 1/2.8" progressive scan CMOS sensor enables Full HD 1920×1080 video quality, ensuring clear, smooth and high-detail images even in low light conditions.
✅ PTZ :
Professional Pan Tilt Zoom system with continuous 360° rotation and tilt up to 90° , equipped with presets, patrol and pattern scan , ideal for complete and automated coverage of surveillance areas.
✅ DarkFighter :
Advanced DarkFighter technology designed to ensure excellent low-light performance , improving visibility, contrast and image quality even in critical environments.
✅ Optical and digital zoom :
Powerful combination of 25x optical zoom and 16x digital zoom , ideal for identifying subjects at long distances while maintaining high quality and precise details.
✅ Interface :
 It integrates TVI/AHD/CVI/CVBS video outputs, RS-485 interface and alarm inputs/outputs, ensuring maximum compatibility and integration with existing and professional video surveillance systems.
✅ Network Camera :
It supports UTC and HIKVISION-C protocols with advanced features such as WDR 120 dB, 3D DNR, BLC and HLC , for intelligent image management and high performance in complex environments.

Technical data sheet

DS-2AE5225TG
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
Shutter Time PAL: 1/1 s to 1/30,000 s
NTSC: 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25 × optical, 16 × digital
Lens
Focal Length 4.8 mm to 120 mm, 25 × optical
FOV Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
Focus Auto, semi-auto, manual
Openings F1.6 to F3.5
Zoom Speed Approx. 3.6 s (optical, wide to tele)
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
Tilt Speed Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Preset Freezing Yes
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Video
Frame Rate

50 Hz: 25 fps @(1920 × 1080)
60Hz: 30fps @(1920×1080)
Network
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings GC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Interface
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power

36V DC, max. 24 W
Dimension

Φ 220mm × 280mm (Φ 8.66" × 11.03")
Without Package Weight

Approx. 3 kg (6.61 Ib.)
Operating Condition

-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language

English

Approval
Protection

IP66 (outdoor dome), IK10, TVS 4,000 V lightning protection, surge protection and voltage transient protection
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
