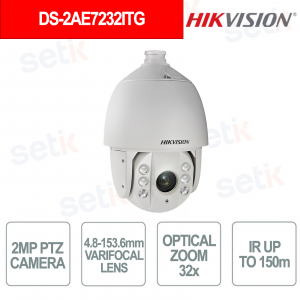

PTZ Camera 2MP Full HD Zoom 32x IR 150m DarkFighter Optics 4.8-153.6mm WDR 120dB - Hikvision

PTZ Camera 2MP Full HD Zoom 32x IR 150m DarkFighter Optics 4.8-153.6mm WDR 120dB - Hikvision

 
Optic calculation
-35% nuevo

DS-2AE7232ITG - The PTZ camera offers high performance for professional video surveillance thanks to the 1/2.8" CMOS sensor and Full HD 1920×1080 resolution, ensuring clear and detailed images. The 4.8–153.6 mm varifocal lens with 32x optical zoom allows precise control even over long distances, while DarkFighter technology ensures excellent results in low light conditions. The 120 dB WDR system improves visibility in backlighting and the IR illuminator up to 150 m allows effective monitoring even at night. The PTZ movement with continuous 360° rotation guarantees complete coverage, making it ideal for outdoor environments thanks to IP66 protection. Hikvision

Technical Data Sheet

referencia : DS-2AE7232ITG

brand : Hikvision

EAN: 6936422180577

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2AE7232ITG – PTZ CAMERA - 4.8-120mm 2MP VARIFOCAL LENS - 32x OPTICAL ZOOM - 16x DIGITAL ZOOM

Hikvision

The Hikvision DS-2AE7232ITG PTZ camera is designed for professional video surveillance, offering high-definition images thanks to the 1/2.8" CMOS sensor and Full HD 1920×1080 resolution. The 4.8–153.6 mm varifocal lens with 32x optical zoom allows precise control even over long distances, while DarkFighter technology guarantees excellent performance in low-light conditions. The 120 dB WDR system improves visibility in backlighting and the IR illuminator up to 150 m ensures effective monitoring even at night. The PTZ movement with continuous 360° rotation allows complete coverage of the area, making it ideal for advanced security contexts.

Main features:

- Full HD resolution 1920×1080

- 4.8–153.6 mm F1.6–F3.5 lens

- 32x optical zoom + 16x digital zoom

- DarkFighter technology for low light

- IR up to 150m for night vision

- WDR 120 dB for backlight

- 360° PTZ with intelligent functions

Further details

✅ Optics :
 4.8–153.6 mm varifocal lens with F1.6–F3.5 aperture, designed to ensure wide visual coverage and maximum sharpness, ideal for long-distance video surveillance applications with high precision.
✅ Resolution:
 Equipped with a 1/2.8" progressive scan CMOS sensor, it offers Full HD 1920×1080 images, ensuring high video quality , defined details and reliable performance even in complex environments.
✅ PTZ :
Professional Pan Tilt Zoom system with continuous 360° rotation and tilt up to 90° , equipped with presets, patrol and pattern scan , for dynamic and complete management of the monitored areas.
✅ DarkFighter :
Advanced DarkFighter technology ensures excellent performance in low light conditions , improving visibility, contrast and image quality even in night scenarios.
✅ Optical and digital zoom :
Powerful combination of 32x optical zoom and 16x digital zoom , ideal for capturing fine detail over long distances without compromising image quality.
✅ Interface :
 Compatible with TVI/AHD/CVI/CVBS video outputs and RS-485 interface, it guarantees maximum integration with analog and hybrid systems, supporting Hikvision, Pelco-P and Pelco-D protocols.
✅ Network Camera :
It supports UTC and HIKVISION-C protocols with advanced functions such as WDR 120 dB, 3D DNR, BLC and HLC , ensuring intelligent image management and high performance in any operating condition.

Technical data sheet

DS-2AE7232ITG
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Shutter Time PAL: 1/1 s to 1/30,000 s
NTSC: 1/1 s to 1/30,000 s
Day & Night IR cut filter
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
Zoom 32 × optical, 16 × digital
Lens
FOV Horizontal FOV: 55° to 1.7° (wide-tele)
Vertical FOV: 33° to 1.0° (wide-tele)
Diagonal FOV: 61.5° to 1.9° (wide-tele)
Focal Length 4.8 mm to 153.6 mm, 32 × optical
Focus Auto, semi-auto, manual
Openings F1.6 to F3.5
Zoom Speed Approx. 4.8 s (optical, wide to tele)
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 150 m
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 160°/s
Pan preset speed: 160°/s
Tilt Speed Tilt manual speed: 0.1° to 120°/s
Tilt preset speed: 120°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Video
Frame Rate

50 Hz: 25 fps @(1920 × 1080)
60Hz: 30fps @(1920×1080)
Network
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings GC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Interface
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power

36V DC, max. 30 W (IR: 14 W)
Dimension

Ø 220 mm × 356.9 mm (Ø 8.66" ×14.06")
Without Package Weight

Approx. 4.5 kg (9.92 lb.)
Operating Condition

-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language

English

Approval
Protection

IP66 (outdoor dome), IK10 (excluding glass window), TVS 4,000 V lightning protection, surge protection and voltage transient protection
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
