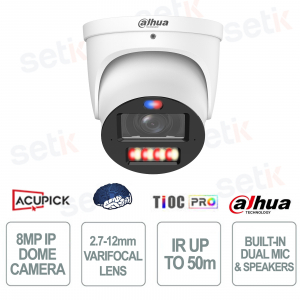

Dahua WizColor TiOC Pro AI 8MP Eyeball Camera with 2.7-12mm Lens, Siren, and Smart Dual Light, IP67

Dahua WizColor TiOC Pro AI 8MP Eyeball Camera with 2.7-12mm Lens, Siren, and Smart Dual Light, IP67

 
Optic calculation
EN PROMOCIÓN -56% nuevo

IPC-HDW3849H-ZAS-PV-PRO - Camera with 2.7-12 mm motorized lens is an 8MP eyeball camera designed to offer high performance thanks to the 1/1.8” 8MP CMOS sensor with resolution up to 3840×2160. The motorized vari-focal zoom allows an adjustable field of view up to 112° , adapting to different surveillance scenarios. WizColor technology guarantees color images even in low light conditions, while the Smart Dual Light offers IR illumination and warm light up to 50 m. It integrates Xinghan AI and advanced functions such as SMD 4.0, Perimeter Protection, Face Detection and AcuPick , ensuring intelligent analysis and reduction of false alarms. Equipped with integrated microphones, speaker and active alarm with siren and red/blue lights , it allows proactive security. The robust structure with IP67 protection makes it ideal for professional installations even in outdoor environments. Dahua

Technical data sheet

referencia : IPC-HDW3849H-ZAS-PV-PRO

brand : Dahua

EAN: 6937552406834

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

IPC-HDW3849H-ZAS-PV-PRO | 8MP IP DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE

Dahua

The Dahua IPC-HDW3849H-ZAS-PV-PRO with 2.7-12 mm motorized lens is an 8MP eyeball camera designed to offer high performance thanks to the 1/1.8” 8MP CMOS sensor with resolution up to 3840×2160. The motorized vari-focal zoom allows an adjustable field of view up to 112° , adapting to any surveillance context. WizColor technology guarantees color images even at night by exploiting ambient light, while the Smart Dual Light offers IR illumination and warm light up to 50 m. It integrates Xinghan AI with advanced functions such as SMD 4.0, Perimeter Protection, Face Detection and AcuPick , improving accuracy and reducing false alarms. Equipped with integrated microphones, speaker and active alarm with siren and red/blue lights , it allows proactive security. The robust structure with IP67 protection makes it ideal for professional installations even outdoors.

Main specifications:

- 1/1.8” 8MP CMOS sensor with up to 3840×2160 resolution for detailed images

- 2.7-12 mm motorized lens with vari-focal zoom and adjustable field of view up to 112°

- WizColor technology for color images even in low light conditions

- Smart Dual Light with IR and warm light up to 50m for intelligent night vision

- Advanced Artificial Intelligence: SMD 4.0, Perimeter Protection, Face Detection and AcuPick

- Xinghan Large-Scale AI Models-Vision for Intelligent Analytics and High Performance

- Built-in microphones and speakers with two-way audio and active alarm with siren and lights

- IP67 dust and water resistant for outdoor use

Further details

✅ Optics :
Equipped with a 2.7-12 mm vari-focal motorized lens , it allows for precise and adjustable zoom with a field of view from 112° to 48° , adapting perfectly to any professional video surveillance context.
✅ Resolution:
It integrates a 1/1.8” 8MP CMOS sensor with a resolution of up to 3840×2160 at 25/30 fps , ensuring sharp, detailed and high-performance images even in low light conditions.
✅ Xinghan Large-Scale AI Models-Vision :
Leverage advanced AI models with NPUs and edge computing , improving multi-task analysis, intelligent recognition, and computing resource optimization .
✅ Artificial Intelligence :
It supports advanced features such as Perimeter Protection, SMD 4.0, Face Detection and AcuPick , offering precise detection of people and vehicles and significant reduction in false alarms.
✅ WizColor Technology:
It combines AI-ISP, a high-sensitivity sensor and a large aperture , enabling color images even at night by taking advantage of ambient light and maintaining high levels of detail.
✅ Siren and Light Active Deterrence :
It integrates an active deterrent system with siren and red/blue lights , which can be activated automatically in the event of an event, for immediate and dissuasive protection .
✅ TiOC Pro:
Advanced technology that combines AI, smart lighting and active deterrence , offering a complete solution for real-time monitoring, prevention and intervention .
✅ Built-in Microphone & Speaker:
Equipped with dual microphones and an integrated speaker , it supports two-way audio and real-time communication for active safety applications.
✅ Alarm :
 It features alarm inputs/outputs and numerous intelligent events such as intrusion, motion, video tampering and network anomalies, ensuring advanced alert management and proactive security .
✅ Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF, HTTP, FTP and P2P protocols , supports up to 3 simultaneous video streams and full integration into professional IP systems.
✅ Doors :
It includes RJ-45 Gigabit port, audio and alarm inputs/outputs , as well as MicroSD support up to 512 GB , ensuring maximum connection and storage flexibility .
IPC-HDW3849H-ZAS-PV-PRO dimensions

Technical data sheet

MODEL IPC-HDW3849H-ZAS-PV-PRO
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0006 lux@F1.2(Color,30IRE)
0.0003 lux@F1.2(B/W,30IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (IR) (Warm light)
Illuminator On/Off Control Auto;Manual;Zoomprio
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ16
Focal Length 2.7 mm–12 mm
Max. Openings F1.2
Field of View

H: 112°–48°
V: 58°–27°
D: 137°–55°
Iris Control Fixed
Close Focus Distance W: 1.75 m (5.74 ft)
T: 5.21 m (17.09 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3840 × 2160@(1 fps–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 8M (3840 × 2160); 6M (3200×1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate H.264: 3 kbps–16384kbps;
H.265: 3 kbps–16384kbps;
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Max power consumption: 2W; max sound level at 10 cm: 110 dB
* Test results from laboratory
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP;SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Cyber Security Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
Power
Power Supply 12 VDC/PoE+ (802.3at)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.1W (12VDC); 5.3W (PoE)
Max.(H.265 + WDR+ warm light + siren and light active deterrence + intelligence on): 11.3 W (12 VDC); 13.8W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal
Product Dimensions 127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Net Weight 0.94 kg (2.07 lb)
Gross Weight 1.17 kg (2.58 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
