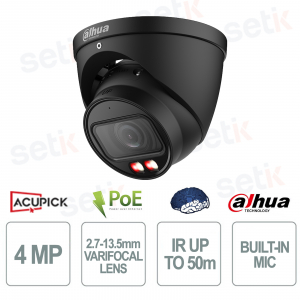

Dahua 4MP WizSense AI Varifocal 2.7-13.5mm Smart Dual Light IP67 Camera Built-in Microphone Black

Dahua 4MP WizSense AI Varifocal 2.7-13.5mm Smart Dual Light IP67 Camera Built-in Microphone Black
-56% nuevo

IPC-HDW3449T-ZS-IL-B - Camera with 2.7-13.5 mm motorized lens and black finish is a 4MP bullet camera designed to guarantee versatility and high performance thanks to the 1/2.9” 4MP CMOS sensor with resolution up to 2688×1520. The motorized vari-focal zoom allows an adjustable field of view up to 104° , adapting to different surveillance scenarios. Smart Dual Light technology combines IR and warm light up to 60 m for intelligent and color night vision. It integrates advanced AI functions such as SMD 4.0 and Perimeter Protection , ensuring precise detection and reduction of false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, while the integrated microphone expands monitoring capabilities. The rugged structure with IP67 protection makes it ideal for professional outdoor installations. Dahua

Technical data sheet

referencia : IPC-HDW3449T-ZS-IL-B

brand : Dahua

EAN: 6939554933394

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


IPC-HDW3449T-ZS-IL-B | 4MP IP DOME CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE

Dahua

The Dahua IPC-HDW3449T-ZS-IL is a professional video surveillance camera with 4MP resolution and a high-sensitivity CMOS sensor, ideal for obtaining clear images even in low-light conditions. Equipped with a 2.7-13.5mm motorized varifocal lens , it guarantees maximum installation and coverage flexibility, while Smart Dual Light technology offers night vision up to 50 meters with automatic switching between IR and white light. The integration of WizSense Artificial Intelligence allows for precise detection of people and vehicles, reducing false alarms. It supports H.265+ compression to optimize bandwidth and storage, integrates a microphone and features a resistant IP67 design in an elegant black color, perfect for outdoor environments.

Main specifications:

- 4MP Resolution: High definition images up to 2688×1520 for detailed monitoring

- 2.7-13.5mm varifocal lens: flexible framing adjustment for different scenarios

- Smart Dual Light: Intelligent night vision up to 50m with IR and automatic warm light

- WizSense Artificial Intelligence: advanced detection of people and vehicles with reduced false alarms

- H.265+ compression: high storage efficiency and reduced bandwidth used

- Built-in microphone: ambient audio acquisition for added security

- IP67 protection: dust and water resistance for outdoor installations

- MicroSD support up to 512GB: reliable and capacious local storage

Further details

Optics :
2.7-13.5mm Varifocal Lens : High-precision motorized lens allows flexible framing adjustment , allowing you to switch from wide-angle views to closer details, ideal for adapting to different professional video surveillance scenarios.
Resolution:
4MP Resolution : Advanced CMOS sensor capable of delivering high definition images (2688×1520) with high sharpness and details, ensuring optimal performance even in low light conditions thanks to starlight technology.
Xinghan Large-Scale AI Models-Vision :
Advanced technology based on large-scale AI models and transformer architecture that optimizes performance through edge computing and NPU , enabling concurrent analytics and greater efficiency in video data management.
Artificial Intelligence :
Intelligent system with advanced human and vehicle detection , perimeter protection and features such as intrusion and tripwire, designed to reduce false alarms and improve monitoring accuracy.
Smart Dual Light:
Intelligent illumination with IR LEDs and white light up to 50m , capable of automatically switching to full color mode when detecting a target, ensuring greater night visibility and event details .
Built-in microphone:
Built-in audio system that allows the recording of ambient sounds , improving the level of security and offering complete control of the monitored scene.
Alarm :
Advanced event management with motion detection, video tampering, intrusion detection and system anomalies , including SD errors, network disconnection and unauthorized access, for complete and proactive security.
Network Camera:
Professional IP camera with advanced connectivity (ONVIF, RTSP, PoE) and support for multiple network protocols, designed for easy integration into video surveillance systems and remote management from dedicated apps and software.

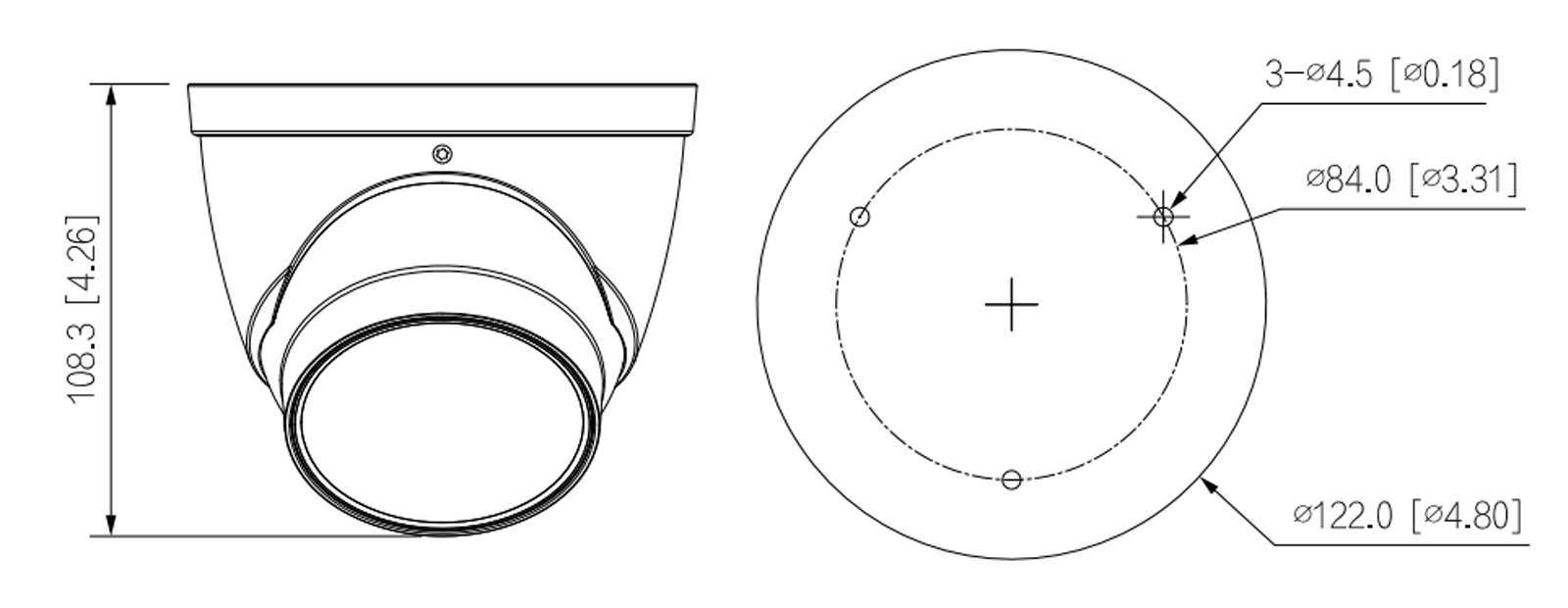

IPC-HDW3449T-ZS-IL-B dimensions

Technical data sheet

Model IPC-HDW3449T-ZS-IL-B
Room
Image Sensor 1/2.9" CMOS
Effective Pixel 2688 (H) × 1520 (V)
ROM/RAM 256 MB/1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W,30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm-13.5 mm
Max. Openings F1.4
Field of View H: 104°–29°; V: 54°–16°; D: 125°–34°
Iris Type Fixed
Close Focus Distance 0.1 m (0.33 ft)
Professional, Intelligent
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2688 × 1520@(1 fps–25/30 fps)
Sub stream: 1920 × 1080@(1 fps–25/30 fps)
Third stream:1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 3 streams
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage

FTP; SFTP; Micro SD card (support max. 512G); NAS

Browser IE: IE11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Smartphone iOS; Android
Security Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power
Power Supply 12 VDC/PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 3.7W (12VDC); 4.7W (PoE)
Max. (H.265 + WDR + warm light + intelligence on): 8.7 W (12 VDC); 10.3W (PoE)

Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Ingress Protection IP67
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Structure
Casing Metal
Dimensions 108.3 mm × Φ122.0 mm (4.26" × Φ4.80")
Net Weight 690 g (1.52 lb)
Gross Weight 920g (2.0 lb)
