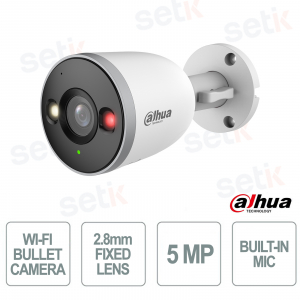

Dahua WiFi 5MP 2.8mm Bullet IP67 Camera with AI Human Detection, Smart Dual Light and Built-in Microphone - Dahua
IPC-F5D-IL - is a 5MP Wi-Fi bullet camera with 2.8mm fixed lens , designed to offer clear and detailed images with a wide viewing angle of up to 104° . Thanks to Smart Dual Light technology, it guarantees color night vision with illumination up to 30 meters , while the AI Human Detection and Vehicle Detection functions reduce false alarms by focusing on relevant subjects. Equipped with a built-in microphone , it allows audio recording, while Wi-Fi 6 connectivity ensures stable and fast transmission without cables. It supports H.265 compression to optimize bandwidth and storage on Micro SD up to 256GB , and is protected with IP67 certification for reliable outdoor use. Dahua
IPC-F5D-IL | 5MP Wi-Fi Bullet Camera with 2.8mm Fixed Lens - AI Human & Vehicle Detection - Microphone

The Dahua IPC-F5D-IL is a 5MP Wi-Fi bullet camera with 2.8mm fixed lens , designed to offer high definition images with a wide viewing angle of up to 104° . Thanks to Smart Dual Light technology, it guarantees advanced night vision up to 30 meters , automatically alternating IR light and white light for always clear images. It integrates Artificial Intelligence functions such as Human Detection and Vehicle Detection , reducing false alarms and improving security. Equipped with a built-in microphone and H.265 compression, it ensures efficient audio/video recording. Wi-Fi 6 connectivity, Micro SD support up to 256GB and IP67 protection make it ideal for outdoor and cable-free installations.
Main specifications:
- 5MP Resolution: Clear images up to 2880×1620 for detailed monitoring
- 2.8mm optics: wide 104° viewing angle ideal for complete room coverage
- Smart Dual Light: Intelligent illumination with IR and white light up to 30m for color night vision
- AI Human & Vehicle Detection: Intelligent detection of people and vehicles with reduced false alarms
- Wi-Fi 6: stable and fast wireless connection without the need for cabling
- Built-in microphone: synchronized audio capture for complete security
- Micro SD support up to 256GB: simple and economical local storage
- IP67 protection: dust and water resistance for outdoor use
Further details
Technical data sheet
| Model | IPC-F5D-IL |
| Room | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Min. Illumination | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Close Focus Distance | H: 104°; V: 56°; D: 124° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio and Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Video Frame Rate | Main stream: 2880 × 1620@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 32 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| General | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Power Supply | 12 VDC |
| Power Consumption | Basic: 1.98 W (12 VDC); Max.: 4.02 W (12 VDC) (H.265 + warm light intensity) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 158.3 mm × Φ76.8 mm (6.23" × Φ3.02") |
| Net Weight | 331 g (0.73 lb) |
