IPC-HFW5459E-ASE-IL - The WizMind 4MP Smart Dual Light Bullet camera with 2.8 mm fixed lens is designed to offer high performance in video surveillance, thanks to the 1/1.8” CMOS sensor (2688×1520) that guarantees clear and detailed images even in low light conditions. The wide viewing angle of up to 112° ensures extended coverage, while the Smart Dual Light technology with IR and warm light up to 50 m allows color shooting upon target detection. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, face detection, people counting and perimeter protection. It supports WDR 140 dB and 3D NR for always balanced and optimized images. The device is completed by the presence of an integrated microphone, intelligent alarms and MicroSD support up to 1TB , with IP67 protection for outdoor environments. Dahua
BUSQUE INSTALADOR

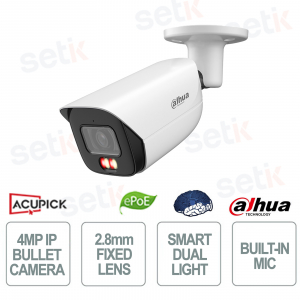

IPC-HFW5459E-ASE-IL | 4MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - POE - SMART DUAL LIGHT
The Dahua IPC-HFW5459E-ASE-IL WizMind 4MP Smart Dual Light Bullet camera with 2.8 mm fixed lens represents an advanced solution for video surveillance, thanks to the 1/1.8” CMOS sensor (2688×1520) that guarantees clear images even in low light conditions. The wide viewing angle of up to 112° allows for optimal room coverage, while Smart Dual Light technology with IR and warm light up to 50 m ensures color images when a target is detected. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, face detection, people counting and perimeter protection. Thanks to WDR 140 dB and 3D NR, it always offers balanced and detailed images. The device is completed by the presence of an integrated microphone, intelligent alarms and MicroSD support up to 1TB , with IP67 protection for outdoor use.
Main specifications:
- 4MP resolution with 1/1.8” CMOS sensor for high definition images
- 2.8 mm fixed optics with a viewing angle of up to 112°
- Smart Dual Light (IR + warm light up to 50m) for intelligent night vision
- Xinghan Artificial Intelligence with AcuPick, Face Detection and Perimeter Protection
- WDR 140 dB and 3D NR for always clear and balanced images
- Built-in microphone and advanced alarms for active safety
- MicroSD support up to 1TB for local storage
- IP67 weatherproof protection
Further details
✅ Optics :
The 2.8 mm fixed lens guarantees a wide viewing angle of up to 112° , ideal for monitoring large areas with high coverage and without the need for mechanical adjustments.
✅ Resolution:
The 1/1.8” 4MP (2688×1520) CMOS sensor ensures sharp, detailed images , with high sensitivity even in low light conditions.
✅ Xinghan Large-Scale AI Models-Vision :
The Xinghan AI platform leverages advanced deep learning models and high-performance NPUs , enabling precise recognition, multi-task analysis and intelligent scene adaptation .
The Xinghan AI platform leverages advanced deep learning models and high-performance NPUs , enabling precise recognition, multi-task analysis and intelligent scene adaptation .
✅ Self-Learning :
The self-learning system based on deep learning allows the camera to analyze behaviors and filter out false alarms , progressively improving accuracy and efficiency.
The self-learning system based on deep learning allows the camera to analyze behaviors and filter out false alarms , progressively improving accuracy and efficiency.
✅ Smart Dual Light :
Smart Dual Light technology combines IR and warm light illumination up to 50m , automatically activating white light when detecting a target to obtain color images and reduce light pollution .
Smart Dual Light technology combines IR and warm light illumination up to 50m , automatically activating white light when detecting a target to obtain color images and reduce light pollution .
✅ Artificial Intelligence :
It integrates advanced AI functions such as AcuPick, video metadata, Face Detection, Perimeter Protection and People Counting , offering a complete system for intelligent security and advanced analytics.✅ Built-in microphone:
Equipped with a built-in microphone , it allows audio recording synchronized with the video , improving the level of control and security of the monitored environment.✅ Alarm :
It supports advanced intelligent alarms with events such as intrusion, motion, anomalies and tampering, ensuring proactive and immediate protection .
It supports advanced intelligent alarms with events such as intrusion, motion, anomalies and tampering, ensuring proactive and immediate protection .
✅ Network Camera:
Designed as a professional IP camera , it supports comprehensive protocols (IPv4, IPv6, RTSP, ONVIF, P2P) for seamless integration into modern video surveillance systems.
✅ Functions:
It includes numerous advanced features such as WDR 140 dB, 3D NR, ROI, defog, privacy masking, smart search and AI H.265/H.264 encoding , ensuring always optimized images and efficient data management.
✅ Doors :
It has complete interfaces (RJ-45, audio and alarm inputs/outputs) , MicroSD support up to 1TB and PoE+/ePoE power supply , ensuring maximum connectivity and installation versatility.
Technical data sheet
| MODEL | 1/1.8" CMOS |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0007 [email protected] (Color, 30 IRE) 0.0004 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View | H: 112°; V: 58°; D: 137° |
| Iris Control | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1W (12VDC); 6.1W (PoE) Max.: (H.265 + WDR+ warm light + intelligence on): 13.2 W (12 VDC); 15.5W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61") (L × W × H) |
| Net Weight | 610 g (1.34 lb) |
| Gross Weight | 770 g (1.70 lb) |
