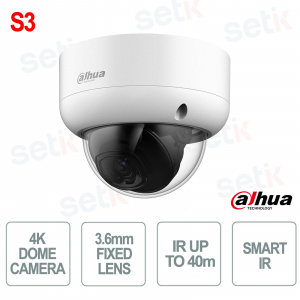

HAC-HDBW1801EA-A-S3 - is a camera with 3.6mm lens is a high-performance HDCVI dome camera designed to ensure professional video surveillance thanks to 4K Ultra HD resolution (3840×2160) and the advanced CMOS sensor, offering extremely sharp and detailed images. Equipped with Smart IR with a range of up to 40 meters and 3DNR technology, it ensures uniform night vision and noise reduction even in low-light environments. It integrates a built-in microphone for audio transmission over coaxial cable and Super Adapt function for automatic image optimization. The robust structure with IP67 and IK10 protection guarantees resistance to dust, water and vandalism, making it ideal for outdoor installations and critical environments. Dahua

Technical data sheet

referencia : HAC-HDBW1801EA-A-S3

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


HAC-HDBW1801EA-A-S3 | 8MP HDCVI DOME CAMERA FIXED LENS 3.6mm - SMART IR ILLUMINATION

Dahua

The Dahua HAC-HDBW1801EA-A-S3 with 3.6mm lens is an HDCVI dome camera designed to offer high-performance video surveillance thanks to 4K Ultra HD (3840×2160) resolution and an advanced CMOS sensor, ensuring extremely sharp and detailed images. Equipped with Smart IR with a range of up to 40 meters and 3DNR technology, it ensures uniform night vision and noise reduction even in low light conditions. It integrates a built-in microphone for audio acquisition over coaxial cable and a Super Adapt function for automatic image optimization. The robust structure with IP67 and IK10 protection makes it resistant to dust, water and vandalism, ideal for outdoor installations and critical environments.

Main specifications:

- 4K Ultra HD resolution for extremely detailed images

- 3.6mm fixed lens with wide viewing angle

- Smart IR up to 40m for advanced night vision

- 3DNR technology for video noise reduction

- Built-in microphone for audio recording

- Super Adapt for automatic performance adjustment

- IP67 and IK10 protection resistant to water, dust and shock

- CVI/CVBS/AHD/TVI compatibility for maximum integration

- HDCVI transmission over coaxial cable with long distance

- Sturdy and reliable metal structure

Further details

✅ Optics :
The 3.6mm fixed lens offers a wide field of view up to 86.8° horizontal , ensuring effective coverage of environments with a good balance between detail and depth, ideal for indoor and outdoor installations.
✅ Resolution:
The 4K CMOS sensor (3840×2160) ensures extremely sharp and detailed images , allowing precise identification of people and objects even over long distances.
✅ Smart IR Illumination:
Smart IR technology with a range of up to 40 meters automatically adjusts the intensity of the IR LEDs, ensuring uniform night vision without overexposure and improving image quality in dark conditions.
✅ Built-in Microphone:
Equipped with a built-in microphone with audio transmission over coaxial cable , it allows audio recording synchronized with video , increasing the level of security and evidence collection.
✅ Doors :
It features multi-format BNC video output (CVI/TVI/AHD/CVBS) and 12V DC power supply, offering maximum compatibility with existing systems and simple and versatile installation.
HAC-HDBW1801EA-A-S3 dimensions

Technical data sheet

MODEL HAC-HDBW1801EA-A-S3
Room
Image Sensor 4K CMOS
Max. Resolution 3840 (H) × 2160 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.01 [email protected] (Color, 30 IRE)
0.001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 65 dB
Illumination Distance IR: 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6 mm
Max. Openings F2.0
Field of View

H: 86.8°; V: 44.6°; D: 104.5°

Iris Control Fixed
Close Focus Distance 2.1 m (6.89 ft)
Video
Video Frame Rate CVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
AHD:
PAL: 4M@15 fps
NTSC: 4M@15 fps
TVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
CVBS:
PAL: 960H
NTSC: 960H
Resolution 4K (3840 × 2160); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR
WDR WDR
White Balance Car
Gain Control Car
Noise Reduction 3D NR
Illumination Mode Smart IR&WL(CVI,TVI); WL Mode; IR Mode
Mirror Yes
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: EN 55032; EN 55035;
Audio
Built-in Mic Yes
Audio Camera CVI; TVI
Pick-up Distance 8 m (26.25 ft)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply 12 VDC (±30%)
Power Consumption Max 2.8 W (12 VDC, IR on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material Metal
Product Dimensions Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51")
Net Weight 0.44 kg (0.97 lb)
Gross Weight 0.62 kg (1.37 lb)
Installation Wall mount; ceiling mount; vertical pole mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
