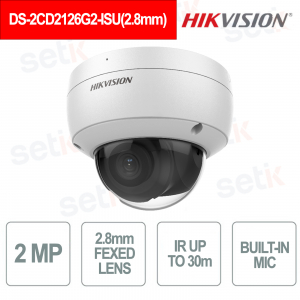

DS-2CD2126G2-ISU(2.8mm) – 2MP 2.8mm FIXED LENS IP DOME CAMERA - ACUSENSE - DEEP LEARNING FUNCTION - DARKFIGHTER - BUILT-IN MICROPHONE

Hikvision

The Hikvision DS-2CD2126G2-ISU with 2.8mm lens is a professional 2MP Full HD IP Dome camera designed to offer intelligent video surveillance with clear images and a wide viewing angle of up to 107° . Thanks to Powered-by-DarkFighter technology, 120 dB WDR and H.265+ compression, it guarantees high performance even in low-light environments and strong backlighting. The AcuSense system with Deep Learning distinguishes people and vehicles, reducing false alarms, while the IR illuminator up to 30 meters , the integrated microphone , microSD support up to 512GB and PoE power supply ensure maximum efficiency and security. IP67 and IK10 protection make it ideal for outdoor installations in residential, commercial and industrial environments.

Main features:

- 2MP Full HD 1920x1080 resolution

- 2.8mm fixed optics with a viewing angle of up to 107°

- AcuSense technology with people and vehicle detection

- Powered by DarkFighter for sharp images in low light

- Highly efficient H.265+ video compression

- WDR 120 dB for clear images even in backlight

- Smart IR illuminator up to 30 meters

- Built-in microphone for real-time audio security

- MicroSD support up to 512GB

- IEEE 802.3af PoE power supply

- IP67 protection against water and dust

- IK10 vandal-proof protection

- Deep Learning features with advanced perimeter protection

- Compatible with Hik-Connect, Hik-Central and ONVIF protocol

Further details

✅ Fixed optics :
The Hikvision camera integrates a 2.8mm fixed lens with a wide viewing angle of up to 107° horizontally , ideal for monitoring indoor and outdoor environments such as entrances, shops, offices, parking lots, and homes. The wide-angle lens allows for wider coverage of the monitored area, reducing blind spots and improving perimeter control.
✅ Resolution:
 The 2 Megapixel Progressive Scan CMOS sensor delivers high-definition images with a maximum resolution of 1920x1080 Full HD , ensuring smooth videos, sharp details and precise recognition of people and vehicles even during continuous recording or remote viewing.
✅ DarkFighter Technology :
Thanks to the advanced DarkFighter technology, this Hikvision IP camera ensures excellent performance in low light conditions, with sensitivity up to 0.002 Lux and IR night vision up to 30 meters , maintaining bright, detailed images with low digital noise even at night.
✅ AcuSense Technology:
Hikvision AcuSense intelligent technology uses deep learning algorithms to distinguish people and vehicles from other unwanted movements such as rain, animals, or leaves, dramatically reducing false alarms and increasing the effectiveness of professional video surveillance.
✅ Built-in microphone:
The built-in microphone enables real-time audio recording synchronized with video, improving security and allowing more comprehensive monitoring of sensitive environments such as offices, warehouses, reception areas and entrances.
✅ Deep Learning Function :
 This IP Network Camera supports advanced protocols such as ONVIF, RTSP, HTTPS and PoE , ensuring maximum compatibility with NVRs, video surveillance software and Hikvision systems. H.265+ compression also optimizes bandwidth and storage space without compromising video quality.
✅  Network Protocol:
 Deep Learning Function features include intelligent perimeter protection with intrusion, line crossing, area entry and exit detection, as well as support for human and vehicle classification, offering an advanced security system suitable for residential, commercial and industrial environments.

Technical data sheet

DS-2CD2126G2-ISU(2.8mm)
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
Lens Mount M12
Iris Type Fixed
Openings F1.4
Depth of Field 1.1 m to ∞
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50Hz: 25fps (1920×1080, 1280×720)
60Hz: 30fps (1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360),
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
Video Bit Rate

32 Kbps to 8 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering Yes
Network
Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels
Smooth Streaming

Yes
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client

iVMS-4200, Hik-Connect, Hik-Central
Web Browser

Plug-in required live view: IE 10, IE 11
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch

Yes
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512GB
Built-in Microphone Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 alarm input, 1 alarm output (max. 12 VDC, 30 mA)
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7.5W
Material

Metal
Dimension

Ø121.4 × 92.2 mm (Ø4.8" × 3.6")
Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight

Approx. 550 g (1.2 lb.)
With Package Weight

Approx. 800 g (1.8 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMC FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
LOA: IEC/EN 60950-1
Environment

CE-RoHS (2011/65/EU)
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection

IP67: IEC 60529-2013
