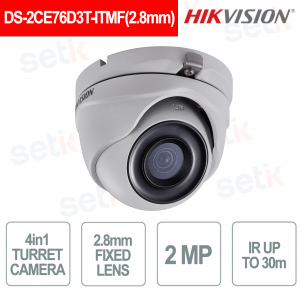

DS-2CE76D3T-ITMF(2.8mm) - 2MP EXIR Turret Camera with 2.8mm lens is a professional analog camera designed to guarantee clear images in all conditions thanks to the Full HD 1080p sensor and 120 dB WDR technology that improves backlight vision. Equipped with an EXIR 2.0 IR illuminator up to 30 meters , it offers high performance even in environments with extremely low brightness down to 0.005 Lux . 3D DNR technology reduces digital noise improving image quality, while IP67 protection ensures resistance to water and dust for indoor and outdoor installations. Compatible with TVI/AHD/CVI/CVBS signals, it represents a versatile and reliable solution for professional video surveillance systems. Hikvision
DS-2CE76D3T-ITMF(2.8mm) – 4IN1 TURRET CAMERA WITH 2.8mm FIXED LENS 2MP
The Hikvision DS-2CE76D3T-ITMF 2MP EXIR Turret with 2.8 mm lens is a professional analog camera designed to offer clear Full HD 1080p images even in low light conditions down to 0.005 Lux . Thanks to 120 dB WDR technology and 3D DNR system, it guarantees clear and detailed videos even in the presence of strong light contrasts and digital noise. The EXIR 2.0 IR illuminator up to 30 meters ensures high performance in night vision, while IP67 protection makes it resistant to water and dust for indoor and outdoor installations. Compatible with TVI/AHD/CVI/CVBS signals, it represents a versatile and reliable solution for professional video surveillance systems.
Main features:
- 2MP Full HD progressive CMOS sensor
- 2.8 mm fixed optics with 106° viewing angle
- 120dB Real WDR Technology
- EXIR 2.0 night vision up to 30 meters
- Ultra low light sensitivity down to 0.005 Lux
- 3D Digital Noise Reduction (DNR)
- TVI/AHD/CVI/CVBS compatibility
- IP67 protection against water and dust
- Video resolution 1920x1080
- Metal structure for professional installations
Further details
The Hikvision camera integrates a 2.8 mm fixed lens with a wide viewing angle of up to 106° , ideal for monitoring entrances, internal environments, car parks and commercial areas, ensuring extensive and detailed video coverage.
Thanks to the 2 MP Full HD 1080p progressive CMOS sensor, the camera offers sharp and detailed images with 1920x1080 resolution, ensuring high video quality both day and night.
The 4in1 switchable TVI/AHD/CVI/CVBS technology offers maximum installation flexibility and compatibility with different analog HD video surveillance systems, facilitating upgrades and replacements without modifying the existing infrastructure.
Technical data sheet
| DS-2CE76D3T-ITMF(2.8mm) | |
| Room | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.005 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm |
| Focal Length & FOV | 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm) |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings |
Brightness;Mirror;Sharpness;AGC |
| Frame Rate |
PAL: 1080p@25fps |
| Day/Night Mode |
Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) |
≥120 dB |
| Image Enhancement |
WDR;BLC;HLC |
| Noise Reduction |
3D DNR |
| Interface | |
| Video Output | 1 HD analog output; Switchable TVI/AHD/CVI/CVBS |
| General | |
| Power |
12 VDC ±25%, max. 4.6 W |
| Material |
Metal |
| Dimension |
89.47 mm × 68.2 mm (3.52" × 2.68") |
| Weight |
Approx. 240 g (0.53 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Language |
English |
| Approval | |
| Protection |
IP67 |
