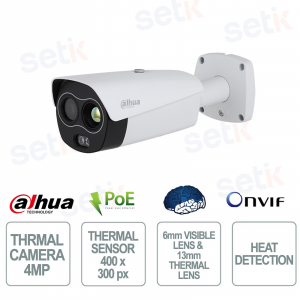

TPC-BF4441-B13F6-V1 - is a professional thermal IP bullet camera designed for perimeter protection and thermal monitoring over medium and long distances. It integrates a 400×300 px VOx thermal sensor and a 4 MP (2688×1520) optical camera with 13 mm thermal lens and 6 mm visible lens , offering high precision in the detection of people, vehicles and thermal anomalies. The advanced AI functions include heat detection, intrusion, line crossing, people and vehicle classification and smoke detection , significantly reducing false alarms. The solution is completed by two-way audio , integrated sound and light alarm , recording on MicroSD up to 512 GB , PoE/ePoE power supply and IP67 protection, ideal for professional security and thermal control applications. Dahua

Technical Data Sheet

referencia : TPC-BF4441-B13F6-V1

brand : Dahua

EAN: 6939554904899

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

TPC-BF4441-B13F6-V1 | POE THERMAL BULLET IP CAMERA WITH 6mm FIXED LENS - 13mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO


Dahua

The Dahua TPC-BF4441-B13F6-V1 is a professional thermal IP bullet camera designed for perimeter monitoring and advanced thermal anomaly detection. It combines a 400×300 px VOx thermal sensor with a 4 MP (2688×1520) optical camera , equipped with a 13 mm thermal lens and a 6 mm visible lens , ensuring high accuracy in medium and long distance applications. AI functions include heat detection, line crossing, intrusion, people and vehicle classification and smoke detection , ensuring intelligent surveillance with false alarm reduction. The features also include two-way audio , integrated sound and light alarm , MicroSD support up to 512 GB , PoE/ePoE power supply and IP67 protection for professional outdoor installations.

Main specifications:

- Thermal sensor 400×300

- 4 MP optical camera

- 13mm thermal optics and 6mm visible optics

- AI people and vehicles

- Smoke and heat detection

- Two-way audio

- Sound and light alarm

- PoE/ePoE

- IP67

Further details

✅ Optics :
 The TPC-BF4441-B13F6-V1 version integrates a 6mm F1.6 visible lens with a 4MP (2688×1520) CMOS sensor , offering high-definition images and a 56.1° field of view , ideal for monitoring perimeter areas, infrastructure and industrial sites.
✅ Thermal Optics :
 The 13 mm thermal optics guarantees high performance in the detection of thermal anomalies and heat sources at a distance, with a field of view of 20.92° × 15.77° , making it particularly suitable for security and fire prevention applications.
✅ Resolution:
The combination of a 400×300 px thermal sensor and a 4 MP optical camera allows for detailed scene visualization and the fusion of thermal and visible images , improving the identification of events and subjects.
✅ Thermal sensor:
The uncooled VOx sensor with NETD sensitivity ≤30 mK detects minute temperature differences, providing accurate and reliable thermal monitoring even in harsh environmental conditions and in total darkness.
✅ Artificial Intelligence:
Advanced AI capabilities support heat detection , tripwire , intrusion , people and vehicle classification , and smoke detection , significantly reducing false alarms and improving the effectiveness of surveillance activities.
✅ Functions:
The camera features Fusion Mode , Picture in Picture (PIP) , hot and cold spot tracking , 19x digital zoom , 18 color palettes and advanced image processing systems for complete management of thermal monitoring tasks.

✅ Two-way audio:
The Two-Way Audio function with dedicated audio input and output enables real-time communication between the operator and the monitored area, improving operational control and event management.
✅ Sound alarm:
The integrated sound and light alarm system activates acoustic signals and local white light in the event of intrusion or detection of anomalies, increasing the deterrent effect and speed of intervention.
✅ Network Camera:
Equipped with advanced IP connectivity with support for ONVIF, HTTP, HTTPS, RTSP, IPv4/IPv6, SNMP, FTP and Dahua SDK protocols, it guarantees perfect integration with NVR, VMS and professional video surveillance systems.
✅ Doors:
The equipment includes 10/100 Mbps RJ45 port , BNC CVBS video output , 2 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output and RS-485 port , offering wide possibilities for integration with external devices.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing cabling costs, and ensuring greater operational reliability.

Technical data sheet

TPC-BF4441-B13F6-V1
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤35 mK (@f/1.0)
Field of View H: 20.92°; V: 15.77°
Thermal Focus Control Fixed-focal
Close Focus Distance 4 m
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.7" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition ≥1100 TVL
Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Fixed
Image Flip 180°; Mirror
Exposure Compensation Yes
Visible Focus Control Fixed-focal
Field of View H: 56.1°; V: 30.1°
Close Focus Distance 2.5 m
Openings F1.6
Illuminator On/Off Control Auto; manual
Illumination Distance 30 m
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×960; 1280×720;
400×300; 1280 × 960 (default)
Sub stream: 640 × 512; 640×480;
400 × 300;
400 × 300 (default)
Visible:
Main stream: 2688 × 1520; 2560 × 1440; 1920×1080; 1280 × 720); 704×576;
2560 × 1440 (default)
Sub streams: 704 × 576; 352×288;
704 × 576 (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression G.711a; G.711 mu
Image Encoding Format JPEG
Function
Two-way Audio Yes
Sound and Light Alarm Local audio and white light alarm prompts
Network Protocol IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Region of Interest (RoI) Yes (customizable)
Storage FTP; Micro SD card (512 GB, hot swapping)
Interoperability ONVIF; CGI; DaHua SDK
Browser IE; Firefox; Chrome; Safari
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection;
memory card state detection; memory space detection
Fusion Mode Yes. Off by default
PIP Yes
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
Perimeter Protection Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Smoke Detection Yes
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 2
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 12 VDC ± 20%, PoE (802.3af), ePoE
Power Consumption Basic: 4.68W (12VDC); 5.4W (PoE)
Max: 11.88W (12VDC); 12.8W (PoE)
ePoE Yes
Environment
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP67
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Structure
Product Dimensions 300.9mm × 130.2mm × 120.1mm
Packaging Dimensions 365 mm × 175 mm × 176 mm
Net Weight ≤1.4 kg
Gross Weight ≤1.9 kg
Lens Included
Certification
Certifications CE/FCC
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
