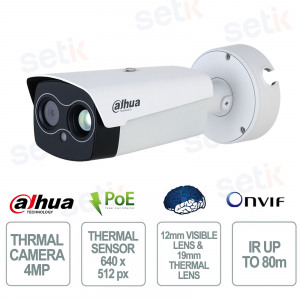

Dahua 4MP AI 19mm/12mm Thermal Camera with Fire Detection, PoE, IP67 and IK10

Dahua 4MP AI 19mm/12mm Thermal Camera with Fire Detection, PoE, IP67 and IK10

 
Optic calculation
-56%

TPC-BF5641-B19F12-J-S5-V1 - is a professional thermal IP camera designed for advanced perimeter protection and early fire detection. It integrates a 640×512 px VOx thermal sensor with NETD sensitivity ≤20 mK and a 4 MP (2688×1520) optical camera equipped with 19 mm thermal lens and 12 mm visible lens , ensuring precise monitoring and detailed images even in total darkness. Thanks to the powerful Xinghan Large-Scale AI Model , it supports Heat Detection, Smoke Detection, Tripwire, Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms. The solution is completed by two-way audio , integrated sound and light alarm , illumination up to 80 meters , PoE/ePoE support, MicroSD memory up to 512 GB , IP67 protection, IK10 resistance and TPM 2.0 security module, ideal for industrial sites, critical infrastructures and high-security areas. Dahua

Technical Data Sheet

referencia : TPC-BF5641-B19F12-J-S5-V1

brand : Dahua

EAN: 6937552410794

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

TPC-BF5641-B19F12-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 12mm FIXED LENS - 19mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE DETECTION


Dahua

The Dahua TPC-BF5641-B19F12-J-S5-V1 is a professional thermal IP camera designed for advanced perimeter protection and early fire detection. It integrates a 640×512 px VOx thermal sensor with NETD sensitivity ≤20 mK and a 4 MP (2688×1520) optical camera equipped with 19 mm thermal lens and 12 mm visible lens , ensuring detailed images and reliable detection even in total darkness. Thanks to the powerful Xinghan Large-Scale AI Model , it supports Heat Detection, Smoke Detection, Tripwire, Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms. The solution is completed by two-way audio , an integrated sound and light alarm , illumination up to 80 metres , PoE/ePoE support, MicroSD memory up to 512 GB , IP67 protection, IK10 resistance and a TPM 2.0 security module for high-reliability professional applications.

Main specifications:

- Thermal sensor 640×512

- 4 MP optical camera

- 19mm thermal optics and 12mm visible optics

- AI people and vehicles

- Smoke and fire detection

- Two-way audio

- Sound and light alarm

- PoE/ePoE

- IP67 and IK10

Further details

✅ Optics :
 The camera integrates a 12mm F1.7 visible lens combined with a 4MP (2688×1520) CMOS sensor , offering high definition images and a 37.3° field of view , ideal for accurate monitoring of large areas and for professional security applications.
✅ Thermal Optics :
 The 19mm thermal optic with fixed focus technology provides a 22.9° × 18.4° field of view , allowing precise detection of people, vehicles and thermal anomalies even at long distances and in complete darkness.
✅ Resolution:
The combination of a 640×512 px thermal sensor and a 4 MP optical camera allows for a detailed view of the scene with sharp images and perfect integration between the thermal and visible channels.
✅ Thermal sensor:
The uncooled VOx sensor with NETD sensitivity ≤20 mK detects minute temperature changes, ensuring high performance in fire prevention, hot spot detection and advanced perimeter surveillance.
✅ Artificial Intelligence:
The innovative Xinghan Large-Scale AI Model supports Heat Detection , Smoke Detection , Tripwire , Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms and improving notification accuracy.
✅ Functions:
Includes advanced features such as Fusion Mode , Picture in Picture (PIP) , Cold/Hot Spot Trace , 24x digital zoom , 18 thermal palettes , DDE detail enhancement and 2D/3D NR noise reduction for professional image viewing.

✅ Two-way audio:
The Two-Way Audio function enables real-time communication thanks to the presence of dedicated audio input and output , improving event management and interaction with the monitored area.
✅ Sound alarm:
The integrated audible and visual alarm system automatically activates audible warnings and visual signals in the event of intrusion, smoke detection, or thermal anomalies, increasing the system's deterrent effectiveness.
✅ Network Camera:
It supports professional protocols such as ONVIF , RTSP , HTTPS , IPv4/IPv6 , SNMP , FTP , SFTP and 802.1X , ensuring full integration with NVR, VMS software and IP video surveillance infrastructures.
✅ Doors:
The hardware features include 10/100 Mbps RJ45 port , BNC CVBS analog video output , 2 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output and RS-485 port , offering wide connection flexibility.
✅ PoE:
802.3af and ePoE support allows power and data to be carried over a single Ethernet cable, simplifying installation, reducing cabling costs, and increasing system reliability.

Technical data sheet

TPC-BF5641-B19F12-J-S5-V1
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) × 512 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤20 mK (@f/1.0)
Field of View H: 22.9°: V: 18.4°
Thermal Focus Control Fixed-focal
Close Focus Distance 8 m (26.25 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 24 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL
Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Fixed
Image Flip 180°; Mirror
Field of View H: 37.3°; V: 21.4°
Close Focus Distance 7.4 m (24.28 ft)
Openings F1.7
Illuminator On/Off Control Auto; manual
Illumination Distance 80 m (262.47 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default);
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default);
Sub streams: 704 × 576; 352×288; 352 × 288 (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression G.711a; G.711mu; PCM; AAC
Image Encoding Format JPEG
Function
Two-way Audio Yes
Sound and Light Alarm Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage FTP; Micro SD card (optional)
Interoperability ONVIF; CGI; DaHua SDK
Browser IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host Up to 12 (total bandwidth: 64 MB)
Security Network disconnection detection; IP conflict detection;
memory card state detection; memory space detection
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode Yes.
PIP Yes
Micro SD Card (Max.) 512 GB
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
Perimeter Protection Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Smoke Detection Yes
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 2
Alarm Linkage Recordings on SD card; digital output; e-mail; snapshot
Alarm Event No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 12-24 VDC (±10%), PoE (802.3af)
Power Consumption Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on)
ePoE Yes
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP67
Product Dimensions 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H)
Packaging Dimensions 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)
Net Weight ≤2.35 kg (5.18 lb)
Gross Weight ≤2.7 kg (5.95 lb)
Lens Included
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Vandal-proof Rating Enclosure: IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
