TPC-BF5641-B50Z3-J-S5-V1 - is a hybrid IP thermal camera designed for ultra-long-range perimeter protection and early fire detection in critical environments. It integrates a 640×512 VOx thermal sensor with 50 mm thermal lens and a 4 MP visible camera with 10-30 mm varifocal motorized lens , offering detailed images and high performance even over long distances. Thanks to Xinghan Artificial Intelligence , it supports fire, smoke, intrusion detection and human/vehicle classification with false alarm reduction. The equipment also includes two-way audio , sound and light alarm , illumination up to 80 meters, PoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cyber security. Dahua
BUSQUE INSTALADOR

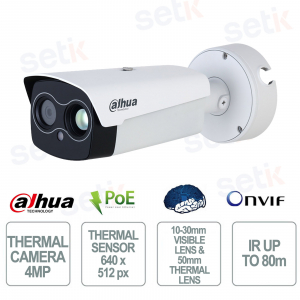

TPC-BF5641-B50Z3-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 10-30mm VARIFOCAL LENS - 50mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE DETECTION
The Dahua TPC-BF5641-B50Z3-J-S5-V1 is a hybrid thermal IP camera designed for large area monitoring and advanced perimeter protection. It combines a 640×512 VOx thermal sensor with 50 mm thermal lens and a 4 MP visible camera with 10-30 mm varifocal motorized lens , offering high performance in detecting people, vehicles and thermal anomalies over long distances. Thanks to Xinghan Artificial Intelligence , it supports fire, smoke, intrusion detection and human/vehicle classification with false alarm reduction. Equipped with two-way audio , audible and light alarm , illumination up to 80 meters, PoE , IP67/IK10 protection and TPM 2.0 module, it represents a professional solution for critical infrastructures and high-security sites.
Main specifications:
- Thermal sensor 640×512
- 4 MP optical camera
- 50mm thermal optics and 10-30mm visible optics
- AI people and vehicles
- Smoke and fire detection
- Two-way audio
- Sound and light alarm
- PoE/ePoE
- IP67 and IK10
Further details
✅ Optics :
The camera integrates a 10-30mm F1.7 motorized varifocal visible lens , which allows you to precisely adjust the framing and level of detail, suitable for both monitoring large areas and controlling specific points from a long distance.
The camera integrates a 10-30mm F1.7 motorized varifocal visible lens , which allows you to precisely adjust the framing and level of detail, suitable for both monitoring large areas and controlling specific points from a long distance.
✅ Thermal Optics :
The 50mm fixed thermal optic is designed for very long-range applications, allowing the detection of thermal anomalies, people, vehicles and fires even in complex scenarios and over large perimeters.
The 50mm fixed thermal optic is designed for very long-range applications, allowing the detection of thermal anomalies, people, vehicles and fires even in complex scenarios and over large perimeters.
✅ Resolution:
The combination of a 640 × 512 px thermal sensor and a 4 MP (2688 × 1520 px) visible camera ensures detailed images and precise thermographic analysis for professional security applications.
✅ Thermal sensor:
Equipped with an uncooled VOx sensor with NETD sensitivity ≤20 mK , it can detect minute temperature changes, improving the reliability of fire monitoring and prevention.
✅ Artificial Intelligence:
Powered by the Xinghan Large-Scale AI model, the camera performs human/vehicle classification , intelligent target filtering and false alarm reduction, increasing the effectiveness of video surveillance.
✅ Functions:
It supports fire detection , smoke detection , tripwire , intrusion , hot and cold spot monitoring, Fusion and PIP (Picture in Picture) modes for advanced thermal and optical image management.
✅ Two-way audio:
The Two-Way Audio function enables real-time communication between the operator and the monitored area, useful for immediate interventions and deterrence activities.
✅ Sound alarm:
The system integrates an intelligent acoustic and visual alarm that activates automatically in the event of critical events, improving prevention and site safety.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, IPv4/IPv6, SNMP, FTP and ONVIF protocols, it allows perfect integration with VMS software and professional security systems.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs and 2 alarm outputs , audio input and output , RS-485 port and BNC analog video output, offering wide connection flexibility.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing cabling costs.Technical data sheet
| TPC-BF5641-B50Z3-J-S5-V1 | |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤20 mK (@f/1.0) |
| Field of View | H: 8.8°; V: 7.0° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 55 m (180.45 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB |
| White Balance | Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180°; Mirror |
| Field of View | H: 42°–15°;V: 22.8°–8.4° |
| Close Focus Distance | 9 m (29.53 ft) |
| Openings | F1.7 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B |
| Video Compression | Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM; AAC |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) | Yes |
| Storage | FTP; Micro SD card (optional) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host | Up to 12 (total bandwidth: 64 MB) |
| Security | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes. |
| PIP | Yes |
| Micro SD Card (Max.) | 512 GB |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes |
| Port | |
| Analog Output | 1 × CVBS output; BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Recordings on SD card; digital output; e-mail; snapshot |
| Alarm Event | No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Lens | Included |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Vandal-proof Rating | Enclosure: IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certification | |
| Certifications | THERE IS |
