TPC-BF5641-TB5F4-J-S5-V1 - is a hybrid IP thermal camera designed for perimeter protection and early fire detection in outdoor environments. It integrates a 640×512 VOx thermal sensor with 5 mm thermal lens and a 4 MP visible camera with 4 mm lens , offering a wide field of view and effective monitoring of sensitive areas. Thanks to Xinghan Artificial Intelligence , it supports fire, smoke, intrusion, line crossing and human/vehicle classification detection with false alarm reduction. The equipment also includes two-way audio , sound and light alarm , illumination up to 80 meters, PoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cybersecurity. Dahua
BUSQUE INSTALADOR

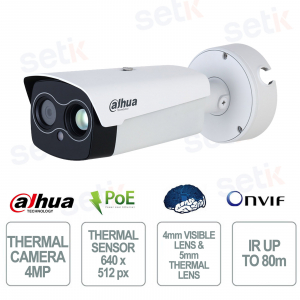

TPC-BF5641-TB5F4-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 4mm FIXED LENS - 5mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION
The Dahua TPC-BF5641-TB5F4-J-S5-V1 is a hybrid thermal IP camera designed for perimeter protection and early fire detection in outdoor environments. Thanks to the 640×512 VOx thermal sensor with 5 mm thermal lens and the 4 MP visible camera with 4 mm lens , it offers a wide field of view and reliable monitoring of sensitive areas. Xinghan Artificial Intelligence enables the detection of fire, smoke, intrusion and human/vehicle classification , significantly reducing false alarms. The features include two-way audio , audible and light alarm , illumination up to 80 meters, PoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cyber security.
Main specifications:
- Thermal sensor 640×512
- Thermal optics: 5 mm
- Visible camera: 4 MP CMOS
- Visible optics: 4mm F1.6
- AI Xinghan: Man/Vehicle
- Smoke and fire detection
- Two-way audio
- Sound and light alarm
- Illumination: Up to 80 m
- Power supply: PoE 802.3af
- IP67 and IK10
- Cybersecurity: TPM 2.0 integrated
Further details
✅ Optics :
The camera integrates a 4mm F1.6 visible lens that offers a wide viewing angle , ideal for monitoring entrances, fences, car parks and open areas, ensuring clear and detailed images in all operating conditions.
The camera integrates a 4mm F1.6 visible lens that offers a wide viewing angle , ideal for monitoring entrances, fences, car parks and open areas, ensuring clear and detailed images in all operating conditions.
✅ Thermal Optics :
The 5mm fixed thermal optic is designed for surveillance of large areas and for the early detection of thermal anomalies, fires and intrusions, ensuring effective coverage even in total darkness.
The 5mm fixed thermal optic is designed for surveillance of large areas and for the early detection of thermal anomalies, fires and intrusions, ensuring effective coverage even in total darkness.
✅ Resolution:
Thanks to the combination of 640 × 512 pixel thermal sensor and 4 MP (2688 × 1520 pixels) optical camera , the device provides detailed images and accurate thermographic information for advanced security.
✅ Thermal sensor:
The uncooled VOx sensor with NETD sensitivity ≤20 mK detects minute temperature changes, allowing you to quickly locate hot spots, thermal anomalies and potential fire hazards.
✅ Artificial Intelligence:
Xinghan Large-Scale AI Model technology supports intelligent classification of people and vehicles , improving alarm accuracy and dramatically reducing false events generated by irrelevant elements.
✅ Functions:
Includes fire detection , smoke detection , tripwire , intrusion , hot and cold spot tracking , Fusion and Picture in Picture (PIP) modes for complete management of thermal and optical images.
✅ Two-way audio:
The Two-Way Audio function allows immediate communication between the operator and the monitored area, facilitating rapid interventions and real-time deterrence activities.
✅ Sound alarm:
The system features an integrated acoustic and visual alarm , which can be activated automatically in the event of critical events, improving the ability to prevent and respond to threats.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, RTP, IPv4/IPv6, SNMP, SFTP and ONVIF protocols, it guarantees perfect integration with VMS software and professional video surveillance systems.
✅ Doors:
It has a 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input and output , RS-485 port and BNC analog video output, ensuring maximum connection versatility.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing infrastructure costs.Technical data sheet
| TPC-BF5641-TB5F4-J-S5-V1 | |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤20 mK (@f/1.0) |
| Field of View | H: 90.0°: V: 70.7° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 0.6 m (1.97 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB |
| White Balance | Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180°; Mirror |
| Field of View | H: 87.0°; V: 47.3° |
| Close Focus Distance | 1.2 m (3.94 ft) |
| Openings | F1.6 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B |
| Video Compression | Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM; AAC |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) | Yes |
| Storage | FTP; Micro SD card (optional) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host | Up to 12 (total bandwidth: 64 MB) |
| Security | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes. |
| PIP | Yes |
| Micro SD Card (Max.) | 512 GB |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes |
| Port | |
| Analog Output | 1 × CVBS output; BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Recordings on SD card; digital output; e-mail; snapshot |
| Alarm Event | No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Lens | Included |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Vandal-proof Rating | Enclosure: IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certification | |
| Certifications | THERE IS |
