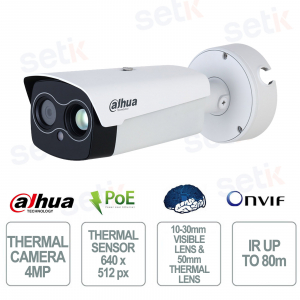

TPC-BF5641-TB50Z3-J-S5-V1 - is a high-performance hybrid IP thermal camera designed for large-area perimeter protection and early fire detection. It integrates a 640×512 VOx thermal sensor with a 50 mm thermal lens and a 4 MP visible camera with a 10-30 mm varifocal motorized lens , ensuring detailed images and long-distance detection capabilities. Thanks to Xinghan Artificial Intelligence , it supports fire, smoke, intrusion, line crossing and human/vehicle classification detection , significantly reducing false alarms. The equipment also includes two-way audio , sound and light alarm , illumination up to 80 meters, PoE/ePoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cybersecurity. Dahua
BUSQUE INSTALADOR
TPC-BF5641-TB50Z3-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 120-30mm VARIFOCAL LENS - 50mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION
The Dahua TPC-BF5641-TB50Z3-J-S5-V1 is a high-performance hybrid thermal IP camera designed for perimeter protection of large areas, industrial sites and critical infrastructures. Thanks to the 640×512 VOx thermal sensor with 50 mm thermal lens and the 4 MP visible camera with 10-30 mm varifocal motorized lens , it offers detection and identification capabilities over long distances. Xinghan Artificial Intelligence supports fire, smoke, intrusion detection and human/vehicle classification , drastically reducing false alarms. The features include two-way audio , sound and light alarm , illumination up to 80 m, PoE/ePoE , IP67/IK10 protection and TPM 2.0 module for advanced cyber security.
Main specifications:
- Thermal sensor 640×512
- Thermal optics: 50 mm
- Visible camera: 4 MP CMOS
- Visible optics: 10-30 mm F1.7
- AI Xinghan: Man/Vehicle
- Smoke and fire detection
- Two-way audio
- Sound and light alarm
- Illumination: Up to 80 m
- Power supply: PoE 802.3af
- IP67 and IK10
- Cybersecurity: TPM 2.0 integrated
Further details
✅ Optics :
The camera integrates a 10-30 mm F1.7 motorized varifocal visible lens that allows the frame to be adapted to operational needs, offering detailed images and precise control of large areas, perimeters and critical infrastructures.
The camera integrates a 10-30 mm F1.7 motorized varifocal visible lens that allows the frame to be adapted to operational needs, offering detailed images and precise control of large areas, perimeters and critical infrastructures.
✅ Thermal Optics :
The 50mm fixed thermal optic is designed for ultra-long range detection of people, vehicles and thermal anomalies, making it ideal for advanced perimeter security and large industrial site monitoring applications.
The 50mm fixed thermal optic is designed for ultra-long range detection of people, vehicles and thermal anomalies, making it ideal for advanced perimeter security and large industrial site monitoring applications.
✅ Resolution:
The combination of a 640 × 512 pixel thermal sensor and a 4 MP (2688 × 1520 pixel) optical camera ensures clear images and high-precision thermographic analysis, improving the ability to verify and identify events.
✅ Thermal sensor:
Equipped with an uncooled VOx sensor with NETD sensitivity ≤20 mK , the camera detects minimal temperature changes and allows for the early identification of hot spots, overheating and fire outbreaks.
✅ Artificial Intelligence:
The powerful Xinghan Large-Scale AI Model provides intelligent human/vehicle classification , advanced target filtering and significant false alarm reduction, increasing the reliability of professional video surveillance.
✅ Functions:
It includes fire detection , smoke detection , tripwire , intrusion , Cold/Hot Spot Trace , Fusion mode and Picture in Picture (PIP) , allowing advanced management of thermal and visible images in a single platform.
✅ Two-way audio:
The Two-Way Audio function allows real-time communication between the operator and the monitored area, facilitating remote control, prevention and deterrence activities.
✅ Sound alarm:
The system integrates an intelligent acoustic and luminous alarm that can be activated automatically in the event of intrusions, fires or configured events, increasing safety and speed of intervention.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, RTP, IPv4/IPv6, SNMP, QoS, SFTP, 802.1X and ONVIF protocols, it guarantees perfect integration with NVR, VMS and professional IP video surveillance platforms.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input , audio output , RS-485 port and BNC analog video output, offering maximum flexibility of connection and integration.
✅ PoE:
802.3af and ePoE support allows power and data to be carried over a single Ethernet cable, simplifying installation, reducing cabling costs, and improving system efficiency.Technical data sheet
| TPC-BF5641-TB50Z3-J-S5-V1 | |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤20 mK (@f/1.0) |
| Field of View | H: 8.8°; V: 7.0° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 55 m (180.45 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB |
| White Balance | Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180°; Mirror |
| Field of View | H: 42°–15°;V: 22.8°–8.4° |
| Close Focus Distance | 9 m (29.53 ft) |
| Openings | F1.7 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B |
| Video Compression | Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM; AAC |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) | Yes |
| Storage | FTP; Micro SD card (optional) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host | Up to 12 (total bandwidth: 64 MB) |
| Security | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes. |
| PIP | Yes |
| Micro SD Card (Max.) | 512 GB |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes |
| Port | |
| Analog Output | 1 × CVBS output; BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Recordings on SD card; digital output; e-mail; snapshot |
| Alarm Event | No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Lens | Included |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Vandal-proof Rating | Enclosure: IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certification | |
| Certifications | THERE IS |
