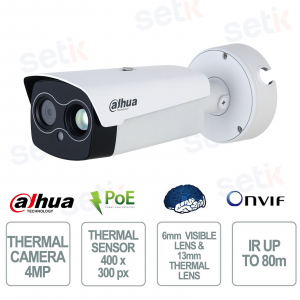

TPC-BF5441-B13F6-J-S5-V1 - is a hybrid IP thermal camera designed for intelligent perimeter protection and early fire detection in industrial and commercial environments. Equipped with a 400×300 VOx thermal sensor with a 13 mm thermal lens and a 4 MP visible camera with a 6 mm lens , it guarantees detailed images and reliable monitoring even in total darkness. Xinghan Artificial Intelligence supports fire, smoke, intrusion, line crossing and human/vehicle classification detection , drastically reducing false alarms. The camera also features two-way audio, audible and light alarm, illumination up to 80 meters, PoE/ePoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cybersecurity. Dahua
BUSQUE INSTALADOR
TPC-BF5441-B13F6-J-S5-V11 | POE THERMAL BULLET IP CAMERA 6mm FISA LENS - 13mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION
The Dahua TPC-BF5441-B13F6-J-S5-V1 is a hybrid thermal IP camera designed for intelligent perimeter protection and early fire detection in industrial, logistics and commercial environments. Thanks to the 400×300 VOx thermal sensor with 13 mm thermal lens and the 4 MP visible camera with 6 mm lens , it offers detailed images and reliable monitoring in any lighting conditions. Xinghan Artificial Intelligence supports fire, smoke, intrusion detection and human/vehicle classification , significantly reducing false alarms. The features also include two-way audio , sound and light alarm , illumination up to 80 m, PoE/ePoE , IP67/IK10 protection and TPM 2.0 module for advanced cybersecurity.
Main specifications:
- 400 × 300 VOx thermal sensor
- Thermal optics: 13 mm
- Visible camera: 4 MP CMOS
- Visible optics: 6mm F1.6
- AI Xinghan: Man/Vehicle
- Smoke and fire detection
- Two-way audio
- Sound and light alarm
- Illumination: Up to 80 m
- Power: PoE 802.3af / ePoE
- IP67 and IK10
- Cybersecurity: TPM 2.0 integrated
Further details
✅ Optics :
The camera integrates a 6mm F1.6 visible lens that offers a perfect balance between wide frame and level of detail, making it ideal for monitoring perimeters, industrial areas, parking lots and critical infrastructure.
The camera integrates a 6mm F1.6 visible lens that offers a perfect balance between wide frame and level of detail, making it ideal for monitoring perimeters, industrial areas, parking lots and critical infrastructure.
✅ Thermal Optics :
The 13mm fixed thermal optic ensures high performance in detecting people, vehicles and thermal anomalies at medium distances, allowing constant monitoring even in total darkness or difficult weather conditions.
The 13mm fixed thermal optic ensures high performance in detecting people, vehicles and thermal anomalies at medium distances, allowing constant monitoring even in total darkness or difficult weather conditions.
✅ Resolution:
The combination of a 400 × 300 pixel thermal sensor and a 4 MP (2688 × 1520 pixel) optical camera allows for detailed images and precise thermographic data for professional security and fire prevention applications.
✅ Thermal sensor:
Equipped with an uncooled VOx sensor with NETD sensitivity ≤20 mK and 12 μm pixel pitch, the camera detects minute temperature changes, improving the identification of hot spots and potentially dangerous situations.
✅ Artificial Intelligence:
The Xinghan Large-Scale AI Model system uses advanced human/vehicle classification algorithms, intelligent target filtering and false alarm reduction, ensuring more accurate and efficient monitoring.
✅ Functions:
It includes fire detection , smoke detection , tripwire , intrusion , Cold/Hot Spot Trace , Fusion mode and Picture in Picture (PIP) , offering complete management of thermal and optical images in a single solution.
✅ Two-way audio:
The Two-Way Audio function allows real-time communication between the operator and the monitored area, ideal for control activities, rapid intervention and remote deterrence.
✅ Sound alarm:
The system integrates an intelligent acoustic and luminous alarm that can be automatically activated in case of intrusions, fires or other configured events, increasing the security of the protected area.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, RTP, IPv4/IPv6, SNMP, QoS, SFTP, 802.1X and ONVIF protocols, it ensures maximum interoperability with NVR, VMS software and professional IP video surveillance platforms.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input , audio output , RS-485 port and BNC analog video output, offering high flexibility of integration and connection.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing cabling costs, and improving system efficiency.Technical data sheet
| TPC-BF5441-B13F6-J-S5-V1 | |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 400 (H) × 300 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤20 mK (@f/1.0) |
| Field of View | H: 21.0°; V: 16.0° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 4 m (13.12 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB |
| White Balance | Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Manual/Auto |
| Image Flip | 180°; Mirror |
| Field of View | H: 55.3°; V: 30.0° |
| Close Focus Distance | 2.5 m (8.20 ft) |
| Openings | F1.6 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B |
| Video Compression | Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM; AAC |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) | Yes |
| Storage | FTP; Micro SD card (optional) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host | Up to 12 (total bandwidth: 64 MB) |
| Security | Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes |
| PIP | Yes |
| Micro SD Card (Max.) | 512 GB |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes (by pixel) |
| Port | |
| Analog Output | 1 × CVBS output; BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Recordings on SD card; digital output; e-mail; snapshot |
| Alarm Event | No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Lens | Included |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Vandal-proof Rating | Enclosure: IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certification | |
| Certifications | THERE IS |
