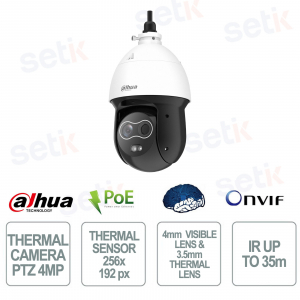

TPC-SD2241-B3F4-DW-S2 Thermal Speed Dome Camera 4MP AI PTZ IP66 PoE+ - Dahua

TPC-SD2241-B3F4-DW-S2 Thermal Speed Dome Camera 4MP AI PTZ IP66 PoE+ - Dahua

 
Optic calculation
-56%

TPC-SD2241-B3F4-DW-S2 - is a bispectral thermal speed dome camera designed for perimeter protection and advanced thermal detection in outdoor environments. Equipped with a 256×192 VOx thermal sensor and a 4MP CMOS optical sensor , it offers reliable images and accurate analysis in any lighting conditions. The combination of 3.5mm thermal lens and 4mm visible lens ensures effective monitoring of small to medium areas with thermal and visible image fusion technology. Artificial Intelligence functions support human/vehicle classification, heat, smoke and call detection, while two-way audio , sound and light alarm , 360° PTZ rotation, PoE+ support and IP66 protection ensure high performance for professional security applications. Dahua

Technical Data Sheet

referencia : TPC-SD2241-B3F4-DW-S2

brand : Dahua

EAN: 6923172535771

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

TPC-SD2241-B3F4-DW-S2 | POE PTZ THERMAL IP CAMERA WITH 4mm FIXED LENS - 3.5mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - HEAT AND SMOKE DETECTION


Dahua

The Dahua TPC-SD2241-B3F4-DW-S2 is a bispectral thermal speed dome camera designed for intelligent perimeter protection and advanced thermal detection. Thanks to the 256×192 VOx thermal sensor and the 4 MP CMOS optical sensor , it offers detailed and reliable images in any environmental conditions. The combination of 3.5 mm thermal lens and 4 mm visible lens enables effective monitoring of outdoor areas with thermal and visible image fusion technology. Artificial Intelligence functions support human/vehicle classification, heat, smoke, intrusion and call detection, while two-way audio , sound and light alarm , 360° PTZ movement, PoE+ support and IP66 protection ensure professional performance for advanced security.

Main specifications:

- 256 × 192 VOx thermal sensor

- 4 MP CMOS optical sensor

- 3.5mm thermal optics

- Visible optics 4 mm

- Continuous 360° PTZ

- AI: Human/Vehicle

- Heat and smoke detection

- Two-way audio

- Sound and light alarm

- PoE+ and IP66

Further details

✅ Optics :
 The 4mm visible lens offers a wide 71.2° field of view, ideal for monitoring outdoor areas, perimeters and access points with detailed images and high scene coverage.
✅ Thermal Optics :
 The 3.5 mm thermal optics enable the detection of heat sources and thermal anomalies over medium distances, making it particularly effective for security and fire prevention applications.
✅ Resolution:
The 4 MP optical sensor with a resolution of up to 2336×1752 pixels ensures sharp and detailed images, allowing for accurate visual verification of detected events.
✅ Thermal sensor:
The 256×192 uncooled VOx sensor with NETD sensitivity ≤40 mK detects minute temperature differences, ensuring continuous monitoring even in total darkness, fog or smoke.
✅ PTZ Camera:
The motorized PTZ system supports continuous 360° Pan rotation and Tilt tilt from -15° to +90° , with up to 300 presets , allowing complete coverage of the monitored area and quick movements to points of interest.
✅ Artificial Intelligence:
Advanced AI Analytics features enable intelligent classification of people and vehicles , improving system accuracy and significantly reducing false alarms.
✅ Functions:
It integrates Heat Detection , Cold/Hot Spot Trace , Tripwire , Intrusion Detection , Smoking Detection , Call Detection , Fusion Mode and PIP , providing complete control of security and thermal anomalies.

✅ Two-way audio:
The Two-Way Audio function enables real-time voice communication between the operator and the monitored area, facilitating remote management of events and emergencies.
✅ Sound alarm:
The integrated light and sound alarm allows you to immediately report intrusions, crossing protected areas or other risky conditions, increasing the deterrent effect.
✅ Network Camera:
Compatible with professional protocols such as ONVIF, RTSP, HTTPS, IPv4/IPv6, SNMP, QoS and NTP , it guarantees perfect integration with VMS software and advanced video surveillance systems.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 1 alarm output , audio input and output , BNC CVBS video output and RS-485 port , providing ample connection possibilities with external devices.
✅ PoE:
PoE+ (802.3at) support allows the camera to be powered and transmitted data over a single Ethernet cable, simplifying installation and reducing wiring costs and time.

Technical data sheet

TPC-SD2241-B3F4-DW-S2
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 256 (H) × 192 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤40 mK (@f/1.0)
Focal Length 3.5 mm
Field of View H: 50.6°; V: 37.8°
Thermal Focus Control Fixed-focal
Close Focus Distance 0.5 m (1.64 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 16 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.7" CMOS
Max. Resolution 2336 (H) × 1752 (V)
Pixel 4 MP
Horizontal Definition

≥1600 TVL
Min. Illumination Color: 0.05 lux
Black & white: 0.005 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°
Exposure Compensation Yes
Visible Focus Control Fixed-focal
Focal Length 4mm
Field of View H: 71.2°; V: 52°
Close Focus Distance 1 m (3.28 ft)
Openings F1.6
Illuminator On/Off Control Auto; manual
Illumination Distance 35 m (114.83 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression
