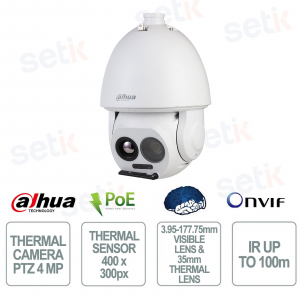

Dahua TPC-SD5441-B35Z45 4MP AI PTZ Thermal Camera 45x Zoom 35mm Thermal Lens IP66 Two-Way Audio

Dahua TPC-SD5441-B35Z45 4MP AI PTZ Thermal Camera 45x Zoom 35mm Thermal Lens IP66 Two-Way Audio
-56%

TPC-SD5441-B35Z45 - is a professional PTZ thermal camera designed for perimeter protection and long-distance monitoring. It integrates a 400 × 300 px VOx thermal sensor with a 35 mm thermal lens and a 4 MP visible camera with 45x optical zoom and 3.95-177.75 mm lens , offering detailed images in any environmental conditions. Advanced Artificial Intelligence functions include heat, smoke, intrusion, line crossing detection, human/vehicle classification and automatic target tracking. Equipped with two-way audio , IR illumination up to 100 meters , 360° PTZ movement and IP66 protection, it is an ideal solution for industrial sites, critical infrastructures and advanced perimeter security. Dahua

Technical Data Sheet

referencia : TPC-SD5441-B35Z45

brand : Dahua

EAN: 6923172530202

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


TPC-SD5441-B35Z45 | POE PTZ THERMAL IP CAMERA WITH 3.95-177.75mm VARIFOCAL LENS - 35mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - SMOKE AND HEAT DETECTION


Dahua

The Dahua TPC-SD5441-B35Z45 is a hybrid PTZ thermal camera designed for advanced perimeter protection and monitoring of sensitive areas. It integrates a 400 × 300 VOx thermal sensor with a 35 mm thermal lens and a 4 MP visible camera with 45x optical zoom and 3.95-177.75 mm lens, ensuring detailed images even at long distances. Artificial Intelligence functions include heat and smoke detection, human/vehicle classification, intrusion detection, tripwire and automatic target tracking. The equipment is completed by the 360° PTZ , two-way audio , IR illuminator up to 100 m and IP66 protection, ideal for professional applications in outdoor environments.

Main specifications:

- 400×300 VOx thermal sensor

- 4 MP CMOS optical sensor

- 35mm thermal optics

- Visible optics 3.95-177.75 mm

- 45x optical zoom

- AI with human/vehicle classification

- Smoke and heat detection

- Automatic target tracking

- Two-way audio

- IR illumination 100m

- IP66 protection and Hi-PoE power supply

Further details

✅ Optics :
The camera integrates a 3.95-177.75 mm visible lens with a powerful 45x optical zoom , ideal for detailed monitoring of large areas and identification of subjects and vehicles even at long distances.
✅ Thermal Optics :
Equipped with a 35mm thermal optic , it offers excellent detection of heat sources and thermal anomalies, making it particularly effective for perimeter protection and monitoring in low or no light conditions.
✅ Resolution:
The combination of the 400×300 pixel thermal sensor and the 4 MP (2688×1520) visible camera ensures detailed images and reliable thermal information for professional security applications.
✅ Thermal sensor:
The uncooled VOx (Vanadium Oxide) sensor with NETD sensitivity <35 mk="" strong=""> detects minute temperature changes, improving the ability to detect intrusions, thermal anomalies and fire incipients.
✅ PTZ Camera:
PTZ Speed Dome technology supports 360° continuous rotation, -10° to +90° tilt, up to 300 presets , automatic tours and programmable patterns for complete coverage of the monitored area.
✅ Artificial Intelligence:
Advanced AI features include human/vehicle classification , vessel detection, smoke detection, heat detection, and intelligent event analysis to reduce false alarms.
✅ Functions:
The camera supports Heat Detection , Smoke Detection , Cold/Hot Spot Trace , Intrusion Detection, Tripwire , Automatic Target Tracking, Electronic Image Stabilization ( EIS ) and advanced Region of Interest ( ROI ) management.

✅ Two-way audio:
Two-Way Audio support enables real-time communications through dedicated audio inputs and outputs, enhancing interaction and security event management.
✅ Network Camera:
Compatible with ONVIF , CGI and Dahua SDK protocols, it supports H.265/H.264 compression, secure remote access, MicroSD recording up to 512 GB and integration with professional IP video surveillance platforms.
✅ Doors:
It features 10/100 Base-T RJ-45 port , 7 alarm inputs , 2 alarm outputs , audio input , audio output , BNC CVBS video output and RS-485 port , offering maximum integration flexibility.
✅ PoE:
Hi-PoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing network infrastructure time and costs.

Technical data sheet

TPC-SD5441-B35Z45
General
Appearance Thermal Network Hybrid Speed Dome Camera
Type Security
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) <35 mk="" f="" 1="" 0="" 25="" hz="" 300="" k="" td="">
Focal Length 35 mm
Field of View H: 7.85°; V: 5.89°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control DC Auto
Exposure Compensation Yes
Visible Focus Control Auto/Semi-auto/Manual
Focal Length 3.95 mm–177.75 mm
Zoom Speed <7 s
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Optical Zoom 45×
Illuminator On/Off Control Auto; manual
Illumination Distance 100 m (328.08 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression ≤8 kg (17.64 lb)
Gross Weight ≤10 kg (22.05 lb)
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Anti-corrosion Level Basic Protection
*The products are designed for general use in areas that have no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
