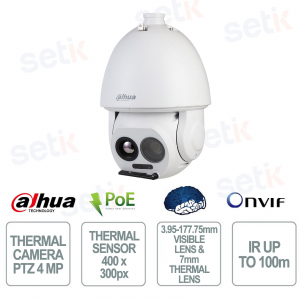

Dahua TPC-SD5441-TB7Z45 4MP AI 45x Zoom PTZ Thermal Camera IP66 Two-Way Audio

Dahua TPC-SD5441-TB7Z45 4MP AI 45x Zoom PTZ Thermal Camera IP66 Two-Way Audio
-56%

TPC-SD5441-TB7Z45 - is a professional PTZ thermal camera designed for advanced monitoring and perimeter protection of large areas. It integrates a 400 × 300 VOx thermal sensor with 7 mm thermal lens and a 4 MP visible camera with 45x optical zoom and 3.95-177.75 mm lens, ensuring detailed images and reliable thermal analysis. Artificial Intelligence functions include smoke and heat detection, human/vehicle classification, intrusion detection, line crossing and automatic tracking. Thanks to 360° PTZ , two-way audio , IR illumination up to 100 m and IP66 protection, it is an ideal solution for professional security applications in outdoor environments. Dahua

Technical Data Sheet

referencia : TPC-SD5441-TB7Z45

brand : Dahua

EAN: 6923172530264

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


TPC-SD5441-TB7Z45 | POE PTZ THERMAL IP CAMERA WITH 3.95-177.75mm VARIFOCAL LENS - 7mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - SMOKE AND HEAT DETECTION


Dahua

The Dahua TPC-SD5441-TB7Z45 is an advanced PTZ thermal camera designed for perimeter protection and professional monitoring in critical environments. It combines a 400 × 300 VOx thermal sensor with a 7 mm thermal lens and a 4 MP visible camera with 45x optical zoom and a 3.95-177.75 mm lens, providing detailed images and reliable thermal detection. Artificial Intelligence functions include smoke and heat detection, human/vehicle classification, intrusion detection, tripwire and automatic target tracking. Thanks to 360° PTZ , two-way audio , IR illumination up to 100 meters and IP66 protection, it guarantees high performance for the security of industrial sites, infrastructure and sensitive areas.

Main specifications:

- 400×300 VOx thermal sensor

- 4 MP CMOS optical sensor

- 7mm thermal optics

- Visible optics 3.95-177.75 mm

- 45x optical zoom

- AI with smoke and heat detection

- Man/vehicle classification

- Two-way audio

- PTZ 360°

- IR illumination 100m

- IP66 protection

Further details

✅ Optics :
The visible camera integrates a 3.95-177.75 mm motorized lens with a powerful 45x optical zoom , ideal for capturing precise details on people, vehicles and objects from long distances, ensuring effective surveillance even in complex scenarios.
✅ Thermal Optics :
The TPC-SD5441-TB7Z45 model is equipped with a 7 mm thermal lens , designed for monitoring large areas and for detecting thermal differences even in total absence of lighting or in critical environmental conditions.
✅ Resolution:
The combination of a 4MP (2688 × 1520) visible camera and a 400 × 300 pixel thermal channel enables detailed images and accurate thermographic information for advanced security applications.
✅ Thermal sensor:
The Vanadium Oxide (VOx) Uncooled Focal Plane Detector sensor with NETD sensitivity <35 mk="" strong=""> ensures high accuracy in identifying heat sources, thermal anomalies and potential hazards.
✅ PTZ Camera:
The professional PTZ system supports 360° continuous rotation, -10° to +90° tilt, up to 300 presets , automatic tours and intelligent tracking for complete coverage of the monitored area.
✅ Artificial Intelligence:
Advanced AI features enable smoke , heat , and boat detection, as well as intelligent classification of people and vehicles , improving video surveillance effectiveness and reducing false alarms.
✅ Functions:
It includes tripwire , intrusion detection , target tracking , cold/hot spot trace and smoke detection functions up to 4,000 meters , offering constant monitoring of sensitive areas and critical infrastructure.

✅ Two-way audio:
The Two-Way Audio function enables real-time communication between the operator and the monitored site, facilitating immediate interventions and active deterrence activities.
✅ Network Camera:
Compatible with ONVIF , RTSP , HTTPS , IPv4/IPv6 protocols and numerous professional network standards, it easily integrates with VMS software and centralized video management systems.
✅ Doors:
It features 10/100 Mbps RJ-45 port , 7 alarm inputs , 2 alarm outputs , audio input and output , RS-485 and CVBS video output, providing broad integration possibilities.
✅ PoE:
Hi-PoE 36 VDC support allows the camera to be efficiently powered and managed over the network, simplifying installation and reducing wiring costs.

Technical data sheet

TPC-SD5441-TB7Z45
General
Appearance Thermal Network Hybrid Speed Dome Camera
Type Security
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) <35 mk="" f="" 1="" 0="" 25="" hz="" 300="" k="" td="">
Focal Length 7 mm
Field of View H: 51.8°; V: 38.8°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control DC Auto
Exposure Compensation Yes
Visible Focus Control Auto/Semi-auto/Manual
Focal Length 3.95 mm–177.75 mm
Zoom Speed <7 s
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Optical Zoom 45×
Illuminator On/Off Control Auto; manual
Illumination Distance 100 m (328.08 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression ≤8 kg (17.64 lb)
Gross Weight ≤10 kg (22.05 lb)
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Anti-corrosion Level Basic Protection
*The products are designed for general use in areas that have no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
