IPC-HFW7859Z1-Z7-PV-X - WizMind is an 8MP Ultra HD IP bullet camera designed for advanced security applications, equipped with 8-56 mm varifocal motorized lens , 1/1.8" CMOS sensor and Smart Dual Light technology with IR illumination up to 150 m and warm light up to 80 m . Thanks to the Xinghan AI platform and deep learning algorithms, it supports facial recognition , ANPR , PPE Detection , people counting, AcuPick and advanced perimeter protection. It integrates dual microphone , Hi-Fi speaker , sound and light alarms, PoE/ePoE support, memory up to 1 TB MicroSD and IP67 IK10 protection, ensuring high performance in any professional scenario. Dahua
BUSQUE INSTALADOR

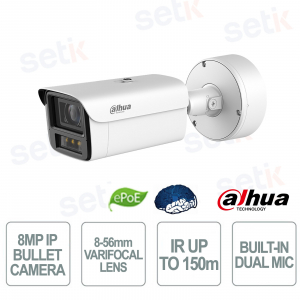

IPC-HFW7859Z1-Z7-PV-X | 8MP IP BULLET CAMERA WITH 8-56mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE
The Dahua IPC-HFW7859Z1-Z7-PV-X WizMind is an 8MP Ultra HD bullet IP camera designed for advanced professional video surveillance, with 8-56 mm varifocal motorized lens , 1/1.8" CMOS sensor and Xinghan AI technology for facial recognition, ANPR license plate reading, PPE Detection and intelligent perimeter protection. Thanks to the Smart Dual Light system with IR up to 150 meters and warm light up to 80 meters , it ensures detailed images even in low light conditions. It integrates double microphone , Hi-Fi speaker , sound and light alarms, PoE+/ePoE support, memory up to 1 TB MicroSD and IP67 IK10 protection for maximum reliability in outdoor environments.
Main specifications:
- 8MP Ultra HD resolution
- 8-56 mm varifocal lens
- ANPR and AcuPick
- Smart Dual Light
- IR up to 150m
- Built-in dual microphone
- Integrated Hi-Fi speaker
- PoE+ and ePoE
- IP67 IK10 protection
Further details
✅ Optics :
The camera integrates an 8-56mm motorized varifocal lens with F1.2 aperture and P-Iris technology, allowing for precise framing adjustments and high performance both in monitoring large areas and in identifying subjects at long distances.
✅ Resolution:
The 8MP (3840×2160) CMOS sensor delivers Ultra HD images with razor-sharp detail, supporting up to 60 fps in 4K and up to 120 fps in Full HD for smooth playback of even the most dynamic scenes.
✅ Xinghan Large-Scale AI Models-Vision :
The Xinghan AI platform combines advanced deep learning algorithms and NPU processing power to improve target recognition, reduce false alarms, and simultaneously manage multiple intelligent functions with high precision.
The Xinghan AI platform combines advanced deep learning algorithms and NPU processing power to improve target recognition, reduce false alarms, and simultaneously manage multiple intelligent functions with high precision.
✅ Anti-Glare Illuminator :
The Anti-Glare Illuminator system with micro-nano multilayer coatings effectively reduces reflections and glare caused by rain, fog and difficult atmospheric conditions, maintaining sharp and contrasting images.
The Anti-Glare Illuminator system with micro-nano multilayer coatings effectively reduces reflections and glare caused by rain, fog and difficult atmospheric conditions, maintaining sharp and contrasting images.
✅ Audio:
Equipped with a built-in dual microphone with adaptive noise cancellation and a high-power Hi-Fi speaker , it offers professional two-way audio with sound coverage up to 30 meters indoors.✅ Alarm :
It supports active sound and light alarms , triggering audible and flashing signals in case of critical events such as intrusions, line crossing, face detection, ANPR, crowds or violations of configured rules.
It supports active sound and light alarms , triggering audible and flashing signals in case of critical events such as intrusions, line crossing, face detection, ANPR, crowds or violations of configured rules.
✅ Network Camera:
Compatible with IPv4/IPv6 protocols, ONVIF Profile S, G, T and M , RTSP, HTTPS and DoLynk Cloud, it allows complete remote management with high security standards and integration into professional systems.
✅ Functions:
It includes advanced WizMind AI features such as Face Recognition , Face Detection , ANPR , AcuPick , People Counting , PPE Detection , parking management, heat map, video metadata and intelligent perimeter protection with people, vehicle and animal classification.
✅ Doors :
It has Gigabit RJ45 port , RS-485 , RCA audio input and output , 3 alarm inputs , 2 alarm outputs , BNC analog video output and support for MicroSD up to 1 TB .
✅ PoE :
PoE+ and ePoE support allows the camera to be powered and connected via a single network cable, simplifying installation and reducing infrastructure costs even over long distances.
Technical data sheet
| MODEL | IPC-HFW7859Z1-Z7-PV-X |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0006 [email protected] (Color, 30 IRE) 0.0001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 150 m (492.13 ft) (IR) Up to 80 m (262.47 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | Module |
| Focal Length | 8 mm–56 mm |
| Max. Openings | F1.2 |
| Field of View |
H: 42.87°–10.68°; V: 23.68°–6.08°; D: 49.78°–12.2° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.2 m (0.66 ft) |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| Intelligence Notes | Dual intelligent functions can be enabled simultaneously: Face detection + people counting; face recognition + people counting; PPE detection + Perimeter Protection; PPE detection + face detection; PPE detection + face recognition |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection, abandoned object, and missing object. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. Supports privacy protection. |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals, and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection (Full Image) | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; supports privacy protection for faces |
| Face Recognition | There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optmization time setting. support privacy protection for faces. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. |
| PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts, goggles, and aprons). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection for faces/human bodies. |
| People Counting | Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire people counting, people counting in area, and queue management; supports privacy protection |
| Heat Map | Yes |
| ANPR | ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Supports privacy protection for vehicle bodies. |
| Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human detection; track; snapshot; snapshot optimization; optimal face snapshot upload Generates flow statistics for people, motor vehicles, and non-motor vehicles based on the direction, and exports reports Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling Non-motor vehicle attributes: Type, color, number of people, top type and color, and hat Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella Supports privacy protection for faces, human bodies, and vehicle bodies |
| Privacy Protection | Mosaics and frosted glasses can be automatically placed over faces, human bodies and vehicle bodies protect their privacy |
| Smart Search | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Default: Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main stream: 3840 × 2160@(1–50/60 fps)/1920 × 1080@(1–100/120 fps) Sub stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 5 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 32 kbps–10,240 kbps H.265: 12 kbps–10,240 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Gyroscope Image Stabilization (GIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics + 8 color blocks (The color of every pure color block can be set as one, including red, orange, yellow, green, cyan, blue, purple and black.) |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker; Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security error; parking space management; PPE detection; tampering detection |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 340 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE11 and later Chrome: Chrome 100 and later Firefox: Firefox 47.0.2 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of |
| Function | |
| Light Warning | Yes |
| Sound Warning | Yes |
| Heater (Window Heating) | Quickly removes water, ice, snow, and mist from the glass to keep images clear |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 3 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%) & 24 VAC (±30%) independent power port; PoE+ (802.3at) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 8.2W (12VDC); 9.1W (24VAC); 11.4W (PoE); Max.: 19.5W (12VDC); 20.9W (24VAC); 21.8 W (PoE) (ICR switch + IR intensity); Heating: 2.64W (12VDC); 2.96W (24VAC); 3.04W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +65 ℃ (–40 °F to +149 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10–95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Casing: Metal; Sun cover: Plastic |
| Product Dimensions | 345 mm × 137 mm × 134 mm (13.58" × 5.39" × 5.28") (L × W × H) |
| Net Weight | 2 kg (4.41 lb) |
| Gross Weight | 3 kg (6.61 lb) |
