IPC-HDBW7859Z-Z4-PV-X - WizMind is an 8MP Ultra HD IP dome camera with 8-32 mm F1.6 varifocal motorized lens , 1/1.8" CMOS sensor and motorized PTRZ technology for quick and precise remote configuration. Thanks to the Xinghan Large-Scale AI platform, it integrates advanced functions such as Face Recognition , ANPR , AcuPick , PPE Detection , people counting and intelligent perimeter protection. The Smart Dual Light system ensures IR illumination up to 80 meters and warm light up to 60 meters , while dual microphone , Hi-Fi speaker , sound and light alarms and PoE+/ePoE support guarantee complete security. The IP67 IK10 protection, the anti-fog dome heating and GIS stabilization make it ideal for professional installations in any environment. Dahua
BUSQUE INSTALADOR

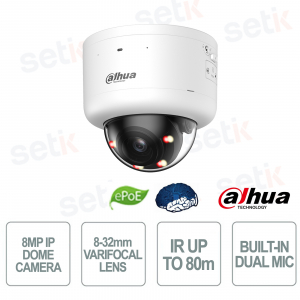

IPC-HDBW7859Z-Z4-PV-X | 8MP IP DOME CAMERA WITH 8-32mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE
The Dahua IPC-HDBW7859Z-Z4-PV-X WizMind is an 8MP Ultra HD IP dome camera with 1/1.8" CMOS sensor and motorized PTRZ technology, designed to offer high performance in professional video surveillance. Thanks to the Xinghan Large-Scale AI platform, it supports advanced features such as Face Recognition , ANPR , AcuPick , PPE Detection , people counting and intelligent perimeter protection with false alarm reduction. The Smart Dual Light system combines IR illumination up to 80 meters and warm light up to 60 meters , while dual microphones , Hi-Fi speakers , active alarms and PoE+/ePoE support ensure complete security. The robust IP67 IK10 certification, anti-fog dome heating and GIS image stabilization ensure reliability even in the most difficult environmental conditions.
Main specifications:
- 8MP Ultra HD resolution
- 8-32 mm varifocal lens
- Xinghan AI Technology
- Face Recognition
- ANPR and AcuPick
- Smart Dual Light
- IR up to 80m
- Motorized PTRZ
- Dual microphone
- Hi-Fi Speakers
- PoE+ and ePoE
- IP67 IK10 protection
Further details
✅ Optics :
The camera is equipped with an 8-32mm varifocal motorized lens with F1.6 aperture and P-Iris technology, which allows you to precisely adjust the field of view and obtain detailed images for both monitoring large areas and identifying subjects at long distances.
✅ Resolution:
The 1/1.8" 8MP CMOS sensor produces Ultra HD 3840 × 2160 images at up to 60 fps , offering high clarity, smooth video and the ability to capture crucial details for analysis and investigation.
✅ Smart Dual Light:
Smart Dual Light technology combines IR illumination up to 80 meters and warm light up to 60 meters , automatically switching between IR and color vision when events occur, improving detail recognition during night hours.
✅ Motorized PTRZ:
The motorized PTRZ system allows remote adjustment of Pan, Tilt, Rotate and Zoom , simplifying installation, configuration and maintenance without physical intervention on the camera.
✅ Xinghan Large-Scale AI Models-Vision :
The Xinghan AI platform uses advanced deep learning models and optimized AI architecture to improve people, face, vehicle, and object recognition, significantly reducing false alarms and increasing the accuracy of video analytics.
The Xinghan AI platform uses advanced deep learning models and optimized AI architecture to improve people, face, vehicle, and object recognition, significantly reducing false alarms and increasing the accuracy of video analytics.
✅ Smart Conductive Heat Transfer Technology :
Innovative Smart Conductive Heat Transfer technology uses adaptive heating elements and a curved structure to distribute heat across the dome, preventing condensation, fogging, ice and snow while maintaining a clear view at all times.
Innovative Smart Conductive Heat Transfer technology uses adaptive heating elements and a curved structure to distribute heat across the dome, preventing condensation, fogging, ice and snow while maintaining a clear view at all times.
✅ Audio:
Equipped with a built-in dual microphone with adaptive noise cancellation and high-power Hi-Fi speaker , it guarantees professional two-way audio with a coverage of up to 30 metres indoors.✅ Alarm :
It supports active sound and light alarms , triggering audible and flashing alerts in case of intrusion, line crossing, facial recognition, ANPR, PPE detection, people counting and numerous other intelligent events.
It supports active sound and light alarms , triggering audible and flashing alerts in case of intrusion, line crossing, facial recognition, ANPR, PPE detection, people counting and numerous other intelligent events.
✅ Network Camera:
Compatible with ONVIF Profile S, G, T and M , IPv4/IPv6 protocols, RTSP, HTTPS and DoLynk Cloud, it ensures perfect integration with NVR, VMS and professional video management platforms.
✅ Functions:
It includes advanced WizMind AI features such as Face Recognition , Face Detection , ANPR , AcuPick , People Counting , Heat Map , PPE Detection , parking management, video metadata and intelligent perimeter protection with accurate classification of people, vehicles and animals.
✅ Doors :
It features Gigabit RJ45 port , RS-485 , RCA audio input and output , 3 alarm inputs , 2 alarm outputs , BNC video output and support for MicroSD up to 1TB for high capacity local recording.
✅ PoE :
PoE+ (802.3at) and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing cabling costs, and providing greater operational flexibility.
Technical data sheet
| MODEL | IPC-HDBW7859Z-Z4-PV-X |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0007 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | Module |
| Focal Length | 8 mm–32 mm |
| Max. Openings | F1.6 |
| Field of View |
H: 41°–15°; V: 22°–9°; D: 47°–18° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 1 m (3.28 ft) |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| Intelligence Notes | Dual intelligent functions can be enabled simultaneously: Face detection + people counting; face recognition + people counting; PPE detection + Perimeter Protection; PPE detection + face detection; PPE detection + face recognition |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection, abandoned object, and missing object. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. Supports privacy protection. |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals, and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection (Full Image) | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; supports privacy protection for faces |
| Face Recognition | There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optmization time setting. support privacy protection for faces. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. |
| PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts, goggles, and aprons). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection for faces/human bodies. |
| People Counting | Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire people counting, people counting in area, and queue management; supports privacy protection |
| Heat Map | Yes |
| ANPR | ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Supports privacy protection for vehicle bodies. |
| Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human detection; track; snapshot; snapshot optimization; optimal face snapshot upload Generates flow statistics for people, motor vehicles, and non-motor vehicles based on the direction, and exports reports Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling Non-motor vehicle attributes: Type, color, number of people, top type and color, and hat Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella Supports privacy protection for faces, human bodies, and vehicle bodies |
| Privacy Protection | Mosaics and frosted glasses can be automatically placed over faces, human bodies and vehicle bodies protect their privacy |
| Smart Search | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Default: Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main stream: 3840 × 2160@(1–50/60 fps)/1920 × 1080@(1–100/120 fps) Sub stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 5 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536)/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 32 kbps–10,240 kbps H.265: 12 kbps–10,240 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Gyroscope Image Stabilization (GIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics + 8 color blocks (The color of every pure color block can be set as one, including red, orange, yellow, green, cyan, blue, purple and black.) |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker; Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security error; parking space management; PPE detection; tampering detection |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 340 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE11 and later Chrome: Chrome 100 and later Firefox: Firefox 47.0.2 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of |
| Function | |
| Light Warning | Yes |
| Sound Warning | Yes |
| Heater (Window Heating) | Quickly removes water, ice, snow, and mist from the glass to keep images clear |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 3 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%) & 24 VAC (±30%) independent power port; PoE+ (802.3at) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 7.5W (12VDC); 8.87W (24VAC); 9.48W (PoE); Max.: 19W (12VDC); 22.5W (24VAC); 23.8 W (PoE) (ICR switch + IR intensity); Heating: 2W (12VDC); 2.4W (24VAC); 2.6W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +65 ℃ (–40 °F to +149 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10–95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Casing: Metal |
| Product Dimensions | 150mm × Φ159mm (5.91" × Φ6.26") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
