IPC-HFW5859E1-ZHE-IL - is an 8MP WizMind IP bullet camera designed for professional video surveillance, equipped with a 2.7-12 mm motorized varifocal lens for flexible coverage and ultra-definition 4K images. Thanks to Smart Dual Light technology with IR illumination and warm light up to 60 meters, it guarantees clear footage both day and night. The advanced Xinghan Large-Scale AI Models-Vision models support intelligent functions such as AcuPick , face detection, perimeter protection, people counting and video metadata. Complete with a built-in microphone , PoE/ePoE support, advanced alarms and IP67 IK10 protection, it offers high performance and maximum reliability even in the most challenging environments. Dahua
BUSQUE INSTALADOR

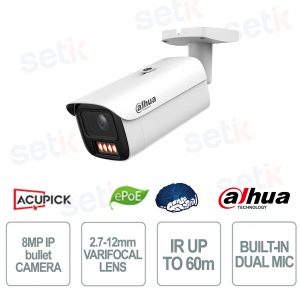

IIPC-HFW5859E1-ZHE-IL | 8MP IP BULLET CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE - SMART DUAL LIGHT
The Dahua IPC-HFW5859E1-ZHE-IL is an 8 MP Ultra HD WizMind IP bullet camera designed for professional intelligent video surveillance applications. Equipped with a 2.7-12 mm motorized varifocal lens , it offers maximum installation flexibility and detailed images thanks to the 1/1.8" CMOS sensor and AI-ISP technology. The Smart Dual Light system with IR illumination and warm light up to 60 meters ensures color footage even at night. Thanks to the Xinghan Large-Scale AI Models-Vision models, it integrates advanced functions such as AcuPick , face detection, perimeter protection, people counting and video metadata. Complete with built-in microphone , PoE/ePoE support and IP67 IK10 protection, it is ideal for high-security outdoor environments.
Main specifications:
- 8 MP Ultra HD resolution
- 2.7-12 mm motorized optics
- Smart Dual Light 60 m
- Xinghan AI Models-Vision
- Smart AcuPick
- Face Detection
- Perimeter Protection
- People Counting
- Built-in microphone
- PoE+ and ePoE
- IP67 and IK10
- MicroSD up to 1 TB
Further details
✅ Optics :
The 2.7-12mm motorized varifocal lens with F1.8 aperture allows you to easily adapt the viewing angle to the needs of the site, offering detailed images for both monitoring large areas and identifying subjects at long distances.
✅ Resolution:
The 8MP 1/1.8" CMOS sensor produces 4K Ultra HD (3840×2160) images with high clarity, ensuring precise details for recognising people, vehicles and objects even in complex scenarios.
✅ Smart Dual Light :
Smart Dual Light technology intelligently combines IR and warm light illumination up to 60 meters, recording color video during events and reducing light pollution when the area is clear of intruders.
Smart Dual Light technology intelligently combines IR and warm light illumination up to 60 meters, recording color video during events and reducing light pollution when the area is clear of intruders.
✅ Xinghan Large-Scale AI Models-Vision :
Powerful Xinghan AI models improve target recognition and scene adaptation, supporting the simultaneous processing of multiple intelligent tasks with high accuracy and optimized power consumption.
Powerful Xinghan AI models improve target recognition and scene adaptation, supporting the simultaneous processing of multiple intelligent tasks with high accuracy and optimized power consumption.
✅ Built-in microphone:
The built-in microphone enables audio recording synchronized with video, enhancing evidence collection and situational awareness in professional security applications.✅ Alarm :
It supports numerous intelligent alarm events , including intrusion, line crossing, face detection, video tampering, crowding, unauthorized parking and system anomalies, ensuring proactive protection of the monitored area.
It supports numerous intelligent alarm events , including intrusion, line crossing, face detection, video tampering, crowding, unauthorized parking and system anomalies, ensuring proactive protection of the monitored area.
✅ Network Camera:
Full compatibility with IPv4, IPv6, RTSP, HTTPS, ONVIF Profile S/G/T/M protocols and professional management platforms ensures easy integration into any IP video surveillance infrastructure.
✅ Functions:
It integrates advanced AI features such as AcuPick , Face Detection , People Counting , Video Metadata , Perimeter Protection , SMD 4.0 , Heat Map and Smart Search, improving the efficiency of video search and analysis tasks.
✅ Doors :
It features 1 audio input , 1 audio output , 2 alarm inputs , 1 alarm output , RJ-45 Ethernet port and support for MicroSD up to 1TB , offering extensive integration and local storage possibilities.
✅ PoE :
PoE+ (802.3at) and ePoE support allows the camera to be powered and connected over a single network cable, reducing installation time and costs and improving infrastructure reliability.
Technical data sheet
| MODEL | IPC-HFW5859E1-ZHE-IL |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0008 [email protected] (Color, 30 IRE) 0.0004 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Openings | F1.8 |
| Field of View | H: 113°–47°; V: 60°–23°; D: 133°–53° |
| Iris Control | Car |
| Iris Control Type | DC-Iris |
| Close Focus Distance | 0.13 m (0.43 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7W (12VDC); 5W (PoE); Max.: 12.9W (12VDC); 16.1 W (PoE) (IR on + WDR + intelligence on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L × W × H) |
| Net Weight | 1.09 kg (2.40 lb) |
| Gross Weight | 1.39 kg (3.06 lb) |
