IPC-HDBW5459Z-Z4HE-PV-PRO - is a 4MP WizMind IP dome camera designed for professional intelligent video surveillance. Equipped with 8-32mm PTRZ motorized varifocal lens and WizColor technology, it guarantees detailed and color images even in low light conditions. Thanks to Xinghan Large-Scale AI Models-Vision , it integrates advanced functions such as AcuPick , Face Detection , Perimeter Protection , People Counting and Video Metadata with high precision. The Smart Dual Light system with IR up to 80m and warm light up to 60m, combined with dual microphone , built-in speaker, PoE/ePoE support and IP67 IK10 protection, makes it ideal for high-performance security applications. Dahua
BUSQUE INSTALADOR

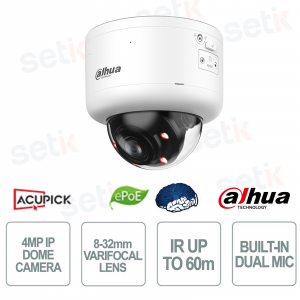

IPC-HDBW5459Z-Z4HE-PV-PRO | 4MP IP DOME CAMERA WITH 8-32mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE
The Dahua IPC-HDBW5459Z-Z4HE-PV-PRO is a 4MP WizMind IP dome camera designed for advanced intelligent video surveillance. Thanks to WizColor technology and the 1/1.8" CMOS sensor, it offers clear color images even in low light conditions, supported by Smart Dual Light with IR range up to 80 m and warm light up to 60 m. The powerful Xinghan Large-Scale AI Models-Vision models integrate functions such as AcuPick , Face Detection , Perimeter Protection , People Counting and Video Metadata for precise event analysis. Complete with motorized PTRZ , dual microphone , speaker with active alerts, PoE/ePoE support and IP67 IK10 protection, it represents an ideal solution for high-security professional environments.
Main specifications:
- 4 MP resolution
- WizColor Technology
- Smart Dual Light
- Motorized PTRZ
- Xinghan AI Models
- Smart AcuPick
- Face Detection
- Perimeter Protection
- People Counting
- Built-in dual microphone
- PoE and ePoE
- IP67 and IK10
Further details
✅ Optics :
The camera integrates an 8-32 mm motorized varifocal lens with F1.6 aperture and P-Iris technology, ideal for adapting the frame to different monitoring scenarios. The motorized PTRZ adjustment allows for precise and rapid remote configuration, reducing installation and maintenance times.
✅ Resolution:
The 4MP 1/1.8" CMOS sensor delivers high-definition images up to 2688 × 1520 pixels , ensuring high detail, excellent low-light performance and professional video quality for advanced security applications.
✅ Xinghan Large-Scale AI Models-Vision :
The Dahua WizMind AI platform uses deep learning algorithms to improve video analytics, enabling accurate human and vehicle recognition, metadata extraction, and false alarm reduction through intelligent image processing.
The Dahua WizMind AI platform uses deep learning algorithms to improve video analytics, enabling accurate human and vehicle recognition, metadata extraction, and false alarm reduction through intelligent image processing.
✅ Audio :
Equipped with a built-in dual microphone and built-in speaker , it supports two-way communication, audio recording synchronized with video and the use of voice alerts for greater effectiveness in security activities.✅ Alarm :
It integrates active alarm functions with light and sound alerts, as well as numerous intelligent events such as intrusion, line crossing, face detection, crowding, tampering and system anomalies for an immediate response to threats.
It integrates active alarm functions with light and sound alerts, as well as numerous intelligent events such as intrusion, line crossing, face detection, crowding, tampering and system anomalies for an immediate response to threats.
✅ Network Camera:
Compatible with IPv4, IPv6, HTTP, RTSP, ONVIF Profile S/G/T/M, SNMP and P2P protocols, it ensures complete integration with NVRs, management software and professional video surveillance infrastructures.
✅ Functions:
It includes advanced AI features such as AcuPick , Face Detection , Perimeter Protection , People Counting , Video Metadata , Heat Map , Smart Search , SMD 4.0 and AI Rule Assist , improving video analytics and quick event search.
✅ Doors :
It features RJ-45 port , RS-485 , 1 audio input , 1 audio output , 2 alarm inputs , 2 alarm outputs , 12 VDC power output and support for MicroSD up to 1 TB , offering wide integration possibilities.
✅ PoE :
PoE+ (802.3at) and ePoE support enable power and data transmission over a single Ethernet cable, simplifying installation and reducing infrastructure costs and complexity. Dual Power Backup is also available for greater business continuity.
Technical data sheet
| MODEL | IPC-HDBW5459Z-Z4HE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0005 [email protected](Color,30IRE) 0.0003 [email protected](B/W,30IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | Module |
| Focal Length | 8 mm–32 mm |
| Max. Openings | F1.6 |
| Field of View | H: 41°–16°; V: 23°–9°; D: 48°–18° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Defog (Glass Heating) | Window heating: Quickly removes water, ice, snow, and mist from the window to keep images clear |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 5.3W (12VDC); 6.4W (PoE) Max. (IR on + siren and light active deterrence + intelligence on + window heating): 21.3 W (12 VDC); 24.2W (PoE) Heating: 2.1W (12VDC); 2.4W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 150mm × Φ159mm (5.91" × Φ6.27") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
