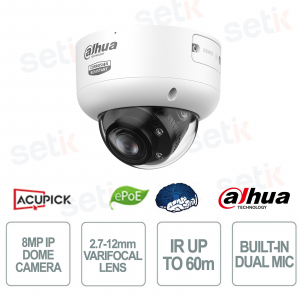

IPC-HDBW5859R1-ZE-PV-PRO-ATC - is an 8MP WizMind IP dome camera designed for harsh and corrosive environments, thanks to the C5-H and NEMA 4X certified anti-corrosion aluminum alloy structure. Equipped with a 2.7-12mm motorized varifocal lens with F1.2 aperture, it offers Ultra HD 4K images and excellent low-light performance thanks to WizColor technology. Xinghan Large-Scale AI Models-Vision models support advanced functions such as AcuPick , Face Detection , Perimeter Protection , People Counting and Video Metadata . Complete with Smart Dual Light , dual microphone , built-in speaker, PoE/ePoE support and IP67 IK10 protection, it represents a professional solution for ports, industries, coastal areas and infrastructures with high exposure to atmospheric agents. Dahua
BUSQUE INSTALADOR
IPC-HDBW5859R1-ZE-PV-PRO-ATC | 8MP IP DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE - CORROSION-RESISTANT
The Dahua IPC-HDBW5859R1-ZE-PV-PRO-ATC is an 8 MP Ultra HD WizMind IP dome camera designed for professional applications in particularly aggressive environments thanks to the anti-corrosion aluminum alloy body certified C5-H and NEMA 4X . WizColor technology and the 1/1.8" CMOS sensor guarantee color images rich in details even in low light conditions, supported by Smart Dual Light with IR up to 60 m and warm light up to 50 m. The Xinghan Large-Scale AI Models-Vision models integrate advanced functions such as AcuPick , Face Detection , Perimeter Protection , People Counting and Video Metadata . Complete with dual microphone , integrated speaker, PoE/ePoE support and IP67 IK10 protection, it represents an ideal solution for ports, industrial areas and coastal installations.
Main specifications:
- 8 MP Ultra HD resolution
- WizColor Technology
- C5-H anti-corrosion body
- Xinghan AI Models
- Smart AcuPick
- Face Detection
- Perimeter Protection
- People Counting
- Video Metadata
- Built-in dual microphone
- PoE+ and ePoE
- IP67 and IK10
Further details
✅ Optics :
The 2.7-12mm motorized varifocal lens with F1.2 aperture and P-Iris technology allows you to precisely adjust the viewing angle to suit your operating scenario. It offers flexible coverage for monitoring both large areas and specific details, maintaining high image quality even in low-light conditions.
✅ Resolution:
The 8MP 1/1.8" CMOS sensor delivers 4K Ultra HD (3840 × 2160) images with fine detail, excellent color rendition and superior performance for identifying people, vehicles and objects in professional environments.
✅ Xinghan Large-Scale AI Models-Vision :
Xinghan AI's advanced models combine deep learning algorithms and NPU processing power to improve target recognition, scene adaptation, and the simultaneous execution of multiple intelligent functions with high accuracy and low resource consumption.
Xinghan AI's advanced models combine deep learning algorithms and NPU processing power to improve target recognition, scene adaptation, and the simultaneous execution of multiple intelligent functions with high accuracy and low resource consumption.
✅ Audio :
Equipped with built-in dual microphones and built-in speaker , the camera supports high-quality audio recording and two-way communication , enhancing security management and remote interaction with the monitored area.✅ Alarm :
It integrates an active alarm system with customizable sound and light alerts, as well as numerous intelligent events such as intrusions, line crossing, face detection, crowds, video tampering and system anomalies for proactive protection.
It integrates an active alarm system with customizable sound and light alerts, as well as numerous intelligent events such as intrusions, line crossing, face detection, crowds, video tampering and system anomalies for proactive protection.
✅ Network Camera:
Compatible with IPv4, IPv6, HTTP, RTSP, ONVIF Profile S/G/T/M, SNMP and P2P protocols, it ensures perfect integration with NVR, VMS and professional video surveillance infrastructures, allowing simple and reliable remote management.
✅ Functions:
It includes advanced AI features such as AcuPick , Perimeter Protection , Face Detection , People Counting , Heat Map , Video Metadata , Smart Search , SMD 4.0 and EPTZ , optimizing video analysis and speeding up the search for relevant events.
✅ Doors :
It features RJ-45 port , RS-485 , 1 audio input , 1 audio output , 1 alarm input , 1 alarm output and support for MicroSD up to 1 TB , offering extensive integration possibilities with external devices and systems.
✅ PoE :
PoE+ (802.3at) and ePoE support enable power and data transmission over a single Ethernet cable, reducing installation time and costs. Dual Power Backup also increases system operational reliability.
✅ Enhanced Anti-Corrosion Aluminum Alloy :
The specially reinforced, corrosion-resistant aluminum alloy body, certified C5-H and NEMA 4X , offers superior resistance to high humidity, salt air, acid rain, and corrosive environments. This feature makes the camera ideal for ports, coastal areas, industrial plants, and critical infrastructure , ensuring greater durability and high operational reliability.
Technical data sheet
| MODEL | IPC-HDBW5859R1-ZE-PV-PRO-ATC |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0006 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Openings | F1.2 |
| Field of View | H: 112°–48°; V: 58°–27°; D: 137°–55° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.2 m (0.67 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 130 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU NEMA 4X |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1W (12VDC); 4.8W (PoE) Max. 21.7W (12VDC); 23.9 W (PoE) (IR on + WDR +intelligence on + siren and light active deterrence) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Professional Protection |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 105.0 mm × Φ126.0 mm (4.13" × Φ4.96") |
| Net Weight | 0.73 kg (1.61 lb) |
| Gross Weight | 0.94 kg (2.07 lb) |
