SD5A225GB-HNR-SL - is a 2MP WizSense IP PTZ camera designed for professional surveillance of large areas, equipped with a 4.8-120 mm motorized lens with 25x optical zoom to capture precise details even at long distances. Thanks to the STARVIS™ CMOS sensor, Starlight technology and IR illumination up to 150 meters , it guarantees clear images even in low light conditions. Advanced Artificial Intelligence functions include Perimeter Protection , Face Detection , SMD 4.0 , Auto Tracking 3.0 , People Counting and AcuPick , improving monitoring efficiency and reducing false alarms. IP67 certification, IK10 resistance and PoE+ support make this camera ideal for high-performance outdoor installations. Dahua

Technical data sheet

referencia : SD5A225GB-HNR-SL

brand : Dahua

EAN: 6923172536761

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

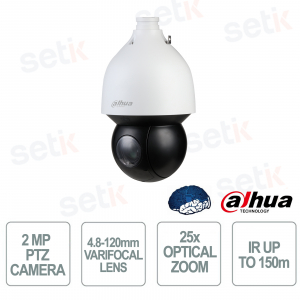

SD5A225GB-HNR-SL | 2MP PTZ IP CAMERA WITH 4.8-120mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE

Dahua

The Dahua SD5A225GB-HNR-SL is a 2MP WizSense IP PTZ camera designed for intelligent video surveillance of large areas, equipped with a 4.8-120 mm motorized lens with 25x optical zoom to capture precise details even at long distances. Thanks to the STARVIS™ CMOS sensor, Starlight technology and IR illumination up to 150 meters , it guarantees clear images even in low light conditions. Advanced AI functions such as Perimeter Protection , Face Detection , SMD 4.0 , Auto Tracking 3.0 , People Counting and AcuPick improve the detection of people and vehicles while reducing false alarms. IP67 certification, IK10 protection and PoE+ support ensure reliability and ease of installation in professional outdoor environments.

Main specifications:

- 2MP Full HD resolution

- 4.8-120 mm optics

- 25x optical zoom

- Starlight Technology

- IR up to 150m

- Auto Tracking 3.0

- Face Detection

- SMD 4.0

- People Counting

- AcuPick AI

- PoE+

- IP67 and IK10 protection

Further details

✅ Optics :
The 4.8-120mm motorized lens with powerful 25x optical zoom allows you to monitor large areas and capture precise details of people and vehicles even at long distances, ensuring high flexibility in professional security applications.
✅ Resolution:
The 2MP Full HD 1920×1080 sensor delivers sharp and detailed images with fluidity up to 60 fps , ensuring clear viewing of events and better recording quality.
✅ Artificial Intelligence:
 The WizSense AI platform integrates advanced features such as Perimeter Protection , Face Detection , SMD 4.0 , Auto Tracking 3.0 , People Counting , Video Metadata and AcuPick , enabling accurate detection of people and vehicles with drastically reduced false alarms.
✅ Starlight:
Starlight technology with STARVIS™ CMOS sensor ensures bright, color images even in extremely low light conditions down to 0.005 lux , offering high performance during night hours.
✅ PTZ Camera:
The professional PTZ system with continuous 360° panoramic rotation, tilt up to 90° , 300 presets and Auto Tracking functions allows dynamic and automatic control of the areas to be monitored.
✅ Audio :
 It supports two-way audio with dedicated audio input and output and compatibility with numerous professional codecs, enabling real-time communications and comprehensive security event management.
✅ Network Camera :
Advanced IP connectivity with ONVIF support, multiple streaming, MicroSD storage up to 512GB , NAS, and remote access via browser and mobile apps ensures efficient and flexible system management.
✅ Doors :
The camera features 10/100 Mbps RJ-45 port , audio input , audio output , 2 alarm inputs and 1 alarm output , offering wide possibilities for integration with external devices and automation systems.
✅ PoE :
PoE+ (802.3at) support allows power and data to be transmitted over a single Ethernet cable , reducing installation time, costs and wiring complexity.

Technical data sheet

MODEL SD5A225GB-HNR-SL
Room
Image Sensor 1/2.8" CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 4 GB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed 1/1 s–1/30,000 s
Min. Illumination Color: 0.005 [email protected]
B/W: 0.0005 [email protected]
0 Lux (IR light on)
Illumination Distance 150 m (492.13 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; Smart IR
Illuminator Number 4 (IR)
Lens
Focal Length 4.8 mm–120 mm
Max. Openings F1.6–F3.5
Field of View H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
Optical Zoom 25x
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control Auto; manual
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –15° to 90°, auto flip 180°
Manual Speed Control Pan: 0°/s–300°/s
Tilt: 0°/s–200°/s
Preset Speed Pan: 400°/s; Tilt: 300°/s
Presets 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset; Pattern; Tour; Scan
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Detection Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Video Metadata Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them.
People Counting Uses advanced image processing technology to extract depth information from images. The extracted information is then processed by advanced, deep learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy.
Auto Tracking Yes
SMD SMD 4.0
Auto Patrol It activates the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets.
Acupick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Video
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)
Streaming Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 1080p/1.3M/720p (1–50/60 fps)Sub stream 1: D1/VGA/CIF (1–25/30 fps)Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 64 Kbps–10946 Kbps
H265: 25 Kbps–6400 Kbps
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR 120 dB
White Balance Car; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto/manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas, and up to 8 areas in the same view:
S/N Ratio ≥ 55 dB
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Interoperability ONVIF(Profile S&G&T);CGI;SDK
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512GB); FTP/SFTP; NAS
Browser IE 7 and later versions
Chrome 42 and later versions
Firefox 52 and later versions
Mobile Client iOS; Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
IEC 60950-22
IEC 62236-4
IEC 60068-2-6
Port
Alarm I/O 2/1
Audio I/O 1/1
Two-way Audio Yes
Alarm Linkage Capture; presets; tours; pattern; recording; alarm digital input; audio; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 24 VDC, 2.5 A ± 25%
PoE+(802.3at)
Power Consumption Basic: 13 W
Max.: 22 W (illuminator + PTZ working + Heater + Fan)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Protection IP67; TVS 6000V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 332mm × Φ190mm (13.07" × Φ7.48")
Net Weight 4.7 kg (10.36 lb)
Gross Weight 8 kg (17.64 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
