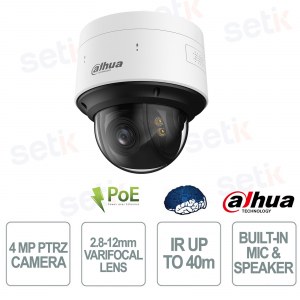

Dahua WizMind 4MP 4x Starlight+ AI PTRZ Camera with 2.8-12mm Lens IP67 IK10 PoE

Dahua WizMind 4MP 4x Starlight+ AI PTRZ Camera with 2.8-12mm Lens IP67 IK10 PoE

 
Optic calculation
BEST PRICE -56%

SD5R404GA-HNF-S2 - The Dahua WizMind 4MP PTRZ camera with 2.8-12mm motorized lens and 4x optical zoom offers high definition images thanks to the 1/1.8" STARVIS™ CMOS sensor and Starlight+ technology, ensuring excellent performance even in very low light conditions. It integrates Smart Dual Light , AI-ISP , Face Recognition , Video Metadata , ANPR , Perimeter Protection , SMD 4.0 and AcuPick for intelligent and highly precise monitoring. PTRZ technology simplifies installation and maintenance, while dual microphones , integrated speaker , IP67/IK10 protection and PoE support make it ideal for professional IP video surveillance applications. Dahua

Technical Data Sheet

referencia : SD5R404GA-HNF-S2

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

SD5R404GA-HNF-S2 | 4MP OUTDOOR POE PANORAMIC AND PTRZ CAMERA WITH ARTIFICIAL INTELLIGENCE


Dahua

The Dahua WizMind 4MP PTRZ camera with 2.8-12mm motorized lens and 4x optical zoom offers high-quality images thanks to the 1/1.8" STARVIS™ CMOS sensor, Starlight+ technology and the innovative AI-ISP , ensuring excellent performance even in very low light conditions. It integrates Smart Dual Light , Face Recognition , Video Metadata , ANPR , Perimeter Protection , SMD 4.0 and AcuPick for intelligent monitoring and advanced event analysis. PTRZ technology, dual microphones , integrated speaker , IP67/IK10 protection and PoE support make it an ideal professional solution for advanced IP video surveillance systems.

Main specifications:

  • Resolution: 4 MP (2560×1440)
  • Lens: Motorized 2.8-12mm
  • Optical zoom: 4x
  • Sensor: 1/1.8" STARVIS™ CMOS
  • Night Vision: Starlight+ and Smart Dual Light
  • AI Technologies: AI-ISP, Face Recognition, ANPR, AcuPick
  • Video Analysis: Video Metadata and SMD 4.0
  • Audio: Dual microphones and built-in speakers
  • Protection: IP67, IK10 and TVS 6000 V
  • Power: PoE (802.3at), 12 VDC and 24 VAC

Further details

✅ Resolution:
The 4MP (2560×1440) STARVIS™ CMOS sensor delivers high-definition images with fine detail and smooth operation at up to 60 fps , offering excellent performance for continuous monitoring in professional environments.
✅ Optics :
The 2.8-12mm motorized varifocal lens with 4x optical zoom allows you to quickly switch from a wide panoramic view to a detailed frame, adapting to different installation scenarios without manual intervention.
✅ PTRZ Camera:
PTRZ (Pan, Tilt, Rotate, Zoom) technology allows you to remotely adjust the camera's orientation and zoom, simplifying installation, calibration and maintenance without having to open the device or make adjustments directly on site.

✅ Artificial Intelligence:
The Dahua WizMind platform integrates advanced features such as Face Recognition , ANPR , Perimeter Protection , SMD 4.0 , People Counting , Parking Space Management and AcuPick , providing intelligent video analytics, fast event search and precise people and vehicle recognition.
✅ Smart Dual Light :
Smart Dual Light technology uses an intelligent algorithm that combines IR LEDs and warm light , automatically illuminating the scene in color only when a target is detected, improving image quality and reducing light pollution.
✅ Smart Dual Illumination:
The Smart Dual Illumination system guarantees continuous surveillance up to 40 metres , automatically alternating infrared vision and colour lighting based on the presence of people or vehicles, optimising energy consumption and the quality of night-time footage.
✅ Video Metadata :
The Video Metadata feature automatically extracts attributes of people, faces, vehicles, and non-motor vehicles , enabling quick, filtered searches within recordings using data collected by AI.
✅ Active Deterrence:
The Active Deterrence feature triggers customizable light alerts and audible alarms , helping to deter intrusions and unauthorized access directly upon event detection.
✅ Built-in Microphone and Speaker :
The built-in dual microphones and speaker with two-way audio support allow you to listen and communicate in real time with people in the monitored area.
✅ Doors:
The camera features a 10/100 Mbps RJ-45 port , 2 alarm inputs , 1 alarm output , audio input and output , RS-485 port , CVBS analog video output and support for microSD up to 512 GB , ensuring maximum integration flexibility.
✅ Network Camera:
This network IP camera supports Smart H.265+ , ONVIF Profile S/G/T protocols, microSD , NAS and FTP/SFTP recording, as well as management via DMSS and DSS Pro , ensuring complete integration into professional video surveillance systems.

Technical data sheet

Model SD5R404GA-HNF-S2
Room
Image Sensor 1/1.8" CMOS
Pixel 4 MP
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Electronic Shutter Speed 1s-1/30000s
Scanning System Progressive
Min. Illumination Color: 0.001 [email protected];
B/W: 0.0001 [email protected];
0 lux (illuminator on)
Illumination Distance 40 m (131.2 ft) (IR); 40 m (131.2 ft) (warm light)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 4 (Dual-core light)
Lens
Focal Length 2.8 mm–12 mm
Max. Openings F1.0-F1.2
Field of View H: 114.9°–50.3°; V: 61.1°–28.4°; D: 129.3°–56.2°

Optical Zoom

4×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1 m–2.5 m (3.28 ft–8.20 ft)

Iris Control

Car
PTZ
Pan/Tilt Range Pan: 0° to 355°;Tilt: 0° to 90°;Rotate: 0° to 355°
Power-off Memory Yes
Intelligence
Video Metadata Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles and 8 for non-motor vehicles. It also extracts attributes from human faces and bodies, detecting up to 6 attributes for faces, and 8 for bodies；Privacy Protection.
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification；Privacy Protection.
Face Detection Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; supports extraction attributes. 6 attributes and 8 expressions; supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces；Privacy Protection.
People Counting Uses advanced image processing technology to extract depth information from images. The extracted information is then processed by advanced, deep learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy；Privacy Protection.
Parking Space Management Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles.
ANPR ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets
Active Deterrence
Intelligence Type WizMind
Light Warning Red-Blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarms and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.
Video
Compression H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); Smart H.265+; Smart H.264+
Streaming Capability 5 Streams
Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA（640×480); CIF (352 × 288/352 × 240)
Video Frame Rate

Main stream: 4M (2688 × 1520)@(1–25/30 fps); 4M(2560 × 1440)/3M/1080p/1.3M/720p@(1–50/60 fps)
Sub stream: D1/VGA/CIF@(1–25/30 fps)
Third Stream: 1080p/1.3M/720p@(1–25/30 fps)
Fourth Stream: D1/VGA/CIF@(1–25/30 fps)
Fifth Stream: D1/VGA/CIF@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 96 Kbps–14,848 Kbps
H.265: 38 Kbps–8,960 Kbps
Day/Night Auto (ICR); Color/B/W
BLC Yes
WDR 140 dB
HLC Yes
White Balance Car; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual; Gain priority
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (ROI) Yes
Image Stabilization EIS
Defog Electronic
Digital Zoom 16x
Image Rotation 180°
S/N Ratio

≥55 dB
