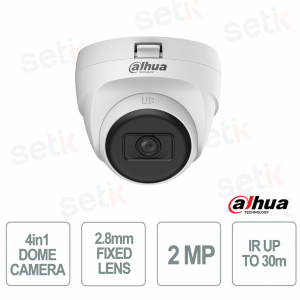

2MP Dome Camera 2.8mm Lens Smart IR 30m IP67 4in1 CVI TVI AHD CVBS for Video Surveillance - Dahua

2MP Dome Camera 2.8mm Lens Smart IR 30m IP67 4in1 CVI TVI AHD CVBS for Video Surveillance - Dahua
-56%

HAC-T2A21-UA-DI - The Dahua 2MP Dome camera with 2.8mm fixed lens is a reliable solution for indoor and outdoor video surveillance, offering Full HD 1080P images and optimal coverage thanks to the wide viewing angle . Equipped with Smart IR with a range of up to 30 meters , Digital WDR , 2DNR and Day/Night function with ICR filter , it guarantees clear footage even in low light conditions. 4-in-1 technology (CVI, TVI, AHD and CVBS) ensures high compatibility with the main analog DVRs, while the IP67 certification and metal body guarantee resistance and reliability even in the most difficult environments. Dahua

Technical data sheet

referencia : HAC-T2A21-U-A-DI

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


HAC-T2A21-UA-DI | 2MP HDCVI DOME CAMERA WITH 2.8mm FIXED LENS - SMART IR

Dahua

The HAC-T2A21-UA-DI 2MP dome camera with 2.8mm fixed lens is an efficient solution for indoor and outdoor video surveillance, offering crystal-clear Full HD 1080P images. Thanks to Smart IR technology up to 30 meters , Digital WDR , 2DNR and ICR Day/Night functions, it guarantees reliable performance even in low light conditions. 4-in-1 compatibility (CVI, TVI, AHD and CVBS) simplifies integration with various analog systems, while the metal body and IP67 certification ensure resistance and long life even in outdoor environments.

Main specifications:

  • Resolution: 2MP Full HD 1080P (1920×1080).
  • Optics: 2.8mm fixed lens with 80° viewing angle.
  • Night Vision: Smart IR up to 30 meters.
  • Video technologies: Digital WDR, 2DNR and ICR Day/Night.
  • Compatibility: 4 in 1 (CVI, TVI, AHD and CVBS).
  • Protection: IP67 with metal body for outdoor installations.

Further details

Optics :
The 2.8mm fixed lens offers an 80° viewing angle , ideal for monitoring entrances, homes, offices and commercial activities, ensuring wide coverage and always well-defined images.
Resolution:
The 2MP CMOS sensor with Full HD 1080P (1920×1080) resolution ensures sharp and detailed images, allowing clear identification of people, vehicles and essential details in video surveillance recordings.
4in1 technology:
The 4-in-1 compatibility (CVI, TVI, AHD and CVBS) makes the camera extremely versatile , allowing integration with most analog DVRs and facilitating both the installation of new systems and the upgrade of existing systems.
Smart IR :
Smart IR technology with a range of up to 30 meters automatically adjusts the infrared power based on the distance of the subject, offering uniform, bright and overexposed shots even in total darkness.

Technical data sheet

HAC-T2A21-UA-DI
Technical features
Dahua 4 in 1 Dome
2 MP CMOS sensor
Maximum resolution 1080P (1920×1080)
Progressive scanning system
Automatic ICR
Minimum illumination of 0.02 [email protected] in color (30 IRE)
Minimum illumination 0.002 [email protected] in B/W (30 IRE)
0 lux with IR activated
Intelligent IR with 30 m range
2 IR LEDs
Fixed lens 2.8 mm IR LEDs (F2.0)
Viewing angle: H 80°, V 45°, D 94
Video
4-in-1 technologies: CVI, TVI, AHD and CVBS selectable by DIP switch
Resolutions: 1080P (1920×1080), 960H (960×576 / 960×480)
Frames per second: CVI PAL: 1080P@25ips; TVI PAL: 1080P@25ips; AHD PAL: 1080P@25ips; CVBS: 960H (PAL)
Day/Night modes Auto/ICR/Color/B&W
BLC, HLC and digital WDR
Auto or area white balance
Auto gain control
2DNR noise reduction
Motion detection
Illumination mode: Smart IR
Privacy masking in up to 8 rectangular areas.
Multi-language OSD
Functionalities
Quick installation with quick release mounting base
Long distance transmission via coaxial up to 700
Communication interface
4-in-1 video output (CVI/TVI/AHD/CVBS) via BNC port
Power supply
12 VDC (±30%)
Maximum power consumption 2.8 W (with IR on)
Environmental
Operating temperature -40°C to +60°C (-40°F to +60°F)
Operating humidity less than 95% (non-condensing)
Storage temperature -40 °C to +60 °C (-40 °F to +60 °C)
Storage Humidity less than 95% (non-condensing)
IP67 protection
Basic corrosion protection level
Physical characteristics
Metal housing
Wall, ceiling or vertical pole installation
Dimensions: Ø94.0 × 77.9 mm
Net weight: 0.27 kg
Gross weight: 0.33 kg
3AXIS: Pan 0°~360°, Tilt 0°~78°, Rotation 0°~360°
Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032 and EN 55035
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
