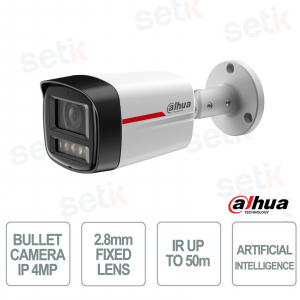

IPC-HFW2449TL-S-LED-PRO-S1 - The WizSense 2 Series 4MP IP Bullet Camera with 2.8mm fixed lens integrates WizColor technology to offer 24/7 color images even in extremely low light conditions, thanks to the large F1.0 aperture and warm light up to 50 meters . The 4MP sensor (2688×1520) , 120 dB WDR , 3D NR and Smart H.265+ compression ensure detailed images and efficient use of the bandwidth. The perimeter protection functions with people and vehicle classification , SMD Plus , built-in microphone , PoE power supply and IP67 certification make this camera ideal for professional outdoor video surveillance systems. Dahua
IPC-HFW2449TL-S-LED-PRO-S1 | 4MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - POE - MICROPHONE

The WizSense 2 Series 4MP IP Bullet Camera, IPC-HFW2449TL-S-LED-PRO-S1, with 2.8mm fixed lens is designed to offer 24/7 color images thanks to WizColor technology, a 4MP (2688×1520) sensor and a large F1.0 aperture. The warm light up to 50 meters , the WDR 120 dB and the 3D NR guarantee clear footage even in critical lighting conditions. Equipped with WizSense Artificial Intelligence with perimeter protection , people and vehicle classification , SMD Plus , built-in microphone , PoE power supply and IP67 protection, it represents an ideal solution for professional video surveillance systems.
Main specifications:
- Resolution: 4MP (2688×1520) with 1/1.8" CMOS sensor.
- Optics: 2.8mm fixed lens with 105° viewing angle.
- Lighting: WizColor technology with warm light up to 50 m.
- Artificial Intelligence: Perimeter Protection, Human & Vehicle Classification and SMD Plus.
- Audio: Built-in microphone.
- Storage & Networking: MicroSD up to 256GB, PoE & IP67.
Further details
Technical data sheet
| IPC-HFW2449TL-S-LED-PRO-S1 |
| Technical features |
| Dahua WizSense 2 Series IP Bullet Camera with WizColor Technology |
| 1/1.8" CMOS sensor 4MP |
| Maximum resolution of 2688 × 1520 |
| Minimum illumination 0.0001 [email protected] |
| IR illumination up to 50 m |
| 4 x 2.8 mm warm light LEDs |
| Fixed lens 2.8 mm |
| Aperture F1.0 |
| Angle of view: H 105°, V 57°, D 125°, D 125°, D 125°, H 105°, V 57°, D 125°, D 125°, D 125°. |
| Minimum focusing distance: 2.0 m |
| Video Stream |
| Compression H.265; H.264; H.264H; H.264B; MJPEG (substream) |
| Smart H.265+; Smart H.264+ |
| Stream 1: 2688 × 1520@1-20 ips; 2560 × 1440@1-25/30 ips |
| Stream 2: 704 × 576@1-25 ips / 704 × 480@1-30 ips |
| Up to 2 simultaneous streams |
| VBR / CBR bitrate control |
| H.264 Bitrate 32kbps-6144kbps |
| Bitrate H.265 12kbps-6144kbps |
| Day/Night mode Color / B/W |
| Features |
| WDR 120 dB |
| 3D NR |
| BLC and HLC |
| Motion detection (4 zones) |
| ROI (4 zones) |
| Privacy masking 4 areas |
| LDC |
| Defog |
| 0°/90°/180°/270° rotation |
| Mirror |
| Smart illumination |
| Digital watermark |
| Intelligent functions |
| IVS: intrusion and line crossing with human/vehicle classification from camera |
| SMD Plus from camera |
| Smart Search in combination with compatible NVR |
| Audio |
| Built-in microphone |
| Compression G.711a; G.711Mu; PCM; G.726 |
| Storage |
| MicroSD slot up to 256 GB (card not included) |
| FTP Storage; SFTP; NAS |
| Network |
| RJ45 10/100 Base-T interface |
| Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| SDK and API |
| ONVIF Profile S; Profile G; Profile T; Profile M; CGI |
| Up to 20 simultaneous users |
| Smart PSS; DSS; DMSS software |
| iOS and Android Apps |
| Power supply |
| 12 VDC (±30%) |
| PoE (802.3af) |
| Basic power consumption 1.4 W (12 VDC) / 1.7 W (PoE) |
| Maximum consumption 5.4 W (12 VDC) / 6.3 W (PoE) |
| Environmental |
| Operating temperature -40°C to +60°C (-40°F to +60°F) |
| Humidity < 95% non-condensing |
| IP67 protection |
| Basic corrosion protection |
| Physical characteristics |
| Housing metal |
| Dimensions 197.9 × 80.2 × 76.2 mm (197.9 × 80.2 × 76.2 mm) |
| Net weight: 0.56 kg |
| Gross weight: 0.70 kg |
| 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotate 0°~360° |
| Certifications |
| CE-LVD EN62368-1 |
| CE-EMC Directive 2014/30/EU |
