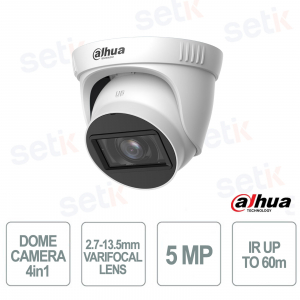

HAC-T3A51-Z-S3-DI - The 5 MP Cooper Dome camera with 2.7-13.5 mm motorized lens offers high-definition images and the ability to adjust the zoom to adapt the frame to any video surveillance scenario. Thanks to the 5 MP resolution , Smart IR illumination up to 60 meters , DWDR and 2D NR technologies, it ensures clear footage even in difficult lighting conditions. 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and IP67 certification guarantee maximum versatility and reliability for professional installations in outdoor and indoor environments. Dahua
HAC-T3A51-Z-S3-DI | 5MP HDCVI DOME CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - SMART IR

The Dahua Cooper 5 MP Dome camera with 2.7-13.5 mm motorized lens offers high-definition images and an adjustable zoom to precisely adapt the frame to any video surveillance need. Thanks to 5 MP resolution , Smart IR illumination up to 60 meters , Digital WDR , 2D NR and HLC Pro technologies, it guarantees clear footage even in difficult lighting conditions. 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and IP67 protection ensure reliable and versatile installations both indoors and outdoors.
Main specifications:
- Resolution: 5 MP (2880×1620)
- Lens: Motorized 2.7-13.5mm
- Night Vision: Smart IR up to 60m
- Image quality: Digital WDR, 2D NR and HLC Pro
- Technology: 4 in 1 (HDCVI / HDTVI / AHD / CVBS)
- Installation: Wall, ceiling or pole
- Protection: IP67 for outdoor installations
- Power supply: 12 V DC
Further details
Technical data sheet
| HAC-T3A51-Z-S3-DI |
| Technical features |
| Dahua Cooper Series 4-in-1 Dome with 5MP CMOS Sensor |
| Maximum resolution of 5MP (2880 × 1620) |
| Minimum illumination of 0.02 lux in color and 0.002 lux in B/W with F1.6 |
| 0 lux with illuminator activated |
| 4 IR illuminators |
| IR range up to 60 m |
| Illuminator control in automatic or manual mode |
| Motorized lens from 2.7 mm to 13.5 mm |
| Maximum aperture F1.6 |
| Horizontal field of view from 32.7° to 111.8°, vertical from 18.4° to 58.3° and diagonal from 37.5° to 135.2°. |
| Fixed iris |
| Minimum focusing distance of 0.3 m |
| Video |
| Switchable video output CVI, TVI, AHD and CVBS over BNC via DIP switch |
| 5MP, 4MP, 1080P and 960H resolutions |
| CVI: 5MP@25 ips, 5MP 16:[email protected] ips, 4MP@25 ips and 1080P@25 ips |
| AHD: 4MP@25 fps |
| TVI: 5MP 16:9@20 fps |
| CVBS: 960H |
| Functionalities |
| Digital WDR, BLC, HLC and HLC Pro |
| Auto white balance and area white balance |
| Automatic and manual gain control |
| 2D NR noise reduction |
| Auto day/night, color and B/W mode |
| Smart IR |
| Mirror function |
| Off/On privacy mask with 8 rectangular areas |
| Multi-language OSD |
| Power supply |
| 12 VDC power supply (±30%) |
| Maximum power consumption 10.1 W with IR activated |
| Environmental |
| Operating temperature -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating humidity less than 95% (non-condensing) |
| Storage temperature -30 °C to +60 °C (-22 °F to 140 °F) |
| Storage Humidity less than 95% (non-condensing) |
| IP67 protection |
| Basic level of corrosion protection |
| Physical characteristics |
| Metal and plastic dome-type body with plastic housing |
| Wall, ceiling or vertical pole installation |
| Dimensions: Φ122 mm × 108.7 mm |
| Net weight: 0.38 kg |
| Gross weight: 0.53 kg |
| Certifications |
| CE-LVD: EN 62368-1 |
| CE-EMC: EN 55032 and EN 55035 |
