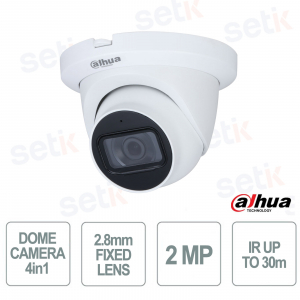

HAC-HDW1231TLMQ - The Dahua Lite 2 MP Dome camera with 2.8 mm fixed lens offers high-quality Full HD images and a wide 107° viewing angle , ideal for video surveillance of homes, offices and commercial activities. Thanks to Starlight technology, Smart IR up to 30 meters , Real WDR 130 dB and 3D NR , it guarantees clear footage even in low light conditions. 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) , the Quick-to-Install system and IP67 protection ensure simple, reliable and resistant installation even in outdoor environments. Dahua
HAC-HDW1231TLMQ | 2MP 4-in-1 Dome Camera with 2.8mm Fixed Lens - Starlight

The Dahua Lite 2 MP Dome camera with 2.8 mm fixed lens offers high-quality Full HD images and a wide 107° viewing angle , ideal for video surveillance of homes, offices and commercial activities. Thanks to Starlight technology, Smart IR up to 30 meters , Real WDR 130 dB and 3D NR , it guarantees clear footage even in very low lighting conditions. 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) , the Quick-to-Install system and IP67 protection ensure simple, reliable and resistant installation both indoors and outdoors.
Main specifications:
- Resolution: 2 MP Full HD (1920×1080)
- Optics: Fixed 2.8mm with 107° viewing angle
- Night Vision: Smart IR up to 30m
- Technology: Starlight, Real WDR 130 dB and 3D NR
- Compatibility: 4 in 1 (HDCVI / HDTVI / AHD / CVBS)
- Installation: Quick-to-Install System
- Protection: IP67
- Power supply: 12 V DC
Further details
Technical data sheet
| HAC-HDW1231TLMQ |
| Technical features |
| Dahua Lite quick-to-install 4-in-1 dome |
| 1/2.8" CMOS sensor |
| Maximum resolution 1080P (1920×1080) |
| Minimum illumination of 0.002 lux at F1.6, 30 IRE |
| 0 lux with IR activated |
| IR range up to 30 m |
| Automatic and manual illuminator control |
| 1 IR illuminator |
| Fixed lens 2.8mm illuminator |
| M12 mount |
| Maximum aperture F1.6 |
| Angle of view 107° horizontal, 56° vertical and 127° diagonal |
| Minimum focusing distance of 0.7 m |
| Video |
| CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC |
| AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC |
| TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC |
| CVBS: 960H |
| Resolutions 1080P (1920×1080) and 960H (960×576/960×480) |
| Switchable CVI, TVI, AHD and CVBS video output via BNC port |
| Automatic day/night switching via ICR |
| Functionalities |
| BLC, WDR and HLC |
| 130 dB real WDR |
| Auto and area white balance |
| Automatic and manual gain control |
| 3D NR noise reduction |
| Smart IR |
| Super Adapt |
| Mirror Off/On |
| Off/On privacy mask with 8 rectangular areas |
| Quick-to-install system to reduce installation time |
| Communication interface |
| 1 BNC port for CVI, TVI, AHD and CVBS video output |
| Power supply |
| 12V DC ±30% power supply |
| Maximum power consumption of 3.1 W with IR on |
| Environmental |
| Operating temperature -40 °C to +60 °C (-40 °C to +60 °C) |
| Storage temperature -40°C to +60°C (-40°F to +60°F) |
| Operating humidity below 95 % non-condensing |
| Storage humidity less than 95 % non-condensing |
| Degree of protection IP67 |
| Physical characteristics |
| Housing with metal dome, metal cover and plastic decorative ring |
| 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°. |
| Dimensions: Φ109.9 mm × 88.1 mm |
| Net weight: 0.28 kg |
| Gross weight 0.45 kg |
| Certifications |
| CE: EN55032, EN55024, EN50130-4 |
| FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014 |
| UL: UL60950-1 and CAN/CSA C22.2 No.60950-1 |
