HAC-HDW1231T-ZA - The 2MP Dome Lite camera with 2.7-12mm motorized lens and autofocus offers Full HD images and maximum flexibility in framing to adapt to any video surveillance context. Thanks to Starlight technology, Smart IR up to 60 meters , Real WDR 130 dB and 3D NR , it guarantees clear footage even in very low light conditions. The integrated microphone with coaxial audio , 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and IP67 protection ensure a professional, reliable and resistant solution for indoor and outdoor installations. Dahua

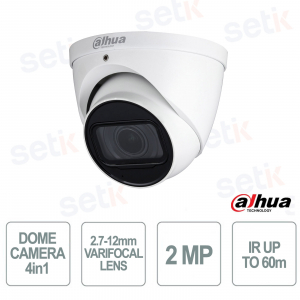

HAC-HDW1231T-ZA | 2MP 4-in-1 Dome Camera with 2.7-12mm Varifocal Lens, Starlight, and Microphone

The Dahua Lite 2 MP Dome camera with 2.7-12 mm motorized lens and autofocus guarantees Full HD images and maximum flexibility in framing, adapting to any video surveillance need. Thanks to Starlight technology, Smart IR up to 60 meters , Real WDR 130 dB and 3D NR , it ensures clear footage even in very low light conditions. The built-in microphone with coaxial audio , 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) and IP67 protection make this camera a professional, reliable and durable solution for indoor and outdoor installations.
Main specifications:
- Resolution: 2 MP Full HD (1920×1080)
- Lens: Motorized 2.7-12mm with autofocus
- Night Vision: Smart IR up to 60m
- Technology: Starlight, Real WDR 130 dB and 3D NR
- Audio: Built-in microphone with coaxial audio
- Compatibility: 4 in 1 (HDCVI / HDTVI / AHD / CVBS)
- Protection: IP67
- Power supply: 12 V DC
Further details
Technical data sheet
| HAC-HDW1231T-ZA |
| Technical features |
| 1/2.8" CMOS sensor |
| Maximum resolution 1080P (1920×1080) |
| Minimum illumination 0.002 lux at F1.5, 30 IRE, 0 lux with IR activated |
| IR range up to 60 m |
| Automatic illuminator control |
| 2 IR illuminators |
| Motorized lens 2.7 mm to 12 mm autofocus IR illuminators |
| φ14 mount |
| Maximum aperture F1.5 |
| Diagonal angle of view from 38° to 123°. |
| Horizontal angle of view from 33° to 102° |
| Vertical angle of view from 19° to 53°. |
| Minimum focusing distance of 0.5 m (0.5 ft) |
| Video |
| CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC |
| AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC |
| TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC |
| CVBS: 960H |
| Resolutions 1080P (1920×1080) and 960H (960×576/960×480) |
| Switchable CVI, TVI, AHD and CVBS video output via BNC port |
| Automatic day/night switching via ICR |
| Functionalities |
| BLC, HLC, 130 dB real WDR |
| Auto and area white balance |
| Automatic and manual gain control |
| 3D NR noise reduction |
| Smart Lighting |
| Super Adapt |
| Mirror |
| Audio |
| Built-in 1-channel microphone |
| Coaxial audio |
| Communication interface |
| 1 BNC port for CVI, TVI, AHD and CVBS video output |
| Power supply |
| 12V DC ±30% power supply |
| Maximum power consumption of 6.4 W with IR on |
| Environmental |
| Operating temperature -30 °C to +60 °C (-30 °C to +60 °C) |
| Storage temperature -30 °C to +60 °C (-30 °C to +60 °C) |
| Operating humidity below 95 % non-condensing |
| Storage humidity less than 95 % non-condensing |
| Degree of protection IP67 |
| Physical characteristics |
| Full metal housing |
| 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°. |
| Dimensions: φ122 mm × 104.8 mm |
| Net weight: 0.58 kg |
| Gross weight 0.74 kg |
| Certifications |
| CE: EN55032:2015, EN 61000-3-2-2:2014, EN 61000-3-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017 |
| FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014 |
| UL: UL60950-1 and CAN/CSA C22.2 No.60950-1 |
