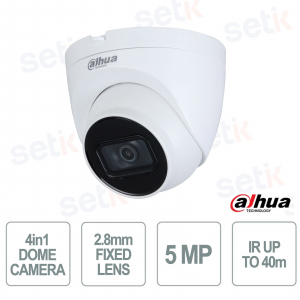

Dahua 5MP 4-in-1 Starlight 2.8mm Dome Camera with 40m Smart IR, Coaxial Audio, and IP67

Dahua 5MP 4-in-1 Starlight 2.8mm Dome Camera with 40m Smart IR, Coaxial Audio, and IP67

 
Optic calculation
-56%

HAC-HDW2501TQ-A-S2 - The 5MP 4-in-1 Pro Dome camera with 2.8mm fixed lens is designed to offer high-definition images and high performance in any lighting conditions. Thanks to Starlight technology, the 5MP CMOS sensor and Smart IR up to 40 meters , it ensures clear footage even in low-light environments. True 120dB WDR and 2D/3D NR noise reduction improve video quality, while the built-in microphone with coaxial audio allows for audio recording. Compatible with HDCVI, HDTVI, AHD and CVBS technologies and featuring IP67 protection, it represents a reliable and versatile solution for professional video surveillance systems. Dahua

Technical data sheet

referencia : HAC-HDW2501TQ-A-S2

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HAC-HDW2501TQ-A-S2 | 4-in-1 Dome Camera with 2.8mm Fixed Lens, 5MP Resolution, and Microphone

Dahua

The Dahua Pro 5MP 4-in-1 Dome camera with 2.8mm fixed lens offers high performance for professional video surveillance, ensuring detailed images thanks to 5MP resolution and Starlight technology, ideal even in low-light conditions. The Smart IR system up to 40 meters , the real 120 dB WDR and 2D/3D NR noise reduction ensure clear and balanced videos in any scenario. Equipped with a built-in microphone with coaxial audio , it supports HDCVI, HDTVI, AHD and CVBS standards, while the IP67 certification guarantees reliability and resistance even in the most difficult outdoor environments.

Main specifications:

  • Lens: 2.8mm wide angle
  • Resolution: 5MP (2880×1620)
  • Technology: Starlight
  • Illumination: Smart IR up to 40m
  • Audio: Built-in microphone with coaxial audio
  • Video technology: 4 in 1 (HDCVI, HDTVI, AHD, CVBS)
  • Image quality: WDR 120 dB and 2D/3D NR
  • Protection: IP67 for outdoor installations

Further details

✅ Optics :
The 2.8mm fixed lens with up to 111° viewing angle ensures wide and uniform coverage of the monitored area, making it ideal for entrances, shops, offices, homes and other environments that require detailed monitoring.
✅ Resolution:
The 5MP CMOS sensor with a maximum resolution of 2880×1620 offers high-definition images, rich in details and realistic colors, ensuring high video quality both day and night.
✅ Starlight :
Starlight technology significantly improves visibility in low-light conditions, allowing you to capture clear, bright images even in very low light, supported by Smart IR up to 40 meters .
✅ Microphone:
The built-in microphone with coaxial audio also allows you to record ambient audio directly over the video cable, offering more complete surveillance and simplifying system installation.
✅ 4-in-1 technology:
4-in-1 compatibility with HDCVI, HDTVI, AHD and CVBS makes the camera extremely versatile, allowing integration with new or existing video surveillance systems and facilitating upgrades without replacing the infrastructure.

Technical data sheet

HAC-HDW2501TQ-A-S2
Technical features
1/2.7" CMOS sensor
Maximum resolution 5MP (2880×1620)
Minimum illumination 0.001 lux at F1.6, 30 IRE, 0 lux with IR activated
Smart IR up to 40 m (131 ft)
Automatic and manual illuminator control
1 IR illuminator
Fixed lens 2.8 mm IR illuminator
M12 mount
Maximum aperture F1.6
Angle of view 111° horizontal, 58° vertical and 132° diagonal
Minimum focusing distance of 0.9 m
Quick-to-install system to reduce installation time
Video
CVI: 5M@25 ips, 4M@25 ips and 1080P@25 ips in PAL
CVI: 5M@25 ips, 4M@30 ips and 1080P@30 ips in NTSC
AHD: 4M@25 ips in PAL and 4M@30 ips in NTSC
TVI: 4M@25 fps in PAL and 4M@30 fps in NTSC
CVBS: 960H in PAL and NTSC
Resolutions 5M (2880×1620), 4M (2560×1440), 1080P (1920×1080) and 960H (960×576/960×480)
Switchable video output CVI, TVI, AHD and CVBS via BNC port with DIP Switch
Auto day/night switching via ICR
Functionalities
BLC, HLC, HLC-Pro, 120 dB real WDR
Automatic and manual white balance
Automatic and manual gain control
2D NR and 3D NR noise reduction
Smart IR
Mirror Off/On
Off/On privacy mask with 8 rectangular areas
Audio
Built-in 1-channel microphone
Coaxial audio
Communication interface
1 BNC port for CVI, TVI, AHD and CVBS video output
Power supply
12V DC ±30% power supply
Maximum power consumption 4.3 W with IR on
Environmental
Operating temperature -40 °C to +60 °C (-40 °C to +60 °C)
Storage temperature -40°C to +60°C (-40°F to +60°F)
Operating humidity below 95 % non-condensing
Operating humidity up to 95 % non-condensing
Degree of protection IP67
Physical characteristics
Metal inner core with plastic cover and plastic base
3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°.
Dimensions φ109.9 mm × 100.9 mm
Net weight 0.34 kg
Gross weight 0.52 kg
Certifications
CE: EN55032:2015, EN 61000-3-2-2:2014, EN 61000-3-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017
FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
