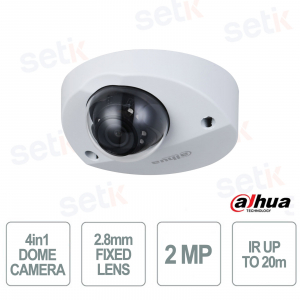

Dahua 2MP 4-in-1 2.8mm Dome Camera with Audio, Smart IR 20m, IP67 and IK10

Dahua 2MP 4-in-1 2.8mm Dome Camera with Audio, Smart IR 20m, IP67 and IK10
-56%

HAC-HDBW3200F-S5 - The Dahua 2MP 4-in-1 Dome Camera with 2.8mm fixed lens is a reliable solution for professional video surveillance, designed to offer clear Full HD 1080P images and wide coverage of the monitored area. Thanks to Smart IR up to 20 meters , Digital WDR and 2D NR noise reduction, it guarantees clear videos even in difficult lighting conditions. The built-in microphone with coaxial audio allows audio recording, while 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) facilitates integration with various video surveillance systems. The double IP67 and IK10 protection ensures resistance to atmospheric agents and vandalism, making it ideal for both indoor and outdoor installations. Dahua

Technical data sheet

referencia : HAC-HDBW3200F-S5

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


HAC-HDBW3200F-S5 | 4-in-1 Dome Camera with 2.8mm Fixed Lens, 2MP Resolution - Microphone

Dahua

The Dahua 2MP 4-in-1 Dome Camera with 2.8mm fixed lens is designed to offer reliable video surveillance with Full HD 1080P images and a wide viewing angle, ideal for indoor and outdoor environments. Thanks to Smart IR technology up to 20 meters , Digital WDR and 2D NR noise reduction, it ensures clear footage even in low light conditions. The built-in microphone with coaxial audio allows audio recording, while 4-in-1 compatibility (HDCVI, HDTVI, AHD and CVBS) guarantees simple integration with various video surveillance systems. The double IP67 and IK10 protection offers high resistance to atmospheric agents and impacts, ensuring maximum reliability over time.

Main specifications:

  • Lens: 2.8mm wide angle
  • Resolution: Full HD 2MP (1920×1080)
  • Illumination: Smart IR up to 20m
  • Audio: Built-in microphone with coaxial audio
  • Video technology: 4 in 1 (HDCVI, HDTVI, AHD, CVBS)
  • Image quality: Digital WDR and 2D NR
  • Protection: IP67 and IK10 vandal-proof

Further details

✅ Optics :
The 2.8mm fixed lens with a viewing angle of up to 106° ensures wide coverage of the monitored area, making it ideal for monitoring entrances, offices, shops and other environments where a clear and complete view is required.
✅ Resolution:
The Full HD 2MP (1920×1080) resolution , supported by the 1/2.7" CMOS sensor , ensures sharp and detailed images, offering high video quality for the recognition of people and objects.
✅ Smart IR :
Smart IR technology with a range of up to 20 meters automatically adjusts the intensity of infrared illumination, avoiding overexposure of nearby subjects and ensuring uniform and readable images even in total darkness.
✅ Microphone:
The built-in microphone with coaxial audio support also allows you to acquire ambient audio via the video cable, improving the level of security and simplifying the installation of the video surveillance system.
✅ 4-in-1 technology:
4-in-1 compatibility with HDCVI, HDTVI, AHD and CVBS makes the camera extremely versatile, allowing integration with DVRs and analog systems of different generations without the need to replace the existing infrastructure.

Technical data sheet

HAC-HDBW3200F-S5
Technical features
1/2.7" CMOS sensor
Maximum resolution 1080P (1920×1080)
Automatic day/night switching via ICR
Minimum illumination 0.02 lux at F2.0, 30 IRE, 0 lux with IR activated
Smart IR up to 20 m
Automatic and manual illuminator control
8 IR illuminators
Fixed lens 2.8 mm IR illuminator
M12 mount
Maximum aperture F2.0
Angle of view 106° horizontal, 55° vertical and 126° diagonal
Minimum focusing distance of 0.5 m
Video
CVI: 1080P@25/30 fps, 720P@25/30 fps and 720P@50/60 fps
AHD: 1080P@25/30 ips and 720P@25/30 ips
TVI: 1080P@25/30 ips, 720P@25/30 ips and 720P@50/60 ips
CVBS: 960H
Resolutions 1080P (1920×1080), 720P (1280×720) and 960H (960×576/960×480)
Switchable video output CVI, TVI, AHD and CVBS through BNC port
Functionalities
BLC, HLC and digital WDR
Auto and manual white balance
Automatic and manual gain control
2D NR and 3D NR noise reduction
Smart IR
Electronic Defog
Mirror Off/On
Off/On privacy mask with 8 rectangular areas
Multilingual OSD
Audio
Built-in microphone
Coaxial audio
1 audio input interface
Communication interface
1 BNC port for CVI, TVI, AHD and CVBS video output
Power supply
12V DC ±30% power supply
Maximum power consumption 2.6 W with IR activated
Environmental
Operating temperature -40 °C to +60 °C (-40 °C to +60 °C)
Storage temperature -40°C to +60°C (-40°F to +60°F)
Operating humidity below 95 % non-condensing
Operating humidity up to 95 % non-condensing
Degree of protection IP67
Vandal protection IK10
Physical characteristics
Metal housing
3AXIS with horizontal adjustment from -30° to 30°, vertical adjustment from 0° to 80° and rotation from 0° to 360°.
Dimensions Φ106.0 mm × 50.3 mm
Net weight 0.33 kg
Gross weight 0.47 kg
Certifications
CE/FCC
UL
IP6K9K
EN50155
E-MARK
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
