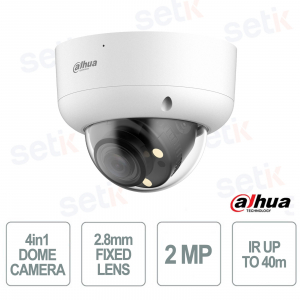

Dahua 2MP 2.8mm Smart Dual Light 4-in-1 Dome Camera with Microphone, 130dB WDR, IP67 and IK10

Dahua 2MP 2.8mm Smart Dual Light 4-in-1 Dome Camera with Microphone, 130dB WDR, IP67 and IK10

 
Optic calculation
-56%

HAC-HDBW1239RA-IL-A-S3 - The 2MP 4-in-1 Dome Lite camera with 2.8mm fixed lens is the ideal solution for reliable video surveillance, offering Full HD 1080P images and a wide viewing angle. Thanks to Smart Dual Light technology with infrared and white light up to 40 meters , it ensures clear footage both day and night. Real WDR 130 dB and 3D NR noise reduction improve image quality even in high-contrast light conditions, while the built-in microphone allows for audio recording. Compatible with HDCVI, HDTVI, AHD and CVBS and equipped with IP67 and IK10 protection, it guarantees reliability and resistance in any installation. Dahua

Technical data sheet

referencia : HAC-HDBW1239RA-IL-A-S3

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HAC-HDBW1239RA-IL-A-S3 | 4-in-1 Dome Camera with 2.8mm Fixed Lens, 2MP Resolution - Microphone

Dahua

The Dahua Lite 2MP 4-in-1 Dome Camera with 2.8mm fixed lens offers a reliable solution for video surveillance, ensuring Full HD 1080P images and high video quality in any lighting conditions. Thanks to Smart Dual Light technology with infrared and white light up to 40 meters , it ensures detailed footage both day and night. Real WDR 130 dB and 3D NR technology improve image clarity even in the presence of strong light contrasts, while the built-in microphone allows for ambient audio recording. Compatible with HDCVI, HDTVI, AHD and CVBS and protected by IP67 and IK10 certifications, it is an ideal choice for professional installations both indoors and outdoors.

Main specifications:

  • Lens: 2.8mm wide angle
  • Resolution: Full HD 2MP (1920×1080)
  • Lighting: Smart Dual Light up to 40 m
  • Image quality: Real WDR 130 dB and 3D NR
  • Audio: Built-in microphone
  • Video technology: 4 in 1 (HDCVI, HDTVI, AHD, CVBS)
  • Protection: IP67 and IK10 vandal-proof

Further details

✅ Optics :
The 2.8mm fixed lens with a viewing angle of up to 101.8° ensures wide and uniform coverage of the monitored area, making it ideal for monitoring entrances, homes, shops and offices with always detailed images.
✅ Resolution:
The 2MP CMOS sensor with Full HD 1920×1080 resolution delivers sharp and smooth images, ensuring high video quality and clear identification of people and objects in any situation.
✅ Smart Dual Light :
Smart Dual Light technology combines infrared and white light up to 40 meters , automatically selecting the most suitable lighting mode to ensure clear, color images when needed and perfectly visible even in complete darkness.
✅ Microphone:
The built-in microphone with coaxial audio also allows you to capture ambient audio directly through the video cable, improving security and providing a more complete recording of events.
✅ 4-in-1 technology:
The 4-in-1 compatibility with HDCVI, HDTVI, AHD and CVBS makes the camera extremely versatile, allowing integration with DVRs and analog systems of different generations without replacing the existing infrastructure.

Technical data sheet

HAC-HDBW1239RA-IL-A-S3
Technical features
2MP CMOS sensor
Maximum resolution 1080P (1920×1080)
Auto day/night mode with ICR, color and B/W
Minimum illumination of 0.001 lux at F1.0 in color, 30 IRE
Minimum illumination 0.0001 lux at F1.0 in B/W, 30 IRE
0 lux with illuminator on
IR illumination up to 40 m
Automatic and manual illuminator control
3 multi-core illuminators
Fixed lens 2.8 mm multi-core illuminators
M12 mount
F1.0 maximum aperture
101.8° horizontal, 54.4° vertical, 122.1° diagonal angle of view
Minimum focusing distance of 1.1 m
Video
CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
CVBS: 960H in PAL and NTSC
Resolutions 1080P (1920×1080) and 960H (960×576/960×480)
Switchable CVI, TVI, AHD and CVBS video output via BNC port
Functionalities
BLC, HLC, 130 dB real WDR
Auto and area white balance
Automatic and manual gain control
3D NR noise reduction
Motion detection
Lighting Modes Smart IR&WL, WL Mode and IR Mode
Mirror
Off/On privacy mask with 8 rectangular areas
Super Adapt
Audio
Built-in microphone
Coaxial audio
Communication interface
1 BNC port for CVI, TVI, AHD and CVBS video output
Power supply
12V DC ±30% power supply
Maximum power consumption 5.6 W with LED on
Environmental
Operating temperature -40 °C to +60 °C (-40 °C to +60 °C)
Operating humidity less than 95% non-condensing
Storage temperature -40 °C to +60 °C (-40 °F to +60 °C)
Storage humidity less than 95 % non-condensing
Degree of protection IP67
Vandal protection IK10
Basic corrosion protection level
Physical characteristics
Metallic material
Wall, ceiling or vertical mast installation
3AXIS with horizontal adjustment from 0° to 355°, vertical adjustment from 0° to 80°, and rotation from 0° to 355°.
Dimensions of Φ126.0 mm × 100.0 mm
Net weight 0.59 kg
Gross weight 0.76 kg
Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032 and EN 55035
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
