Dahua 8MP 4K 2.7-13.5mm Smart Dual-Light Starlight Dome Camera with Microphone and IP67 4-in-1

Dahua 8MP 4K 2.7-13.5mm Smart Dual-Light Starlight Dome Camera with Microphone and IP67 4-in-1

 
Optic calculation
-56%

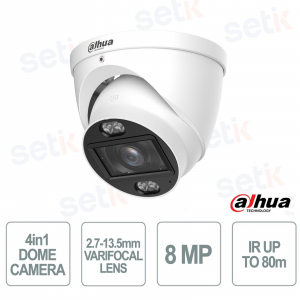

HAC-HDW1801T-Z-IL-A-S3 - The 8MP 4-in-1 Dome Lite camera with 2.7-13.5 mm motorized lens guarantees professional video surveillance with 4K Ultra HD images and maximum flexibility thanks to the motorized zoom , ideal for adapting the frame to any environment. Smart Dual Light technology with infrared up to 80 meters and warm light up to 60 meters , together with the Starlight , Super Adapt , WDR and 3D NR functions, ensures detailed images even in low light conditions. The integrated microphone allows recording of ambient audio, while compatibility with HDCVI, HDTVI, AHD and CVBS and IP67 protection guarantee reliability and resistance for outdoor installations. Dahua

Technical data sheet

referencia : HAC-HDW1801T-Z-IL-A-S3

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HAC-HDW1801T-Z-IL-A-S3 | 4-in-1 Dome Camera with 2.7-13.5mm Varifocal Lens, 8MP Resolution, Microphone

Dahua

The Dahua Lite 8MP 4-in-1 Dome camera with 2.7-13.5 mm motorized lens offers high-performance video surveillance thanks to 4K Ultra HD resolution and motorized zoom , ideal for adapting the frame to any monitoring need. Smart Dual Light technology with infrared up to 80 meters and warm light up to 60 meters , together with Starlight , Super Adapt , WDR and 3D NR functions, guarantees clear and detailed images even in low light conditions. The built-in microphone allows recording of ambient audio, while compatibility with HDCVI, HDTVI, AHD and CVBS and IP67 protection ensure reliability and resistance for professional outdoor installations.

Main specifications:

  • Lens: Motorized varifocal 2.7-13.5 mm
  • Resolution: 4K Ultra HD 8MP (3840×2160)
  • Lighting: Smart Dual Light with IR 80m and warm light 60m
  • Image Quality: Starlight, WDR, 3D NR and Super Adapt
  • Audio: Built-in microphone with coaxial audio
  • Video technology: 4 in 1 (HDCVI, HDTVI, AHD, CVBS)
  • Protection: IP67 for outdoor installations

Further details

✅ Optics :
The 2.7 to 13.5 mm motorized varifocal lens allows you to precisely adjust the viewing angle, from 111.8° to 32.7° , adapting the framing to any video surveillance scenario, from controlling large areas to monitoring specific details.
✅ Resolution:
The 8MP CMOS sensor with 4K Ultra HD resolution (3840×2160) ensures extremely detailed and defined images, offering high video quality for the recognition of people, vehicles and details even at long distances.
✅ Smart Dual Light :
Smart Dual Light technology combines infrared illumination up to 80 meters and warm light up to 60 meters , automatically switching to the most effective mode when an AI XVR detects people or vehicles. The Smart Zoom Lighting function also adjusts the light intensity based on the zoom, ensuring perfectly lit images at all times.
✅ Starlight :
Starlight technology allows you to capture bright, detailed images even in very low light conditions , improving nighttime visibility and maintaining more realistic colors than traditional cameras.
✅ Microphone:
The built-in microphone with coaxial audio transmission records ambient audio up to 8 meters away , allowing you to transmit audio and video simultaneously via a single cable for a more complete and efficient surveillance system.
✅ 4-in-1 technology:
4-in-1 compatibility with HDCVI, HDTVI, AHD and CVBS ensures maximum versatility, allowing the camera to be integrated with DVRs and analog systems of different technologies without modifying the existing wiring.

Technical data sheet

HAC-HDW1801T-Z-IL-A-S3
Technical features
8MP CMOS sensor
Maximum resolution 8MP (3840 × 2160)
PAL electronic shutter speed from 1/25 sec. to 1/100,000 sec.
Minimum illumination 0.01 lux F1.6 color, 0.001 lux F1.6 black & white and 0 lux with illuminator on
IR illumination up to 80 m
Warm light up to 60 m
Automatic and manual illuminator control
4 multi-core illuminators
Day/night with auto ICR, color and black & white
Motorized varifocal lens from 2.7 mm to 13.5 mm
Lens mount Φ14
Maximum aperture F1.6
Horizontal angle of view 32.7° to 111.8°, vertical 18.4° to 58.3° and diagonal 37.5° to 135.2°.
Minimum focusing distance of 1.2 m
Video
CVI output with 8MP@15 ips in PAL
AHD output with 8MP@15 fps in PAL
TVI output with 8MP@15 fps in PAL
CVBS output with 960H@50 fps in PAL
Resolutions 8MP (3840 × 2160) and 960H (960 × 576)
Functionalities
Smart Dual Light with automatic switching between white light and IR when an XVR AI detects targets via perimeter protection or SMD Plus
Smart Zoom Lighting to automatically adjust illuminator brightness according to zoom level
Starlight for image capture in low light conditions
Super Adapt for automatic adjustment of image parameters
BLC, HLC, digital WDR
Automatic white balance
Automatic or manual gain control
3D NR noise reduction
Illumination modes Smart IR&WL in CVI and TVI, WL mode and IR mode
Mirror image available
Audio
Built-in microphone
Audio camera in CVI and TVI
Audio capture up to 8 m
Audio transmission via coaxial cable
Communication interface
BNC port for video output
CVI, TVI, AHD or CVBS switching via DIP switch
HDCVI transmission up to 700 m over coaxial cable for 2MP, 5MP and 8MP HD video
HDCVI transmission up to 300m via UTP cable
Power supply
12V DC ±30% power supply
Maximum power consumption 7.4 W with IR activated
Environmental
Operating temperature -30 °C to +60 °C (-30 °C to +60 °C)
Operating humidity less than 95% non-condensing
Storage temperature -30 °C to +60 °C (-30 °C to +60 °C)
Storage humidity less than 95 % non-condensing
Degree of protection IP67
Corrosion protection level Basic Protection for general use
Physical characteristics
Metal material
Wall, ceiling or vertical mast installation
3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 90°, and rotation from 0° to 360°.
Dimensions Φ122 mm × 108.2 mm
Net weight 0.6 kg
Gross weight 0.76 kg
Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032 and EN 55035
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
