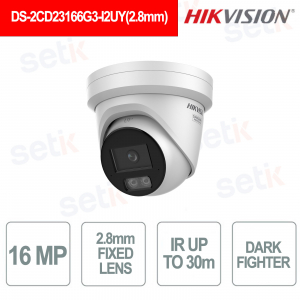

DS-2CD23166G3-I2UY(2.8mm) - is a professional 16 MP turret IP camera, with a maximum resolution of 4608 × 3456 and a 2.8 mm fixed lens with a wide 94.5° horizontal viewing angle. Powered by DarkFighter technology guarantees detailed images even in low light conditions, while the 130 dB real WDR improves performance in high-contrast scenes. Thanks to AcuSense with Deep Learning , it recognizes and classifies people and vehicles, supporting perimeter protection, line crossing, intrusion and face acquisition. It integrates IR illumination up to 30 m , integrated dual array microphone , microSD recording up to 512 GB and IEEE 802.3af PoE power supply. The metal structure with IP67 protection and NEMA 4X anti-corrosion treatment makes it suitable for advanced video surveillance systems for indoor and outdoor environments. Hikvision

Technical Data Sheet

referencia : DS-2CD23166G3-I2UY(2.8mm)

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2CD23166G3-I2UY(2.8mm) – 2.8mm 16MP FIXED LENS TURRET CAMERA - ARTIFICIAL INTELLIGENCE - DEEP LEARNING FUNCTION

Hikvision

The Hikvision DS-2CD23166G3-I2UY is a 16 MP turret IP camera with a resolution of up to 4608 × 3456 and a 2.8 mm fixed lens , ideal for extremely high-detail video surveillance. Powered by DarkFighter technology ensures excellent performance in low-light conditions, while AcuSense with Deep Learning enables intelligent classification of people and vehicles . It integrates real WDR 130 dB , IR up to 30 meters , dual array microphone , microSD support up to 512 GB and PoE power supply. The metal structure with IP67 protection and NEMA 4X anti-corrosion treatment guarantees high reliability even in outdoor environments.

Main features:

  • Resolution: 16 MP, 4608 × 3456
  • Lens: 2.8 mm, FOV 94.5°
  • AI: AcuSense, People and Vehicles
  • Night vision: IR up to 30m
  • Audio: Built-in dual microphone
  • WDR: 130 dB
  • Storage: microSD up to 512 GB
  • Power: IEEE 802.3af PoE
  • Protection: IP67, NEMA 4X

Further details

✅ Fixed optics :
 2.8mm fixed lens with F1.6 aperture , designed to offer a wide 94.5° horizontal , 69.9° vertical and 123.2° diagonal field of view, ideal for effectively monitoring large areas with a single camera.
✅ Resolution:
 1/1.8" Progressive Scan CMOS 16 MP sensor with maximum resolution of 4608 × 3456 pixels , capable of acquiring extremely detailed UHD images for professional video surveillance systems.
✅ Artificial Intelligence:
 Hikvision AcuSense technology based on Deep Learning to intelligently distinguish and classify people and vehicles , improving alarm accuracy and security event control.
✅ DarkFighter:
 T Powered by DarkFighter technology designed to ensure high video performance even in low light conditions , with sensitivity up to 0.0008 Lux in color and IR support for vision in low light.
✅ Dual Microphone:
It integrates an Arrayed Dual-Microphone for clear audio capture, with ambient noise filtering and support for multiple audio codecs, including AAC-LC, MP3, G.711 and G.726.
✅ Deep Learning Function :
 Supports Face Capture and intelligent perimeter protection with line crossing, intrusion, area entry and exit detection, with alarm triggering based on people and vehicle recognition.
✅ PoE :
 It supports IEEE 802.3af, Class 3 PoE power , allowing you to transmit power and data over a single Ethernet cable , with a maximum PoE consumption of 10.5W and simplified installation.
✅  Network:
 It has 10/100 Mbps Ethernet RJ45 port and supports advanced network protocols, ONVIF Profile S/G/T , HTTPS, IPv4/IPv6, RTSP and numerous other standards, as well as compatibility with Hik-Connect, iVMS-4200 and Hik-Central and up to 6 simultaneous live views .

Technical data sheet

DS-2CD23166G3-I2UY(2.8mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 4608 × 3456
Min. Illumination Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2°
Lens Mount M16
Iris Type Fixed
Openings F1.0
Depth of Field 2.9 m to ∞
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
12.5 fps (4608 × 3456)
20 fps (4608 × 2592)
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (4608 × 3456)
20 fps (4608 × 2592)
30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 16 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Audio
Audio Type Mono sound
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Client

iVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser

Free live view plugin: Chrome 80+, Firefox 80+, Edge 89+
Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch

Yes
Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

130 dB
SNR ≥ 52 dB
Privacy Mask

4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Audio Built-in Microphone: Arrayed dual-microphone
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max.10.5W
Material

Cover: Metal, main body: Metal
Dimension

Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension

170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight

Approx. 750 g (1.7 lb.)
With Package Weight

Approx. 1140 g (2.5 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection

IP67: IEC 60529-2013
Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
